HDP10A15
JAN 2010
HDP10A15
Schottky Barrier Rectifiers
Using the Schottky Barrier principle with a Refractory metal capable of high
temperature operation metal. The proprietary barrier technology allows for
reliable operation up to 175℃ junction temperature. Typical application are in
switching Mode Power Supplies such as adaptors, DC/DC converters,
free- wheeling and polarity protection diodes.
150 VOLTS
10 AMPERES
TO-220AB
FEATURES
Low Forward Voltage.
Low Switching noise.
High Current Capacity
Guarantee Reverse Avalanche.
Guard-Ring for Stress Protection.
Low Power Loss & High efficiency.
175℃ Operating Junction Temperature
Low Stored Charge Majority Carrier Conduction.
Plastic Material used Carries Underwriters Laboratory
Flammability Classification 94V-O
ESD: 4KV(Min.) Human-Body Model
In compliance with EU RoHs 2002/95/EC directives
1
2
3
Common cathode
Suffix “C”
Maximum Ratings
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
I
FM
I
FSM
T
J
, T
STG
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
R.M.S Reverse Voltage
Average Rectifier Forward Current
- Total Device (Rated V
R
), T
C
=125℃
Peak Repetitive Forward Current
(Rate V
R
, Square Wave, 20kHz)
Non-Repetitive Peak Surge Current (Surge applied at
rate load conditions half ware, single phase, 60Hz)
Operating and Storage Temperature Range
105
5.0
10
10
125
-65 to +175
V
A
A
A
A
℃
150
V
Value
Units
Electrial Characteristics
Symbol
V
F
Parameter
Maximum Instantaneous Forward Voltage
- ( IF =5.0 Amp TC = 25℃)
- ( IF =5.0 Amp TC = 125℃)
Maximum Instantaneous Reverse Current
- ( Rated DC Voltage, TC = 25℃)
- ( Rated DC Voltage, TC = 125℃)
Value
0.95
0.85
0.01
10
Units
V
I
R
mA
Thermal Resistance Characteristics
Symbol
R
θJC
Junction-to-Case
Parameter
Typ.
--
Max.
4.0
Units
℃/W
◎
SEMIHOW REV.A0,Nov 2010
HDP10A15
Typical Characteristics
AVERAGE FORWARD RECTIFIED CURRENT [Amp]
CASE TEMPERATURE [℃]
NSTANTANEOUS FORWARD CURRENT [Amp]
FORWARD VOLTAGE [V]

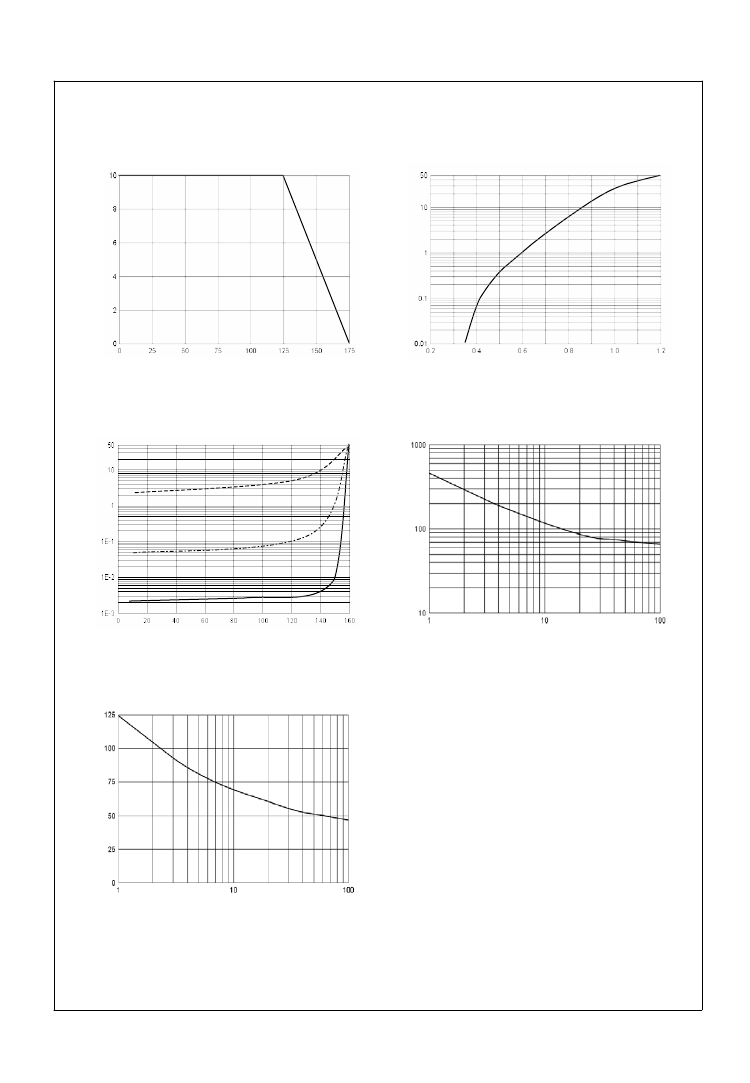

Figure 1. Forward Current Derating Curve
Figure 2. Typical Forward Characterisitics
INSTANTANEOUS REVERSE CURRENT [mA]
T
J
=125℃
T
J
=75℃
T
J
=25℃
JUNCTION CAPACITANCE [pF]
REVERSE VOLTAGE [V]
REVERSE VOLTAGE [V]
Figure 3. Typical Reverse Characterisitics
Figure 4. Typical Junction Capacitance
PEAK FORWARD SURGE CURRENT [Amp]
NUMBER OF CYCLES AT 60 Hz
Figure 5. Peak Forward Surge Current
◎
SEMIHOW REV.A0,Nov 2010
