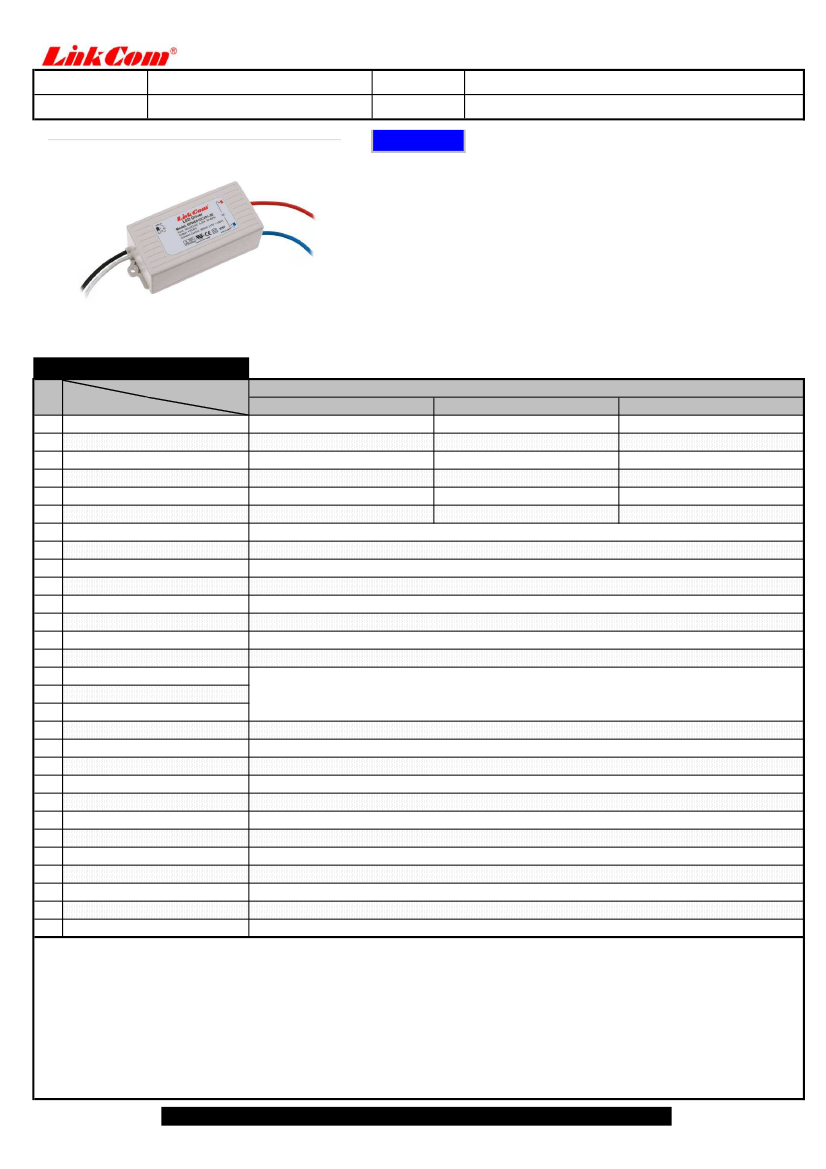

LinkCom Manufacturing Co., Ltd
Model NO.
Part NO.
BPHE010C551
PLKBPHE010C551
Model Name
SIZE
LED Driver
97.5 * 40 * 30.5 mm【3.84 * 1.57 * 1.2 inch】
FEATURES
◆
AC Input 90~264Vac
◆
Protection: SCP / OTP / OVP
◆
High Operating ambient Temp: -20℃ ~ +60℃
◆
Safety: TUV
◆
EMC: Meet CE
◆
Comply with Indoor/Outdoor Waterproof (IP 67)
◆
Dimension (L*W*H): 97.5 * 40 * 30.5 mm
◆
Dimension (L*W*H): 3.84 * 1.57 * 1.2 inch
◆
ROHS Compliant
Module : BPHE010C551
*(9)
MODEL
SPECIFICATION
DC OUTPUT VOLTAGE (V)
PRESET ACCURACY (%) *(8)
OUTPUT CURRENT(A) *(5)
O/P NOISE (P-P, V) *(3)
LINE REGULATION (%) *(7)
LOAD REGULATION (%) *(6)
DC OUTPUT POWER
EFFICIENCY(typ @Full Load)
TURN ON DELAY TIME, Softstart
INPUT VOLTAGE RANGE
INPUT FREQUENCY
INRUSH CURRENT (typ)
AC CURRENT
LEAKAGE CURRENT
SHORT CIRCUIT PROTECTION
OVER TEMP. PROTECTION
OVER V, PROTECTION
SCP, OTP, OVP will restart automatically after the fault condition is removed
-20 to +60℃@full load
-40 to +80℃
10 to +95%
0.03% /
℃
(0-50℃, typ)
TUV EN61347-2-13
Meet CE EN55015
97.5 * 40 * 30.5 mm【3.84 * 1.57 * 1.2 inch】
10
10
9.9 W
70%
3200ms,2000ms at full load 115VAC/230VAC
90-264VAC, 127-373VDC, Normal：100-240VAC
Range:47-63Hz, Normal：50-60Hz
COLD START 40A @ 230VAC
0.3A/115VAC
<0.7mA/264VAC
0.504
min.
norm.
18
10
0.56
0.616
0.25
*,# =SEE NOTES BELOW
BPHE010C551
max.
*
*
*
*
*
*
OPERATING TEMP.*(4)
STORAGE TEMPERATURE
RELATIVE HUMIDITY
TEMP. COEFFICIENT
SAFETY
EMI

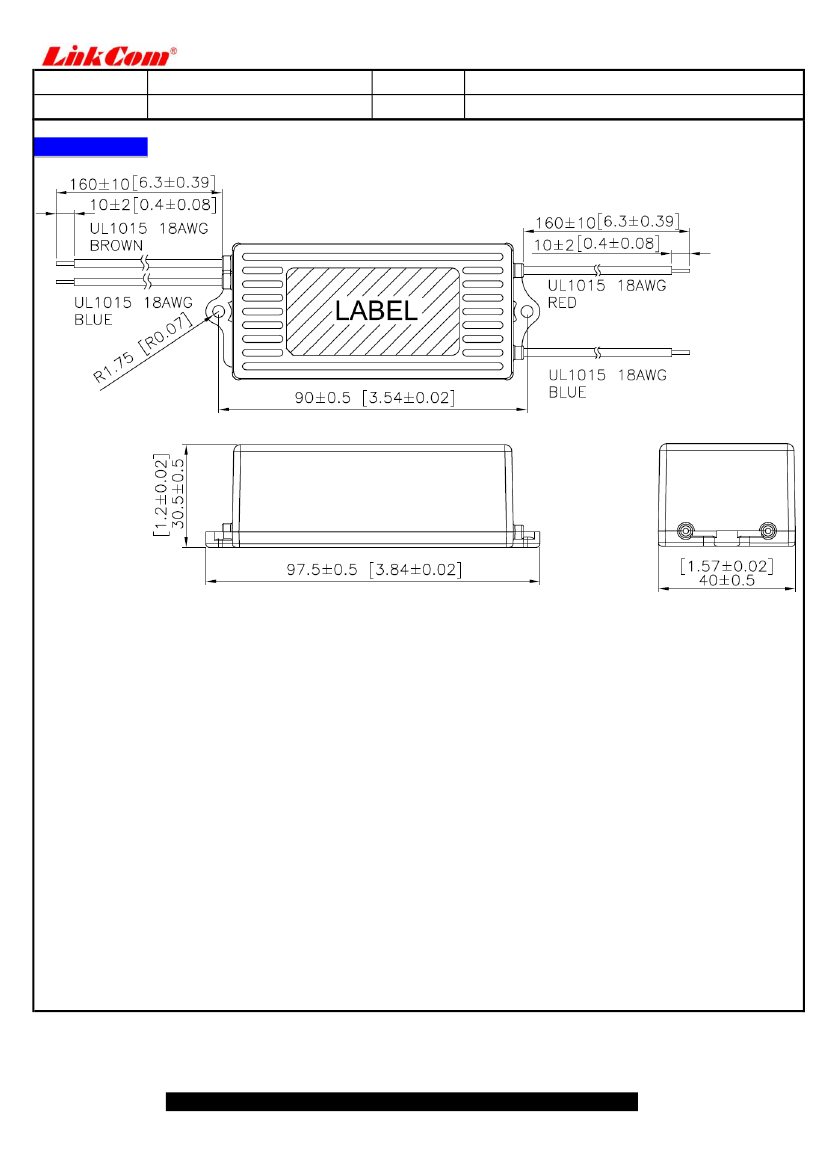

DIMENSIONS(L*W*H)
NOTES：(1)All parameters not specially mentioned are measured 230VAC input.
(2)All specifications Typical @25℃, unless otherwise noted, at normal line and load.
(3)Ripple and Noise measured directly at pins/terminals at nom. load, @20MHz bandwidth.
(4)Specified for free-air convection cooling.
(5)Minimum load is NOT required for proper operation .
(6)Load regulation measured from 20% to Full load.
(7)Line regulation measured from 100VAC to 240VAC.
(8)Preset accuracy measured at normal load, 120VAC input.
(9)100% Production Tested.
※
Reference
www.linkcom.com.tw
