FP5325 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5325

FP5325: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size59KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5325 Overview

RF AMPLIFIER MODEL

FP5325 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	19.5 dB
Maximum input power (CW)	18 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	100 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ
power supply	12 V
RF/Microwave Device Types	NARROW BAND MEDIUM POWER
Maximum slew rate	95 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

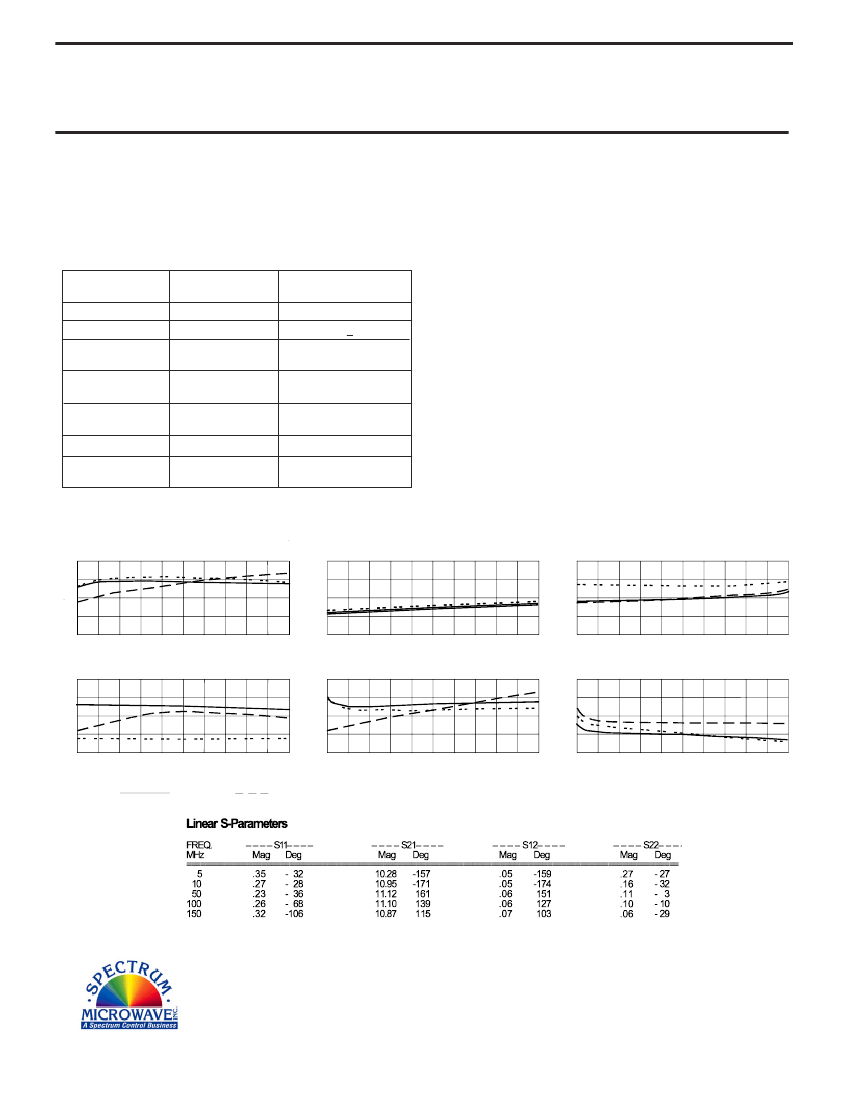

RF AMPLIFIER

MODEL

TM5325

Features

Low Noise Figure: 2.0 dB Typical

High Output Power: +24 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5325, 4 Pin TO-8 (T4)

TN5325, 4 Pin Surface Mount (SM3)

FP5325, 4 Pin Flatpack (FP4)

BX5325, Connectorized Housing (H1)

PN5325,

4 Pin Surface Mount

(SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +58 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +52 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5-125 MHz

20.5

+24

-24

1.70:1

1.35:1

2.0

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

10-100 MHz

20.5 + 1.0

+22.5 Min.

-23 Max.

2.2:1 Max.

2.0:1 Max.

3.0 Max.

+12 Min.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 15 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 100 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

3.0

2.0

1.0

Noise Figure (dB)

Start 10 MHz

Stop 100 MHz

Start 10 MHz

Stop 100 MHz

+26

+25

+24

+23

+22

Start 10 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 100 MHz

Start 10 MHz

Stop 100 MHz

Start 10 MHz

Stop 100 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/18/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5325 Related Products

	FP5325	BX5325	PN5325	TM5325	TN5325
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
package instruction	FP4, FLATPACK-4	H1	SM11, SURFACE MOUNT PACKAGE-4	T4, TO-8, 4 PIN	MODULE,4LEAD,.45SQ
Reach Compliance Code	compli	compliant	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	19.5 dB	19.5 dB	19.5 dB	19.5 dB	19.5 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2	2
Maker	API Technologies	API Technologies	API Technologies	API Technologies	-
Number of functions	1	-	1	1	1
Number of terminals	4	-	4	4	4
Package body material	METAL	-	METAL	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ	-	MODULE,4LEAD,.37SQ	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	12 V	-	12 V	12 V	12 V
Maximum slew rate	95 mA	-	95 mA	95 mA	95 mA
