FP5338PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size74KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5338PM Overview

RF AMPLIFIER MODEL

FP5338PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	150 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM5338PM

Features

!

Superior Phase Noise Performance

!

High Output Power: +25 dBm Typical

!

Low Noise Figure: 2.7 dB Typical

!

Operating Temp. -55 ºC

to +85

ºC

!

Environmental Screening Available

Available as:

TM5338PM, 4 Pin TO-8 (T4)

TN5338PM, 4 Pin Surface Mount (SM3)

FP5338PM, 4 Pin Flatpack (FP4)

BX5338PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +50 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +44 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)

Maximum Ratings

MIN/MAX

Ta = -55

ºC

to +85

ºC

5 - 150 MHz

14.0 Min.

+23.0 Min.

-19 Max.

2.0:1 Max.

3.5 Max.

+12

100 Max.

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise Figure (dB)

Power

Vdc

mA

VSWR

TYPICAL

Ta= 25

ºC

5 - 150 MHz

15.0

+25.0

-20

<1.50:1

<1.25:1

2.7

+12

88

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature .................................-62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +15 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-162

-172

-175

-178

Guarantee (min.)

-158

-168

-172

-174

*

Note: Care should always be taken to effectively ground the case of each unit.

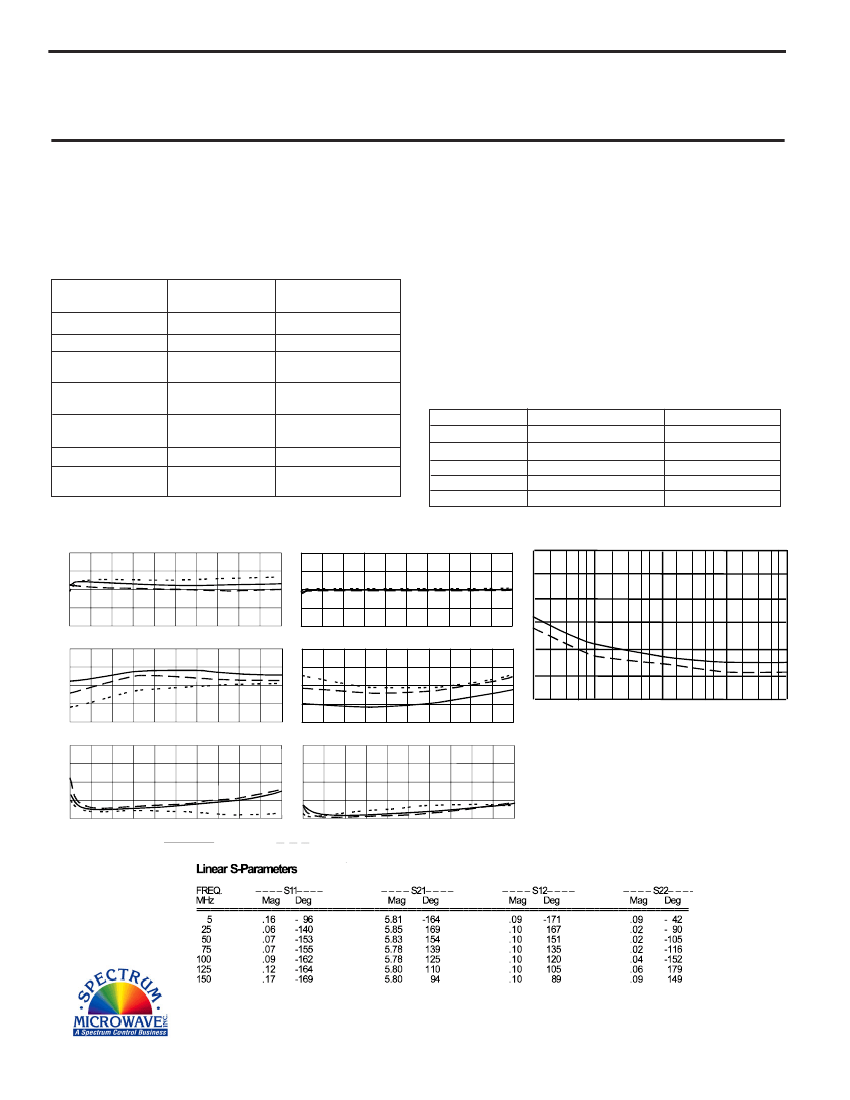

Typical Performance Data

17

16

15

14

13

+27

+26

+25

+24

+23

2.0

1.5

1.0

Start 5 MHz

Gain (dB)

0

- 10

- 20

- 30

- 40

4

3

2

Reverse Isolation (dB)

-130

-140

-150

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Stop 150 MHz

Start 5 MHz

Noise Figure (dB)

-160

Stop 150 MHz

-170

-180

-190

100

1k

10k

100k

1M

Input VSWR

Stop 150 MHz

Start 5 MHz

2.0

1.5

1.0

Output VSWR

Stop 150 MHz

_________Guarantee __ __ __ __Typical

Start 5 MHz

Stop 150 MHz

Start 5 MHz

Stop 150 MHz

!

Agilent ES5500 System

Residual Phase Noise Test Conditions:

!

Carrier Frequency: 80 MHz

!

Power Output +23.5 dBm

!

Temperature: 25

o

C

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC
