FP5347 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5347

FP5347: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size42KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5347 Overview

RF AMPLIFIER MODEL

FP5347 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1100 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

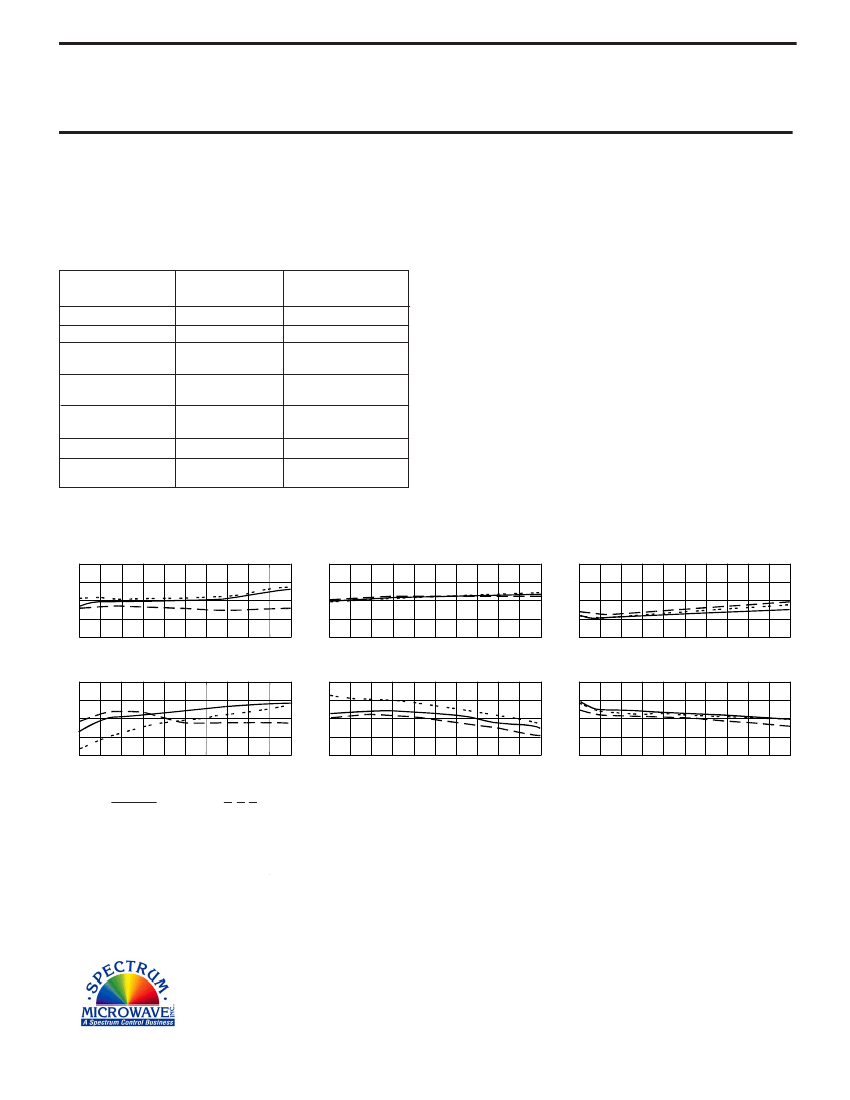

RF AMPLIFIER

MODEL

TM5347

Features



Low Noise Figure: <3.5 dB Typical

Wide Frequency Range

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5347, 4 Pin TO-8 (T4)

TN5347, 4 Pin Surface Mount (SM3)

FP5347, 4 Pin Flatpack (FP4)

BX5347, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +39 dBm (Typ.)

Second Order Two Tone Intercept Point........ +33 dBm (Typ.)

Third Order Two Tone Intercept Point............ +23 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

20-1100 MHz

+11

-18

<1.6:1

<3.5

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

20-1100 MHz

13.0 Min.

+9.0 Min.

-17 Min.

<2.0:1 Max.

2.0:1 Max.

4.0 Max.

+12 Min.

29 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 15 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.2 Watt (3

μsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 20 MHz

Stop 1100 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 20 MHz

Stop 1100 MHz

Start 20 MHz

Noise Figure (dB)

Stop 1100 MHz

+14

+13

+12

+11

+10

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 20 MHz

Stop 1100 MHz

Start 20 MHz

Stop 1100 MHz

Start 20 MHz

Stop 1100 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/22/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5347 Related Products

	FP5347	BX5347	TM5347	TN5347
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	-	API Technologies
Reach Compliance Code	compli	compliant	-	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	-	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	13 dB	13 dB	-	13 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	1100 MHz	1100 MHz	-	1100 MHz
Minimum operating frequency	20 MHz	20 MHz	-	20 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	-	2
