FP5670 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5670

FP5670: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5670 Overview

RF AMPLIFIER MODEL

FP5670 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM5670

Features

Low Noise Figure: 2.0 dB Typical

+5 Volt Operation

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5670, 4 Pin TO-8 (T4)

TN5670, 4 Pin Surface Mount (SM3)

FP5670, 4 Pin Flatpack (FP4)

BX5670, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +38 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +33 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +28 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

20-250 MHz

8.2

+15.5

-11

1.35:1

1.20:1

2.0

MIN/MAX

Ta = -55 ºC to +85 ºC

20-250 MHz

7.0 Min.

+13.5 Min.

-10 Max.

2.0:1 Max.

3.0 Max.

+5 Min.

30 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

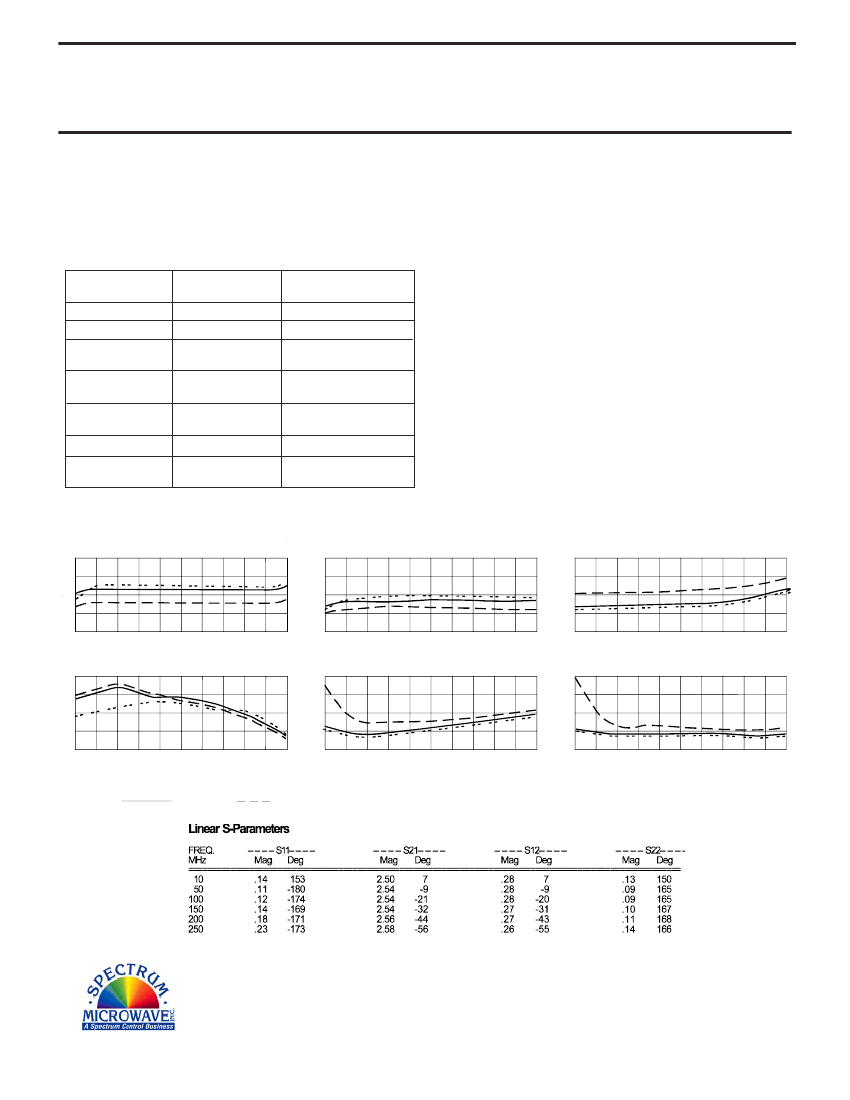

Typical Performance Data

Start 20 MHz

Stop 250 MHz

Gain (dB)

- 5

- 10

- 15

- 20

Reverse Isolation (dB)

Noise Figure (dB)

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

+17

+16

+15

+14

+13

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

Start 20 MHz

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/24/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5670 Related Products

	FP5670	BX5670	TM5670	TN5670
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	7 dB	7 dB	7 dB	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-
Maximum operating frequency	250 MHz	250 MHz	250 MHz	-
Minimum operating frequency	20 MHz	20 MHz	20 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
