FP6012PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6012PM

FP6012PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size171KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6012PM Overview

RF AMPLIFIER MODEL

FP6012PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

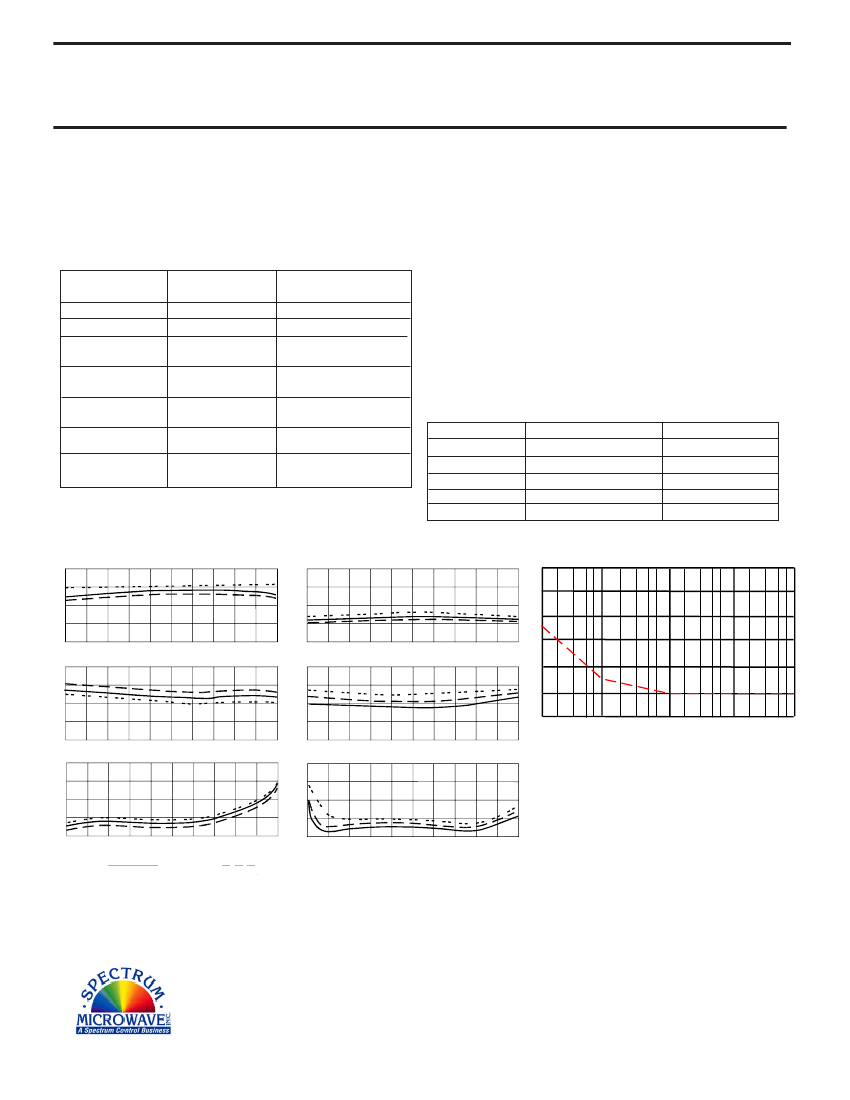

RF AMPLIFIER

MODEL

TM6012PM

Features

Superior Phase Noise Performance

High Output Power: +23 dBm Typical

High Third Order Intercept: +36 dBm Typical

Lower +12 volt Supply

Environmental Screening Available

Available as:

TM6012PM, 4 Pin TO-8 (T4)

TN6012PM, 4 Pin Surface Mount (SM3)

FP6012PM, 4 Pin Flatpack (FP4)

BX6012PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +56 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +50 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

(Absolute) Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +15 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 500 MHz

14.5

+23

-18

<1.4:1

<1.2:1

4.6

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13.0 Min.

+20 Min.

-15 Max.

2.0:1 Max.

6.0 Max.

+12

95 Max.

MTBF Calculation for Ground Benign Environment

25 ºC

.................................................3,721,883.58 hrs

Guaranteed @

25 ºC

Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-160

-175

-177

-180

Guaranteed

-152

-168

-172

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

+24

+23

+22

+21

+20

Start

2.0

1.5

1.0

Start

5 MHz

Start 5 MHz

Gain (dB)

+ 10

- 10

- 20

- 30

2.0

1.5

1.0

Start

Reverse Isolation (dB)

-130

-140

-150

-160

-170

-180

-190

100

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

Stop 500 MHz

Start 5 MHz

Noise Figure (dB)

Stop 500 MHz

10 k

100 k

Input VSWR

Stop 500 MHz

Start 5 MHz

Output VSWR

Stop 500 MHz

__ __ __ __Typical

Test

Residual Phase Noise

MHz

Conditions

Carrier Frequency: 500

Power Output: +23 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 500 MHz

5 MHz

Stop 500 MHz

5 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Linear S-Parameters

– – – – S12– – – –

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S22– – –

Mag

MHz

Deg

Mag

Deg

Mag

Deg

Mag

Deg

======================================================================================

.23

-41

5.86

-163

.08

.27

100

.13

5.46

159

.11

.05

200

.40

5.51

137

.12

.04

300

.58

-31

5.50

114

.14

.04

400

.10

-91

5.53

.15

-1

.08

500

.20

-137

5.45

.17

-9

.17

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

4/09/09

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6012PM Related Products

	FP6012PM	BX6012PM	TM6012PM	TN6012PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	-	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	13 dB	13 dB	-	13 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	500 MHz	500 MHz	-	500 MHz
Minimum operating frequency	5 MHz	5 MHz	-	5 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	-	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	-	2
