FP6121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6121

FP6121: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6121 Overview

RF AMPLIFIER MODEL

FP6121 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	MODULE,4LEAD(UNSPEC)
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	9.4 dB
Maximum input power (CW)	17 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	200 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	70 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

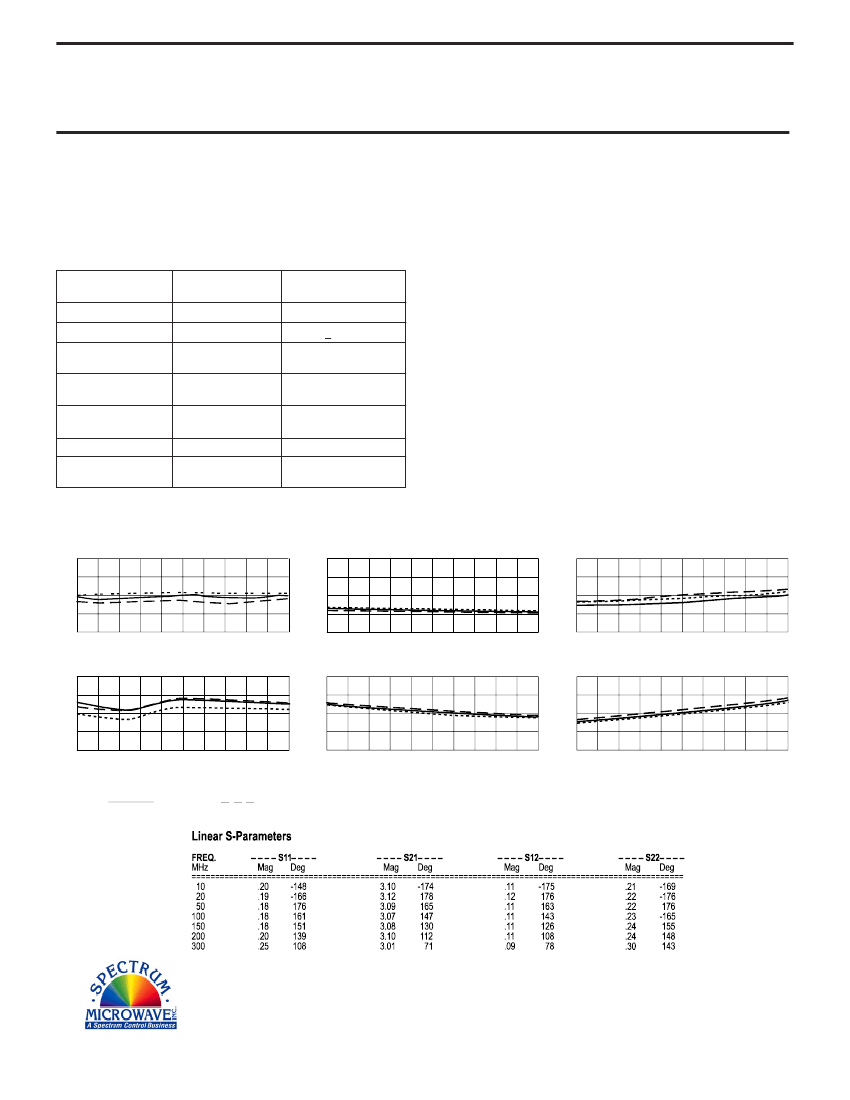

RF AMPLIFIER

MODEL

TM6121

Features

High IP3:+38 dBm Typical

Low Noise Figure: <3 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6121, 4 Pin TO-8 (T4)

TN6121, 4 Pin Surface Mount (SM3)

FP6121, 4 Pin Flatpack (FP4)

BX6121, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +60 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +55 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +38 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

20 - 200 MHz

+20

-18

<1.75:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 200 MHz

10 + 0.6 Min.

+18 Min.

-17 Max.

2.0:1 Max.

4.0 Max.

+15

70 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 17 dBm

Short Term RF Input Power.... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 20 MHz

Stop 200 MHz

Reverse Isolation (dB)

- 5

- 10

- 15

- 20

- 25

Start 20 MHz

Stop 200 MHz

Noise Figure (dB)

Start 20 MHz

Stop 200 MHz

1 dB Comp. (dBm)

+22

+21

+20

+19

+18

Start 20 MHz

Stop 200 MHz

Input VSWR

2.0

1.5

1.0

Start 20 MHz

Stop 200 MHz

Output VSWR

2.0

1.5

1.0

Start 20 MHz

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/22/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6121 Related Products

	FP6121	BX6121	TM6121	TN6121
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	9.4 dB	9.4 dB	9.4 dB	9.4 dB
Maximum input power (CW)	17 dBm	17 dBm	17 dBm	17 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
package instruction	MODULE,4LEAD(UNSPEC)	-	CAN4,.3	MODULE,4LEAD,.45
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)	-	CAN4,.3	MODULE,4LEAD,.45
power supply	15 V	-	15 V	15 V
Maximum slew rate	70 mA	-	70 mA	70 mA
