FP6131 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6131

FP6131: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6131 Overview

RF AMPLIFIER MODEL

FP6131 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	9 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

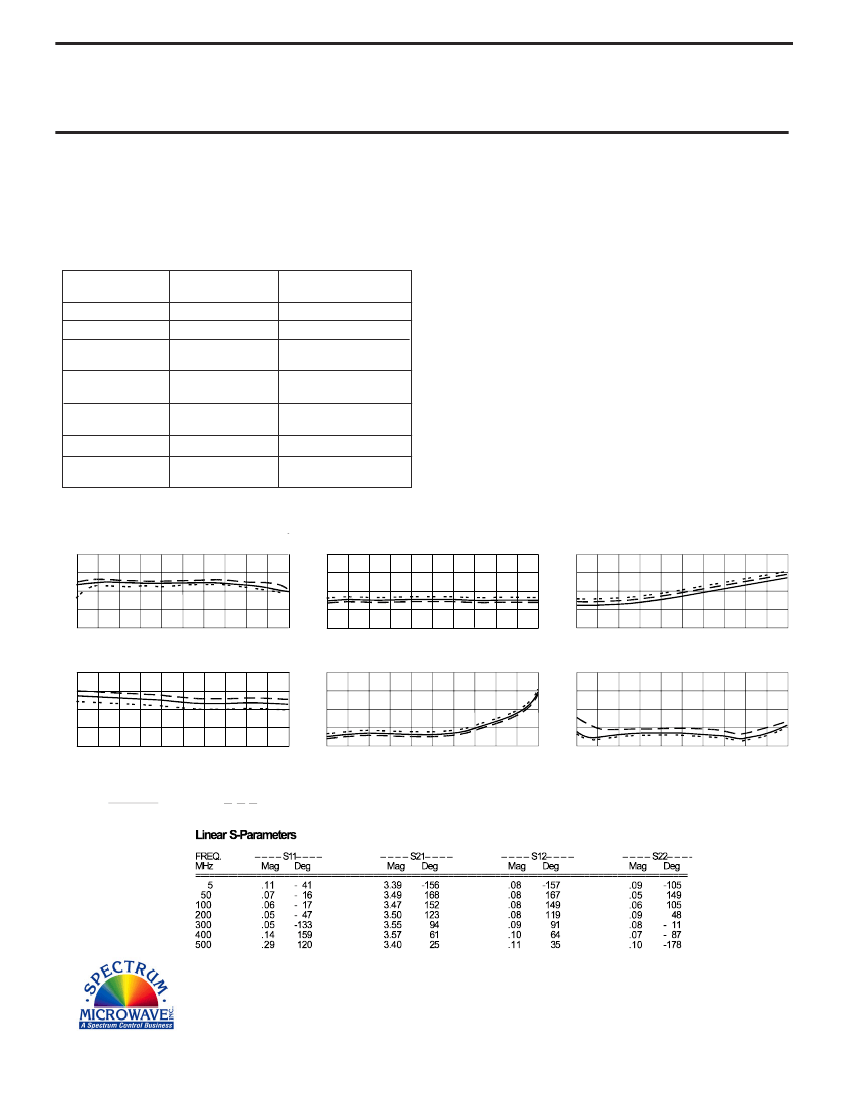

RF AMPLIFIER

MODEL

TM6131

Features

High IP3: +37 dBm Typical

High Output Power: +20 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6131, 4 Pin TO-8 (T4)

TN6131, 4 Pin Surface Mount (SM3)

FP6131, 4 Pin Flatpack (FP4)

BX6131, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+56 dBm (Typ.)

Second Order Two Tone Intercept Point.........+50 dBm (Typ.)

Third Order Two Tone Intercept Point............ +37 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

5 - 500 MHz

10.3

+20

-22

1.25:1

4.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 500 MHz

9 Min./11 Max.

+18 Min.

-20 Max.

2.0:1 Max.

6.5 Max.

+15

70 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 500 MHz

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Noise Figure (dB)

Stop 500 MHz

1 dB Comp. (dBm)

+22

+21

+20

+19

+18

Start 10 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 10 MHz

Input VSWR

Output VSWR

2.0

1.5

1.0

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/22/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6131 Related Products

	FP6131	BX6131	TM6131	TN6131
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	-	API Technologies	API Technologies
