FP6134 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6134

FP6134: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size63KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6134 Overview

RF AMPLIFIER MODEL

FP6134 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.5

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6134

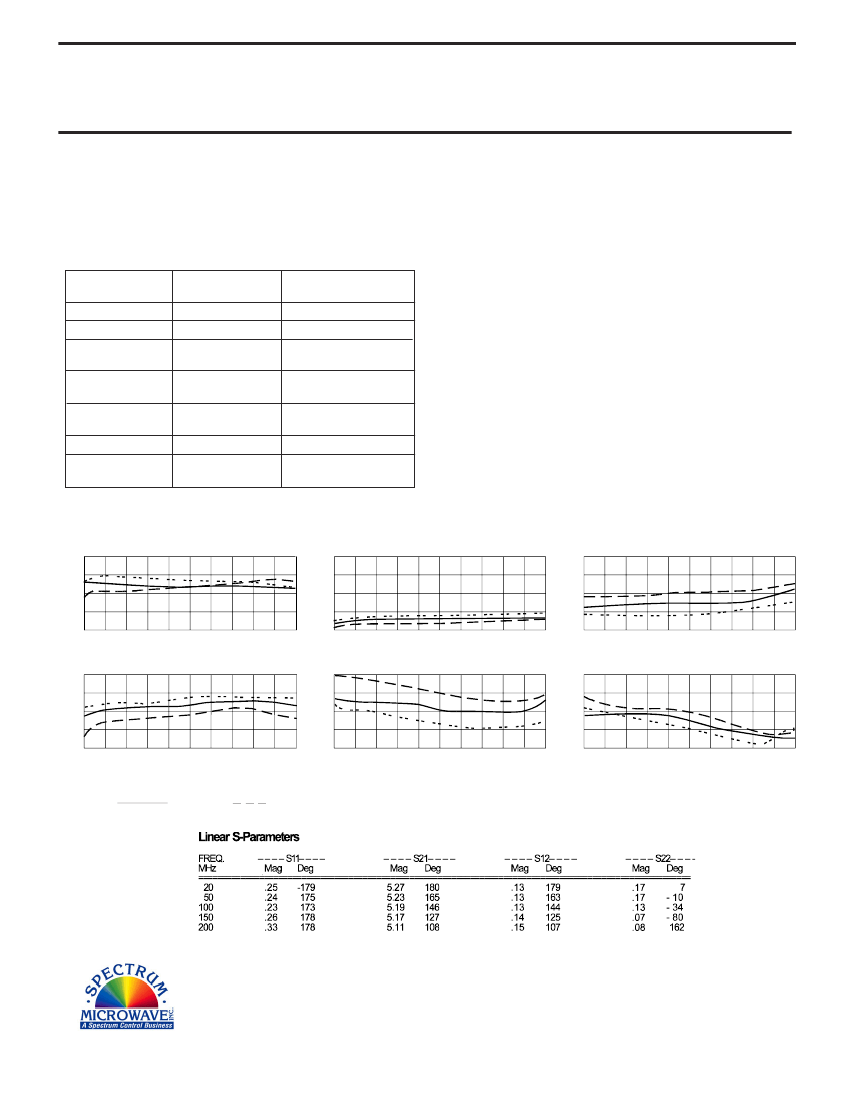

Features

High Output Power: +26 dBm Typical

High IP3: +39 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6134, 4 Pin TO-8 (T4)

TN6134, 4 Pin Surface Mount (SM3)

FP6134, 4 Pin Flatpack (FP4)

BX6134, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+58 dBm (Typ.)

Second Order Two Tone Intercept Point.........+54 dBm (Typ.)

Third Order Two Tone Intercept Point.............+39 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

20 - 200 MHz

14.3

+26

-17

1.60:1

1.35:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 200 MHz

12.5 Min.

+23 Min.

-15 Max.

2.5:1 Max.

6.0 Max.

+15

110 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 20 MHz

Stop 200 MHz

Reverse Isolation (dB)

- 5

- 10

- 15

- 20

Start 20 MHz

Stop 200 MHz

Noise Figure (dB)

Start 20 MHz

Stop 200 MHz

1 dB Comp. (dBm)

+27

+26

+25

+24

+23

Start 20 MHz

Stop 200 MHz

Input VSWR

2.0

1.5

1.0

Start 20 MHz

Stop 200 MHz

Output VSWR

2.0

1.5

1.0

Start 20 MHz

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/22/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6134 Related Products

	FP6134	BX6134	TM6134	TN6134
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	12.5 dB	12.5 dB	12.5 dB	12.5 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.5	2.5	2.5	2.5
package instruction	FP-4	-	T4, TO-8, 4 PIN	SM3, 4 PIN
