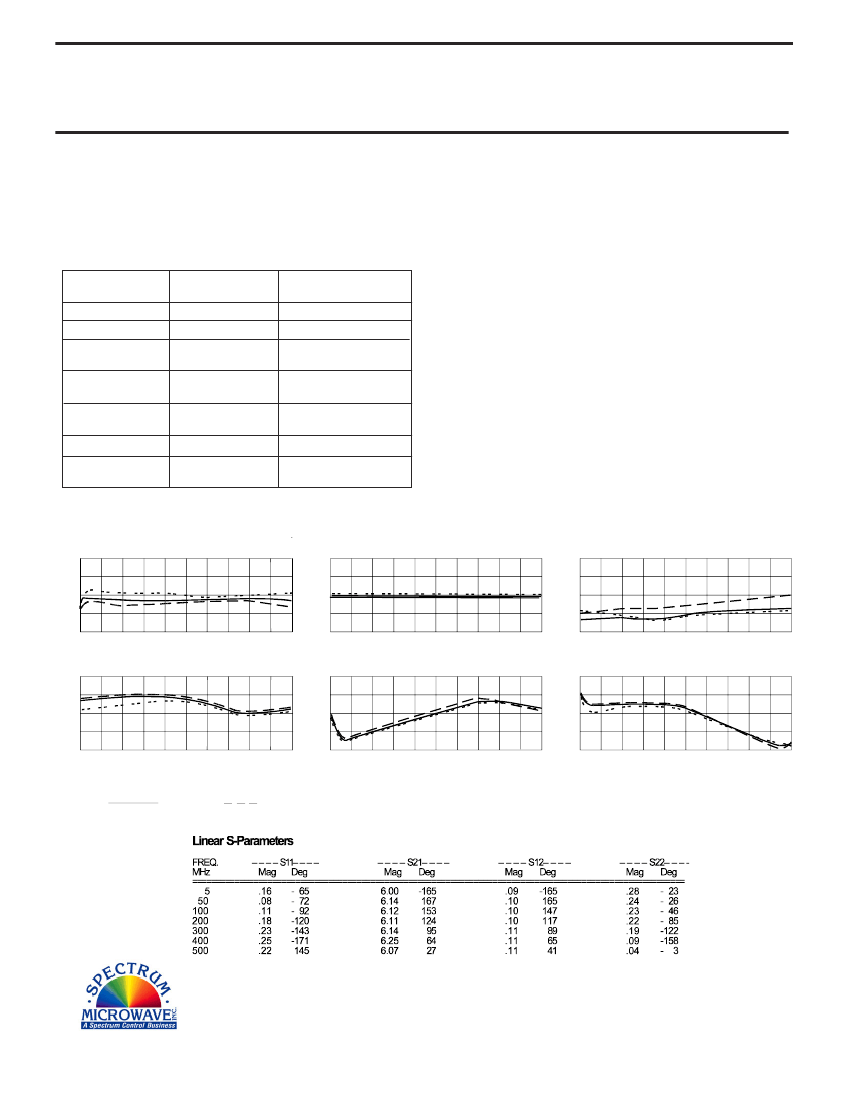

RF AMPLIFIER

MODEL

TM6143

Features

High Gain: 15.7 dB Typical

Low Noise Figure: 1.6 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6143, 4 Pin TO-8 (T4)

TN6143, 4 Pin Surface Mount (SM3)

FP6143, 4 Pin Flatpack (FP4)

BX6143, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+33 dBm (Typ.)

Second Order Two Tone Intercept Point.........+28 dBm (Typ.)

Third Order Two Tone Intercept Point.............+20 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5 - 500 MHz

15.7

+7.5

-19

1.7:1

1.6:1

1.6

+15

14.5

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

14.5 Min.

+5.0 Min.

-16 Max.

2.5:1 Max.

2.5 Max.

+15

16 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 500 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

+ 9

+ 8

+ 7

+ 6

+ 5

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
