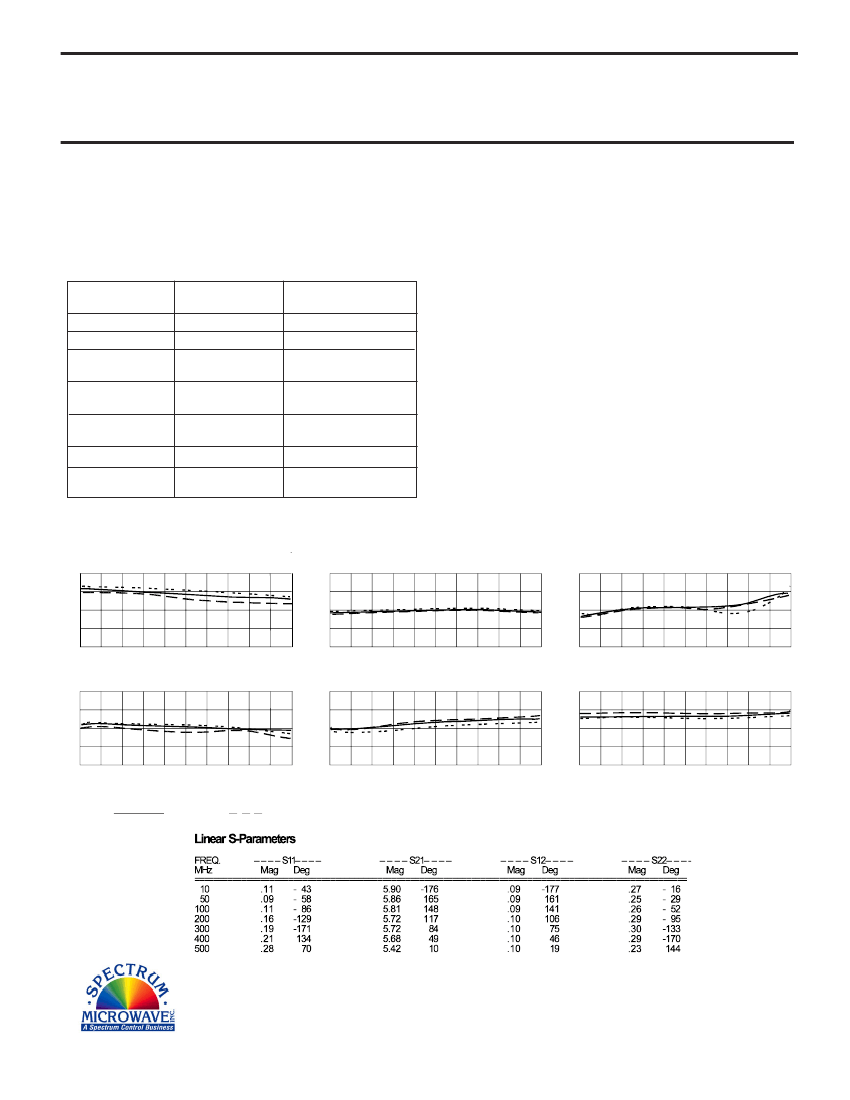

RF AMPLIFIER

MODEL

TM6152

Features

5 Volt Bias

Low Noise Figure: 2.9 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6152, 4 Pin TO-8 (T4)

TN6152, 4 Pin Surface Mount (SM3)

FP6152, 4 Pin Flatpack (FP4)

BX6152, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +36 dBm (Typ.)

Second Order Two Tone Intercept Point........ +28 dBm (Typ.)

Third Order Two Tone Intercept Point............ +21 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 500 MHz

-19

1.7:1

2.9

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13 Min.

6.5 Min.

-18 Max.

2.0:1 Max.

4.5 Max.

+5 Min.

20 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 125 ºC

Storage Temperature ............................... -62ºC to + 150 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 9 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 5 MHz

Stop 500 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 5 MHz

Stop 500 MHz

Noise Figure (dB)

5.0

4.0

3.0

2.0

1.0

Start 5 MHz

Stop 500 MHz

1 dB Comp. (dBm)

+10

Start 5 MHz

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 5 MHz

Output VSWR

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

11/02/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
