FP6153: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size73KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6153 Overview

RF AMPLIFIER MODEL

FP6153 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1800 MHz
Minimum operating frequency	300 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5
Base Number Matches	1

Preview

Download Datasheet

View All

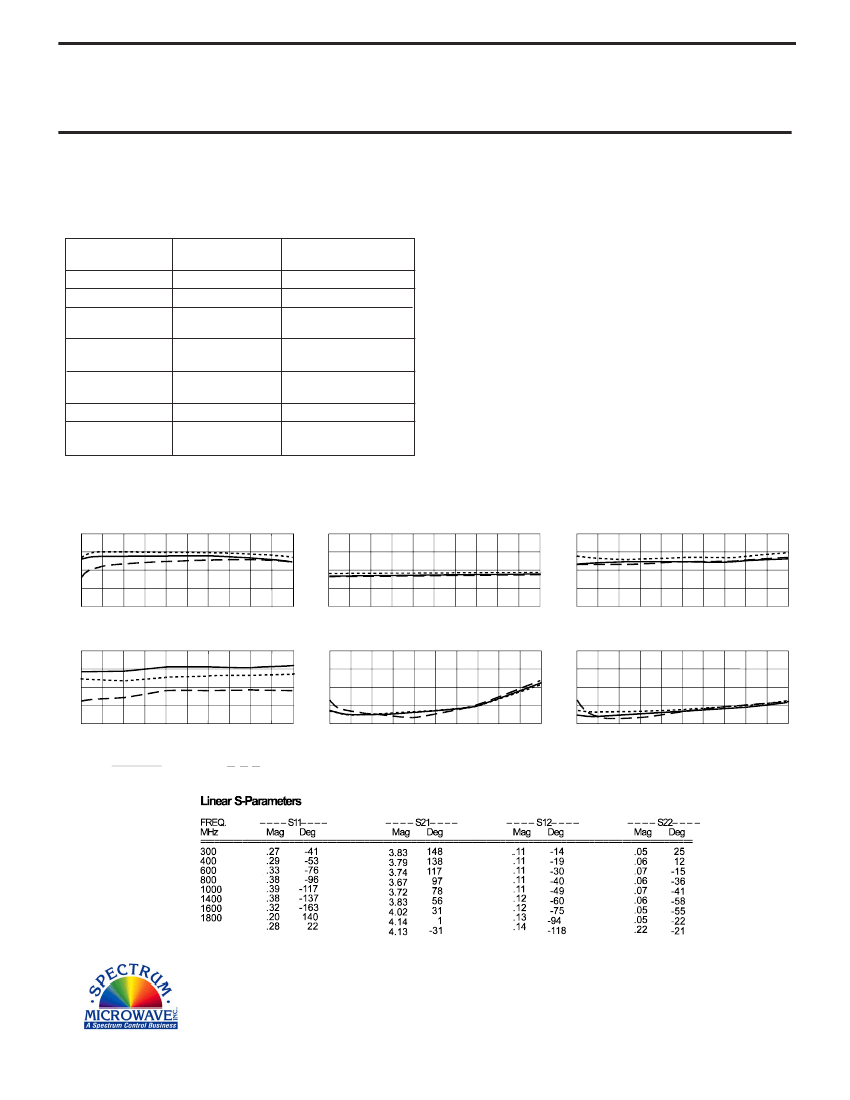

RF AMPLIFIER

MODEL

TM6153

Features

GaAs FET: Low Noise Figure :< 3 dB Typical

Medium Output Power:>+7 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

300 - 1800 MHz

11.5

-17

<2.5:1

<2.0:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

300 - 1800 MHz

10.5 Min.

+6 Min.

-15 Max.

3.0:1 Max.

2.5:1 Max.

4.0 Max.

+15

20 Max.

Available as:

TM6153, 4 Pin TO-8 (T4)

TN6153, 4 Pin Surface Mount (SM3)

FP6153, 4 Pin Flatpack (FP4)

BX6153, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+28 dBm (Typ.)

Second Order Two Tone Intercept Point.........+22 dBm (Typ.)

Third Order Two Tone Intercept Point.............+18 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 300 MHz

Stop 1800 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 300 MHz

Stop 1800 MHz

Start 300 MHz

Stop 1800 MHz

+10

Start 300 MHz

1 dB Comp. (dBm)

3.0

2.0

1.0

Input VSWR

3.0

2.0

1.0

Output VSWR

Stop 1800 MHz

Start 300 MHz

Stop 1800 MHz

Start 300 MHz

Stop 1800 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/11/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6153 Related Products

	FP6153	BX6153	TM6153	TN6153
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	10.5 dB	10.5 dB	10.5 dB	10.5 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	1800 MHz	1800 MHz	1800 MHz	1800 MHz
Minimum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5	2.5	2.5	2.5
Maker	-	API Technologies	API Technologies	API Technologies
