FP6160-4: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size517KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6160-4 Overview

RF AMPLIFIER MODEL

FP6160-4 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=20DBM
structure	COMPONENT
Gain	26 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	600 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

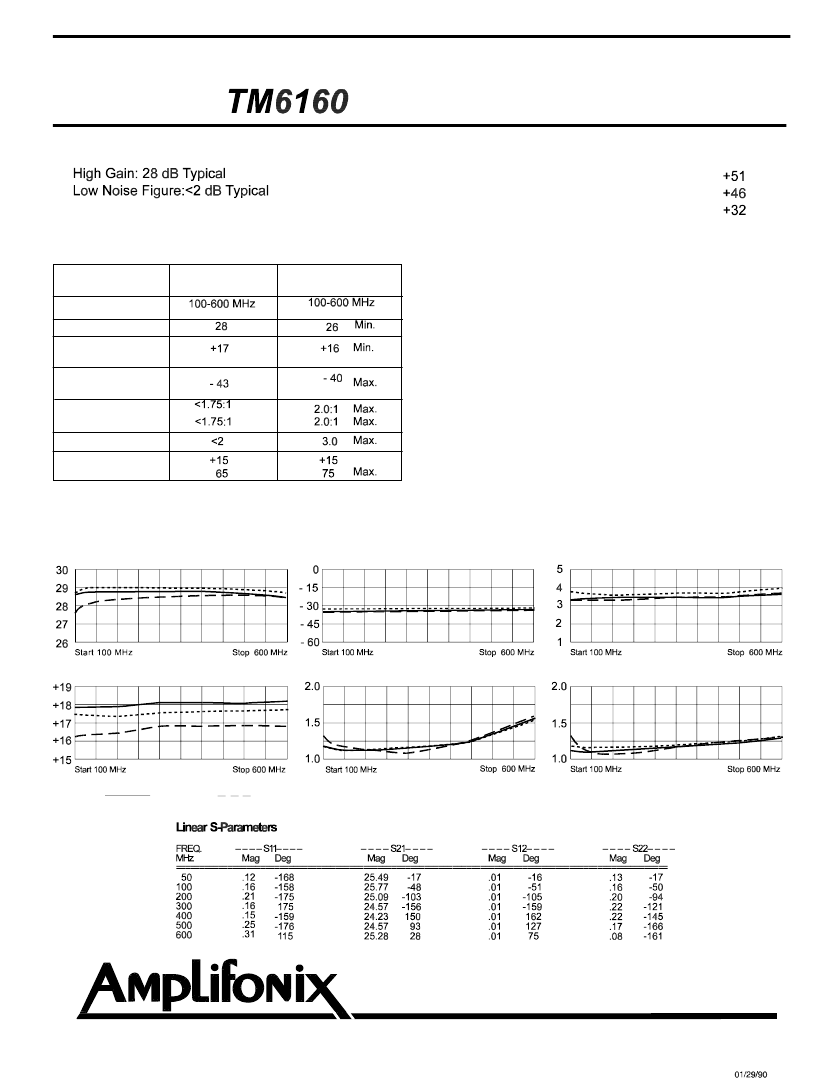

RF AMPLIFIER

MODEL

Features

■

Operating Temp. - 55 ºC

to + 85

ºC

■

Environmental Screening Available

Available as:

TM6160, 4 Pin TO-8 (T4)

TN6160-3, 4 Pin Surface Mount (SM3)

FP6160-4, 4 Pin Flatpack (FP4)

BX6160,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ............

+

Second Order Two Tone Intercept Point .............

+

Third Order Two Tone Intercept Point .................

+

(Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

Maximum Ratings

TYPICAL

Ta= 25 ºC

MIN/MAX

Ta = -55 ºC to +85 ºC

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power .................................. +10 dBm

Short Term RF Input Power .............................. 20 Milliwatts

................................................................. (1 Minute Max.)

Maximum Peak Power ................................... 0.1 Watt

(3

µsec

Max.)

Typical Performance Data

Gain (dB)

Reverse Isolation (dB)

Noise Figure (dB)

1 dB Comp. (dBm)

Input VSWR

Output VSWR

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

FP6160-4 Related Products

	FP6160-4	TM6160	TN6160-3
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM	I/P POWER-MAX (PEAK)=20DBM
structure	COMPONENT	COMPONENT	COMPONENT
Gain	26 dB	26 dB	26 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm
Maximum operating frequency	600 MHz	600 MHz	600 MHz
Minimum operating frequency	100 MHz	100 MHz	100 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
