FP6180 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6180

FP6180: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size68KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6180 Overview

RF AMPLIFIER MODEL

FP6180 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	15.5 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6180

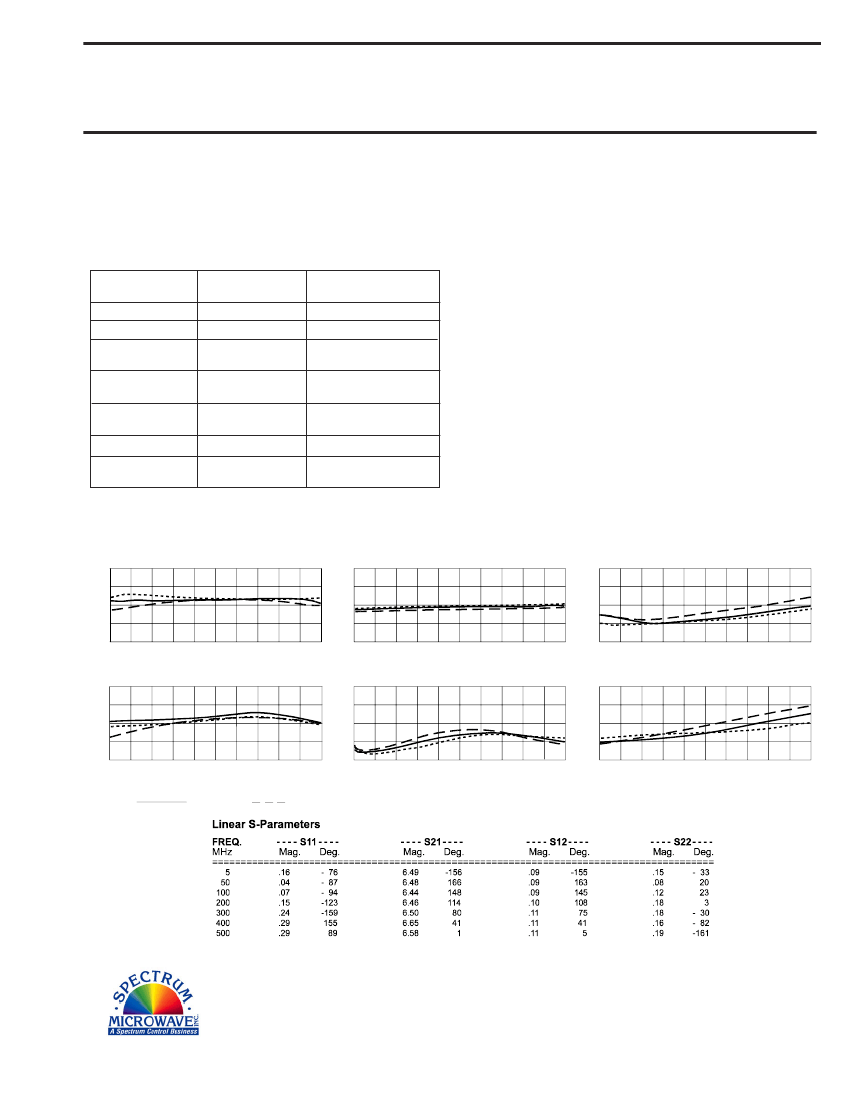

Features

High Gain: 16.5 dB Typical

High Output Power: +18 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6180, 4 Pin TO-8 (T4)

TN6180, 4 Pin Surface Mount (SM3)

FP6180, 4 Pin Flatpack (FP4)

BX6180, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +51 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +45 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +33 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 600 MHz

16.5

+18

-22

<1.4:1

<1.5:1

3.4

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 500 MHz

15.5 Min.

+15 Min.

-19.0 Max.

2.1:1 Max.

2.2:1 Max.

4.5 Max.

+15

75 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 17 Volts

Continuous RF Input Power ................................. + 15 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power ................. 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each

unit.

Typical Performance Data

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 600 MHz

Start 5 MHz

Stop 600 MHz

Gain (dB)

Start 5 MHz

Stop 600 MHz

- 10

- 20

- 30

- 40

1 dB Comp. (dBm)

+20

+19

+18

+17

+16

Start 5 MHz

Stop 600 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 600 MHz

Output VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 600 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

02/08/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6180 Related Products

	FP6180	BX6180	TM6180	TN6180
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	-	API Technologies
Reach Compliance Code	compli	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	15.5 dB	15.5 dB	-	15.5 dB
Maximum input power (CW)	15 dBm	15 dBm	-	15 dBm
Maximum operating frequency	500 MHz	500 MHz	-	500 MHz
Minimum operating frequency	10 MHz	10 MHz	-	10 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2	2.2	-	2.2
