FP6210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6210

FP6210: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6210 Overview

RF AMPLIFIER MODEL

FP6210 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

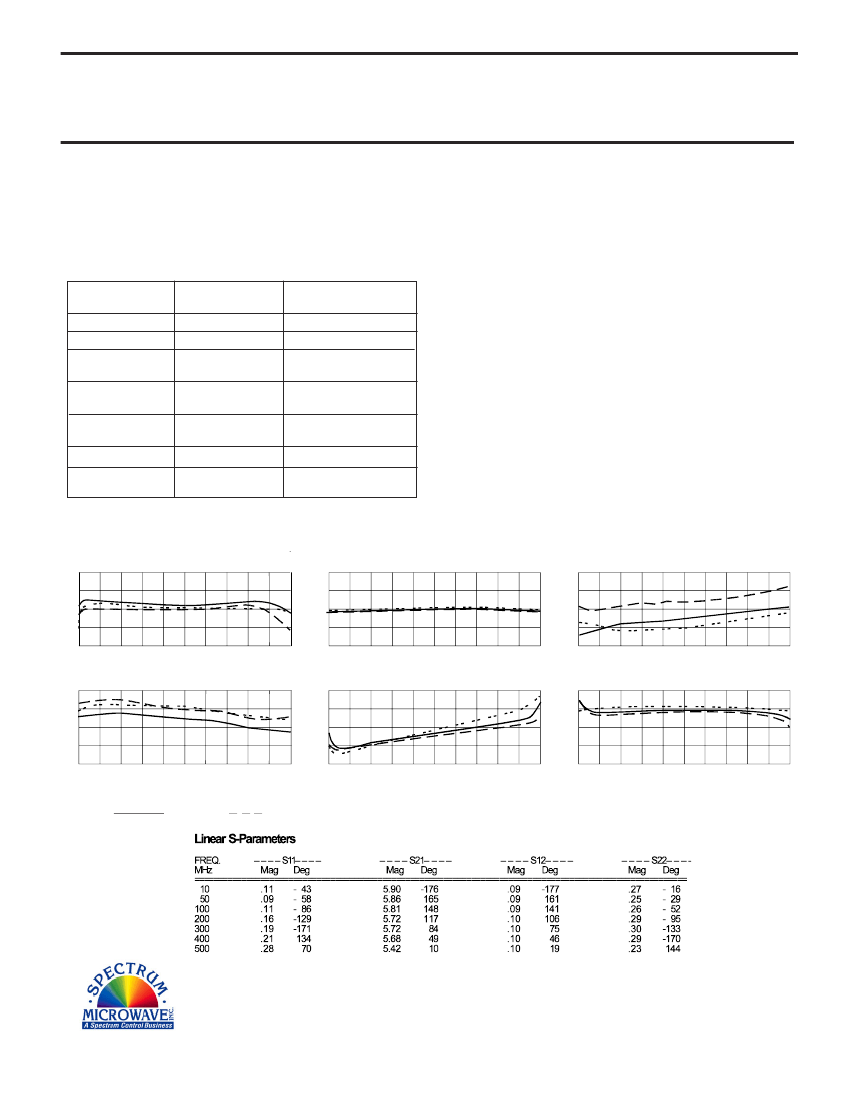

RF AMPLIFIER

MODEL

TM6210

Features

5 Volt Bias

Midband Output Power: +8 dBm Typical

Low Noise Figure: 2.9 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

TYPICAL

Ta= 25 ºC

5 - 500 MHz

8.0

-20

1.2:1

1.3:1

2.9

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13 Min.

6.5 Min.

-18 Max.

2.5:1 Max.

4.5 Max.

20 Max.

Available as:

TM6210, 4 Pin TO-8 (T4)

TN6210, 4 Pin Surface Mount (SM3)

FP6210, 4 Pin Flatpack (FP4)

BX6210, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +36 dBm (Typ.)

Second Order Two Tone Intercept Point........ +28 dBm (Typ.)

Third Order Two Tone Intercept Point............ +21 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 9 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 5 MHz

Stop 500 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 5 MHz

Stop 500 MHz

Noise Figure (dB)

5.0

4.0

3.0

2.0

1.0

Start 5 MHz

Stop 500 MHz

1 dB Comp. (dBm)

+10

+ 8

+ 7

+ 6

Start 5 MHz

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 5 MHz

Output VSWR

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/05/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6210 Related Products

	FP6210	BX6210	TM6210	TN6210
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	13 dB	13 dB	13 dB	13 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	API Technologies	-
