FP6212: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size40KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6212 Overview

RF AMPLIFIER MODEL

FP6212 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	8.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

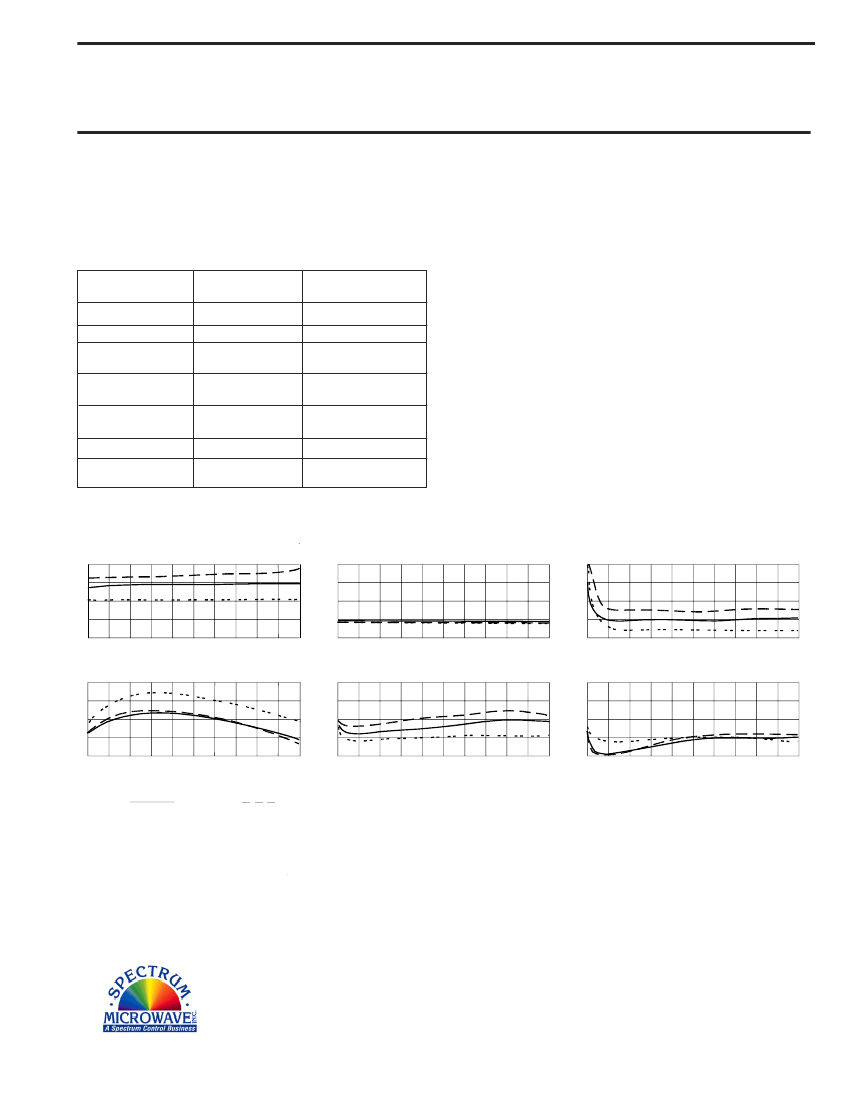

RF AMPLIFIER

MODEL

TM6212

Features

!

10 MHz to 1300 MHz: 10 dB Typical Gain

High Power: +22.5 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6212, 4 Pin TO-8 (T4)

TN6212, 4 Pin Surface Mount (SM3)

FP6212, 4 Pin Flatpack (FP4)

BX6212, Connectorized Housing (H1)

PN6212,

Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +48 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +42 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

10 - 1300 MHz

10

+22.5

-16

1.6:1

1.4:1

<6.0*

+15

92

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 1300 MHz

8.5 Min.

+19.5 Min.

-15 Max.

2.0:1 Max.

8.5* Max.

+15

100 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

10.5

10.0

9.5

9.0

8.5

Start 10 MHz

Stop 1300 MHz

Gain (dB)

0

- 5

- 10

- 15

- 20

Reverse Isolation (dB)

10

8

6

4

2

Start 10 MHz

Stop 1300 MHz

Start 10 MHz

Noise Figure (dB)

Stop 1300 MHz

1 dB Comp. (dBm)

+25

+24

+23

+22

+21

Start 10 MHz

Stop 1300 MHz

2.0

1.5

1.0

Start 10 MHz

Input VSWR

2.0

1.5

1.0

Stop 1300 MHz

Start 10 MHz

Output VSWR

Stop 1300 MHz

Legend

+ 25 ºC

Linear S-Parameters

+ 85 ºC - - - - - - -55 ºC

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

10

.19

- 37

3.18

-166

.14

11

111

.14

100

.13

- 20

3.24

175

.15

- 3

158

.01

300

.14

- 44

3.24

160

.15

- 14

-117

.03

500

.16

- 65

3.24

147

.15

- 23

-114

.06

700

.17

- 83

3.24

133

.14

- 34

-118

.08

900

.19

- 98

3.23

119

.14

- 43

-118

.09

1000

.19

-103

3.23

112

.14

- 48

-116

.10

1100

.20

-110

3.26

105

.14

- 53

-115

.11

1200

.20

-116

3.29

98

.14

- 58

-118

.12

1300

.20

-122

3.31

91

.14

- 63

-120

.12

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/26/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
