FP6441 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6441

FP6441: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size101KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6441 Overview

RF AMPLIFIER MODEL

FP6441 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6441

Features

Output Power: +16 dBm Typical

High Dynamic Range: 85 dB Typical*

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6441, 4 Pin TO-8 (T4)

TN6441, 4 Pin .450” Sq. Surface Mount (SM3)

PN6441, 4 Pin .375” sq. Surface Mount (SM14)

FP6441, 4 Pin Flatpack (FP4)

BX6441, SMA Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point.... +53 dBm (Typ.)

Second Order Two Tone Intercept Point.... +48 dBm (Typ.)

Third Order Two Tone Intercept Point........ +31 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

20 - 400 MHz

14.5

+16.0

-19

<1.5:1

<1.75:1

3.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 400 MHz

13.0 Min.

+15.0 Min.

-18 Max.

2.0:1 Mx.

2.0:1 Max.

5.0 Max.

+15

35 Max.

Maximum (No Damage) Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watts (3

µsec

Max.)

* Spurious-free Dynamic Range Calculated for 1 MHz Bandwidth

Revision 8/15/2013

Note: Care should always be taken to effectively ground the case of each unit.

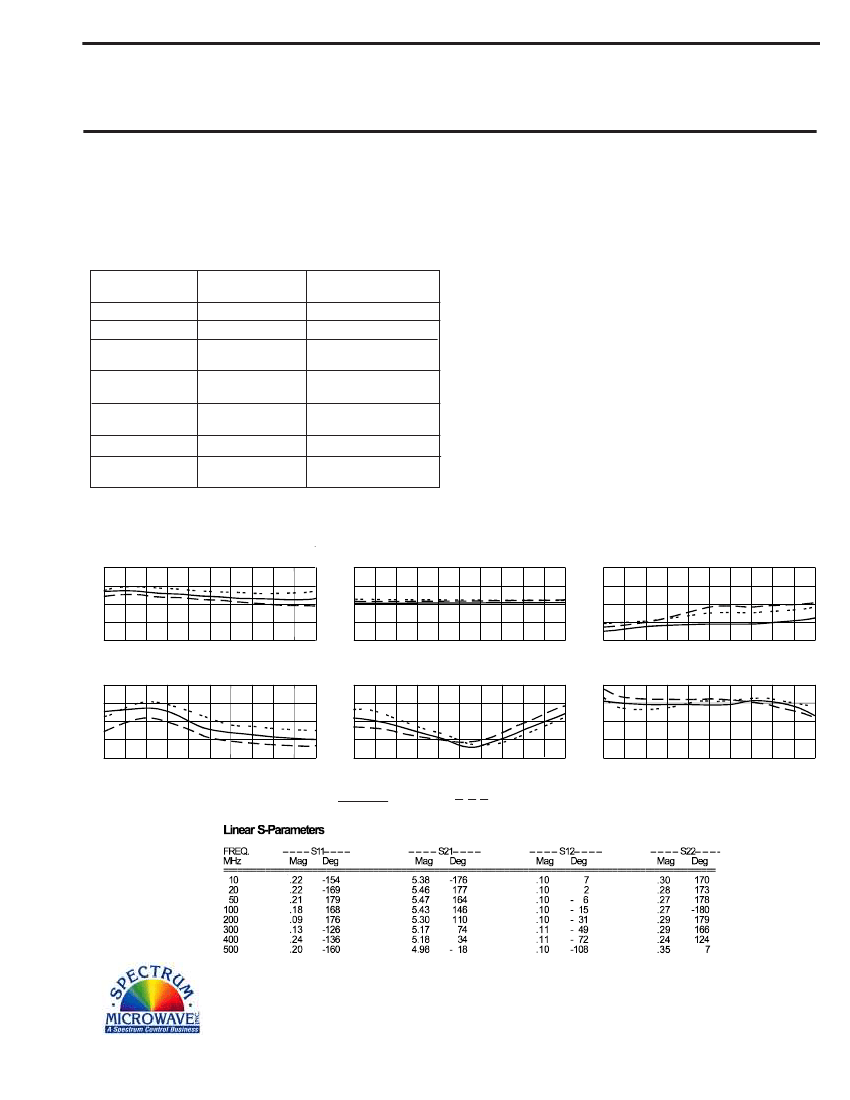

Typical Performance Data

Start 20 MHz

Stop 400 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 20 MHz

Stop 400 MHz

Start 20 MHz

Noise Figure (dB)

Stop 400 MHz

+19

+18

+17

+16

+15

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 20 MHz

Stop 400 MHz

Start 20 MHz

Stop 400 MHz

Start 20 MHz

Stop 400 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.spectrummicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6441 Related Products

	FP6441	BX6441	PN6441	TM6441	TN6441
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compli	compli	compliant	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	13 dB	13 dB	13 dB	13 dB	13 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2
Base Number Matches	1	-	-	1	1
