RF AMPLIFIER
MODEL
TM6189
Features
High Gain: 22 dB Typical
Operating Temp. -55 ºC to +85 ºC
Environmental Screening Available
Available as:
TM6189, 4 Pin TO-8 (T4)
TN6189, 4 Pin Surface Mount (SM3)
FP6489, 4 Pin Flatpack (FP4)
BX6189, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point........+42 dBm (Typ.)
Second Order Two Tone Intercept Point.........+35 dBm (Typ.)
Third Order Two Tone Intercept Point.............+30 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Gain Flatness (dB)
Gain Variation (dB)
IP3 (dBm)*
IP2 (dBm)*
IP2H (dBm)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
TYPICAL
Ta= 25 ºC
50 - 800 MHz
22
±0.5
1.3
+30
+35
+42
+17.5
-29
1.4:1
1.4:1
4.5
+15
45
MIN/MAX
Ta = -55 ºC to +85 ºC
100 - 800 MHz
20.5 Min.
±1.0 Max.
+25 Min.
+30 Min.
+37 Min
+16 Min.
-25 Max.
2.2:1 Max.
2.2:1 Max.
6.0 Max.
+15
50 Max.
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature .................................-62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +17 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power.................... 0.5 Watt (3
µsec
Max.)
Noise Figure (dB)
Power
Vdc
mA
Note: Care should always be taken to effectively ground the case of each unit.
* IP3 and IP2 are in band output intercept points.

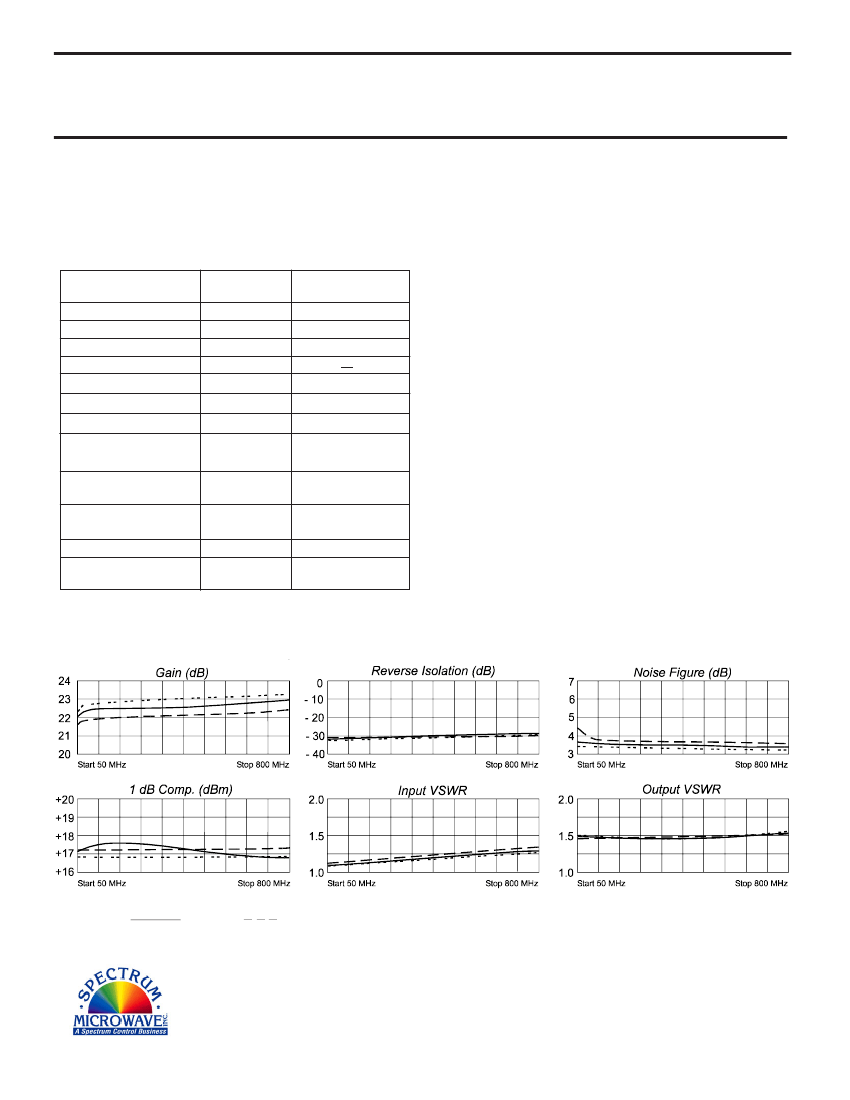

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
