FP6509 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6509

FP6509: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6509 Overview

RF AMPLIFIER MODEL

FP6509 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

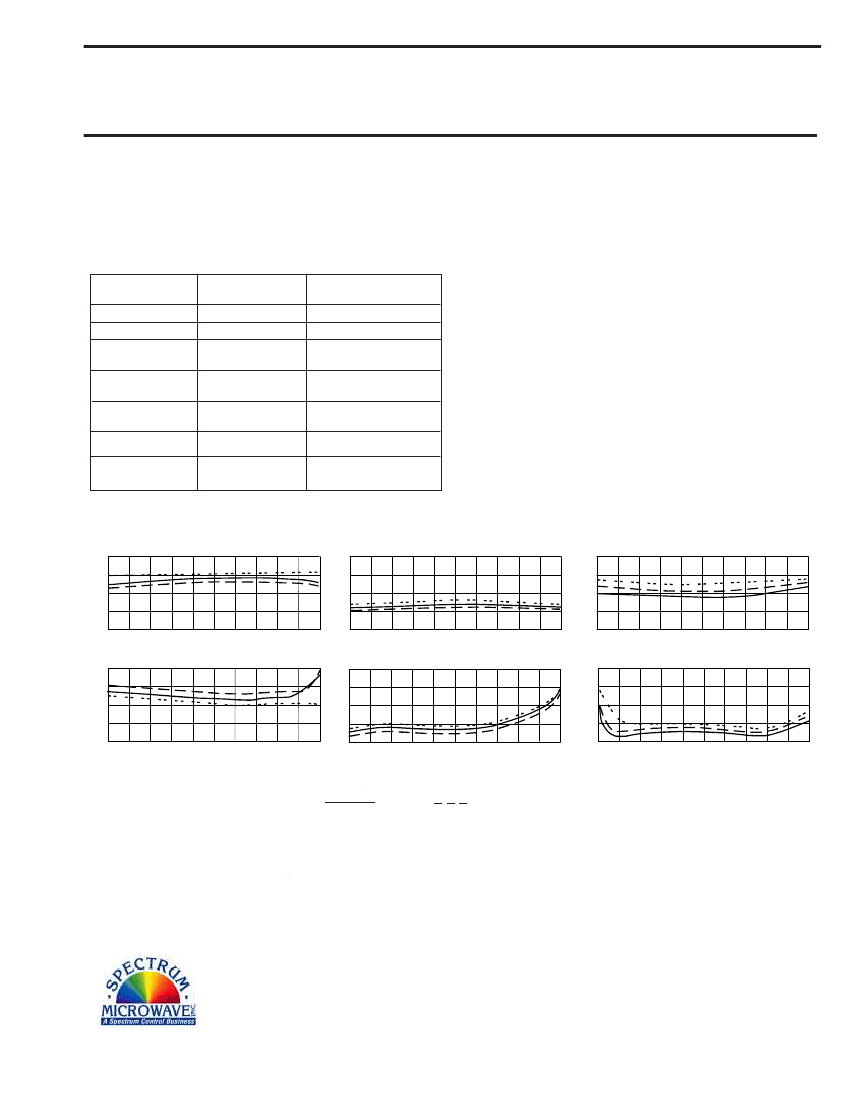

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6509

Features

High Output Power: +23 dBm Typical

High IP3:+36 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6509, 4 Pin TO-8 (T4)

TN6509, 4 Pin 0.450” Sq. Surface Mount (SM3)

PN6509, 4 Pin 0.375” Sq. Surface Mount (SM14)

FP6509, 4 Pin 0.500” Sq. Flatpack (FP4)

BX6509, SMA Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +56 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +50 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 MHz - 500 MHz

14.5

+23

-18

<1.4:1

<1.2:1

4.6

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 MHz - 500 MHz

13.0 Min.

+20 Min.

-15 Max.

2.0:1 Max.

6.0 Max.

+15

95 Max.

Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power ................................. +18 dBm*

Short Term RF Input Power ........... 100 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

MTBF Calculation for Ground Benign Environment

25 ºC

........................................................9,248,445 Hrs

* 50 Ohm Output Load

Note: Care should always be taken to effectively ground the case of each unit.

Revision 6/3/2013

Typical Performance Data

Reverse Isolation (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Gain (dB)

+ 10

- 10

- 20

Stop 500 MHz

Noise Figure (dB)

- 30

Start 5 MHz

Stop 500 MHz

+24

+23

+22

+21

+20

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

Linear S-Parameters

+25 ºC

+85 ºC - - - - - - -55 ºC

– – – – S12– – – –

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S22– – –

Mag

MHz

Deg

Mag

Deg

Mag

Deg

Mag

Deg

======================================================================================

.23

-41

5.86

-163

.08

.27

100

.13

5.46

159

.11

.05

200

.40

5.51

137

.12

.04

300

.58

-31

5.50

114

.14

.04

400

.10

-91

5.53

.15

-1

.08

500

.20

-137

5.45

.17

-9

.17

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
