FP6533PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6533PM

FP6533PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6533PM Overview

RF AMPLIFIER MODEL

FP6533PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	15 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

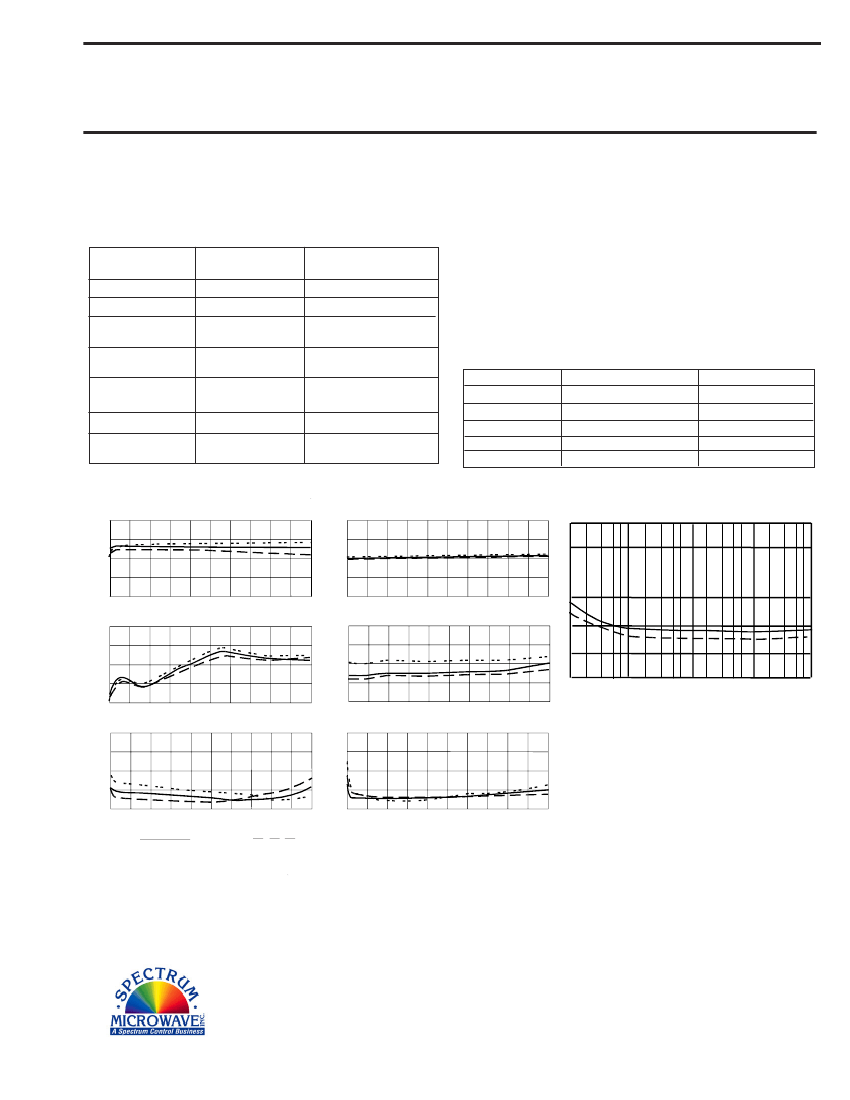

RF AMPLIFIER

MODEL

TM6533PM

Features

Superior Phase Noise Performance

Medium Output Power: +17 dBm Typical

High Third Order Intercept: +39 dBm Typical

Operating Temp. -55

ºC to +85ºC

TYPICAL

Ta= 25 ºC

5 - 500 MHz

16.5

+17

-18.5

<1.5:1

3.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

15.0 Min.

+15 Min.

-17 Max.

2.0:1 Max.

5.5 Max.

+15

55 Max.

Available as:

TM6533PM, 4 Pin TO-8 (T4)

TN6533PM, 4 Pin Surface Mount (SM3)

FP6533PM, 4 Pin Flatpack (FP4)

BX6533PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +48 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +42 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +32 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ............... -55ºC to +100 ºC

Storage Temperature ................................ -62ºC to +125 ºC

Case Temperature ................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ..... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 KHz

10 KHz

100 KHz

1 MHz

Typical

-168

-170

-174

Guarantee (Min.)

-165

-167

-171

Note: Care should always be taken to effectively ground the case of each unit.

* NOISE FIGURE IS HIGHER FOR FREQUENCIES BELOW 50 MHZ

Typical Performance Data

Reverse Isolation (dB)

-130

-140

-150

-160

-170

-180

-190

100

10K

100K

+20

+19

+18

+17

+16

Start 5 MHz

2.0

1.5

1.0

Start 5 MHz

Gain (dB)

- 10

- 20

- 30

Stop 500 MHz

Phase Noise (dBc/Hz)

- 40

2.0

1.5

1.0

Start 5 MHz

Stop 500 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

_________Guarantee __ __ __ __Typical

Input VSWR

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency:200 MHz

Power Output:+17 dBm

Temperature:25ºC

Agilent ES550 System

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+25 ºC

FREQ.

+85 ºC - - - - - - -55 ºC

----S11----

----S21----

----S12----

----S22----

Linear S-Parameters

======================================================================================

.13

-121

6.73

-170

.09

.15

.09

-180

6.90

171

.10

-0

.06

.08

170

6.88

159

.09

-1

.05

100

.07

161

6.85

138

.10

-2

.05

200

.05

170

6.79

117

.10

-4

.07

300

.07

-164

6.79

.11

-8

.09

400

.13

-158

6.71

.12

-12

.12

500

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

1/3/07

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6533PM Related Products

	FP6533PM	BX6533PM	TM6533PM	TN6533PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	15 dB	15 dB	15 dB	15 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
