FP6546 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6546

FP6546: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6546 Overview

RF AMPLIFIER MODEL

FP6546 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

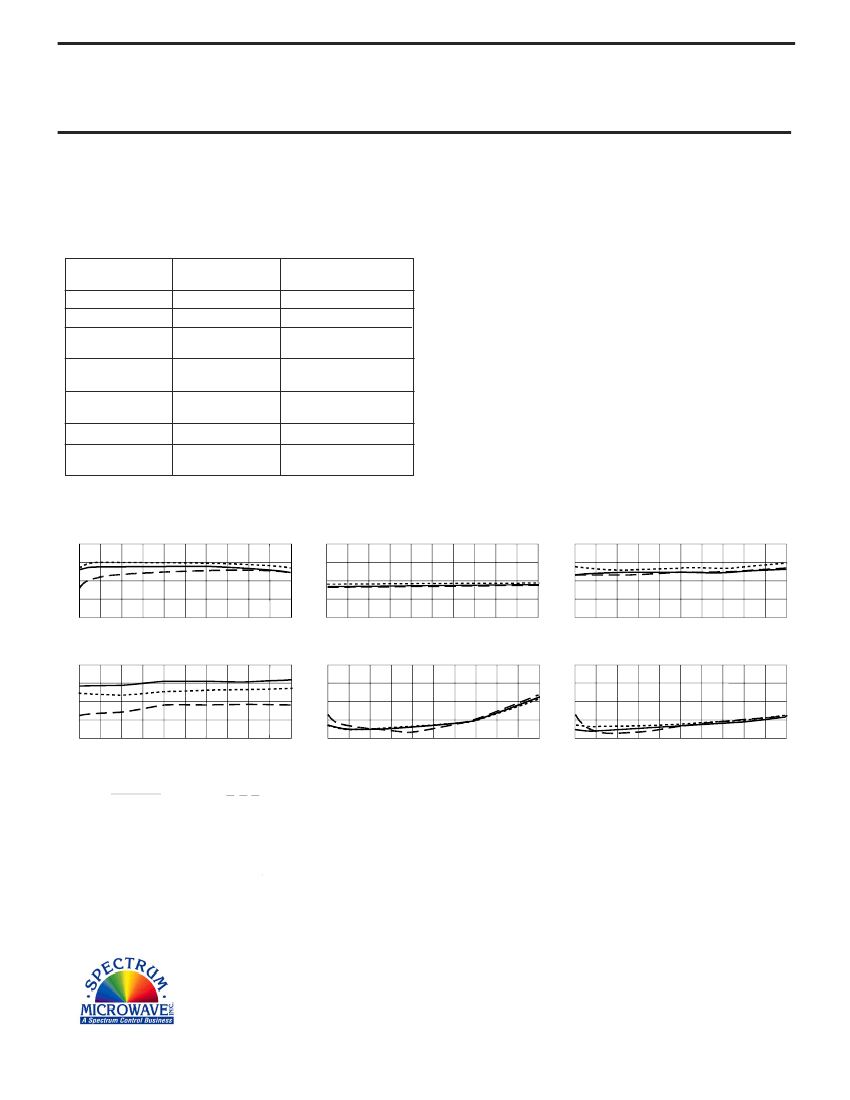

RF AMPLIFIER

MODEL

TM6546

Features

High IP3: +38 dBm Typical

High Output Power: +25 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Available as:

TM6546, 4 Pin TO-8 (T4)

TN6546, 4 Pin Surface Mount (SM3)

FP6546, 4 Pin Flatpack (FP4)

BX6546,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point.... +53 dBm (Typ.)

Second Order Two Tone Intercept Point.... +45 dBm (Typ.)

Third Order Two Tone Intercept Point........ +38 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

20 - 500 MHz

11.5

+25

-19

1.8:1

1.7:1

4.0

+15

105

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 500 MHz

10.0 Min.

+23 Min.

-18

Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power.... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

2.0:1 Max.

6.0 Max.

+15

110 Max.

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 20 MHz

Stop 500 MHz

Gain (dB)

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 20 MHz

Stop 500 MHz

Noise Figure (dB)

Start 20 MHz

Stop 500 MHz

1 dB Comp. (dBm)

+27

+26

+25

+24

+23

Start 20 MHz

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

Start 20 MHz

Stop 500 MHz

Output VSWR

2.0

1.5

1.0

Start 20 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

Freq

----S11----

----S21----

----S12----

----S22----

MHz

Mag Deg

=================================================================

100

200

300

400

500

.19

.17

.19

.24

.26

.21

.16

165

-179

-176

171

146

117

3.80

3.88

3.85

3.70

3.65

3.62

3.64

-171

163

142

104

-16

.09

.10

.11

-173

160

139

-9

.19

.22

.27

.30

.26

.17

-24

-60

-111

-153

170

132

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/10/04

www.SpectrumMicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6546 Related Products

	FP6546	BX6546	TM6546	TN6546
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	10 dB	10 dB	10 dB	10 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
