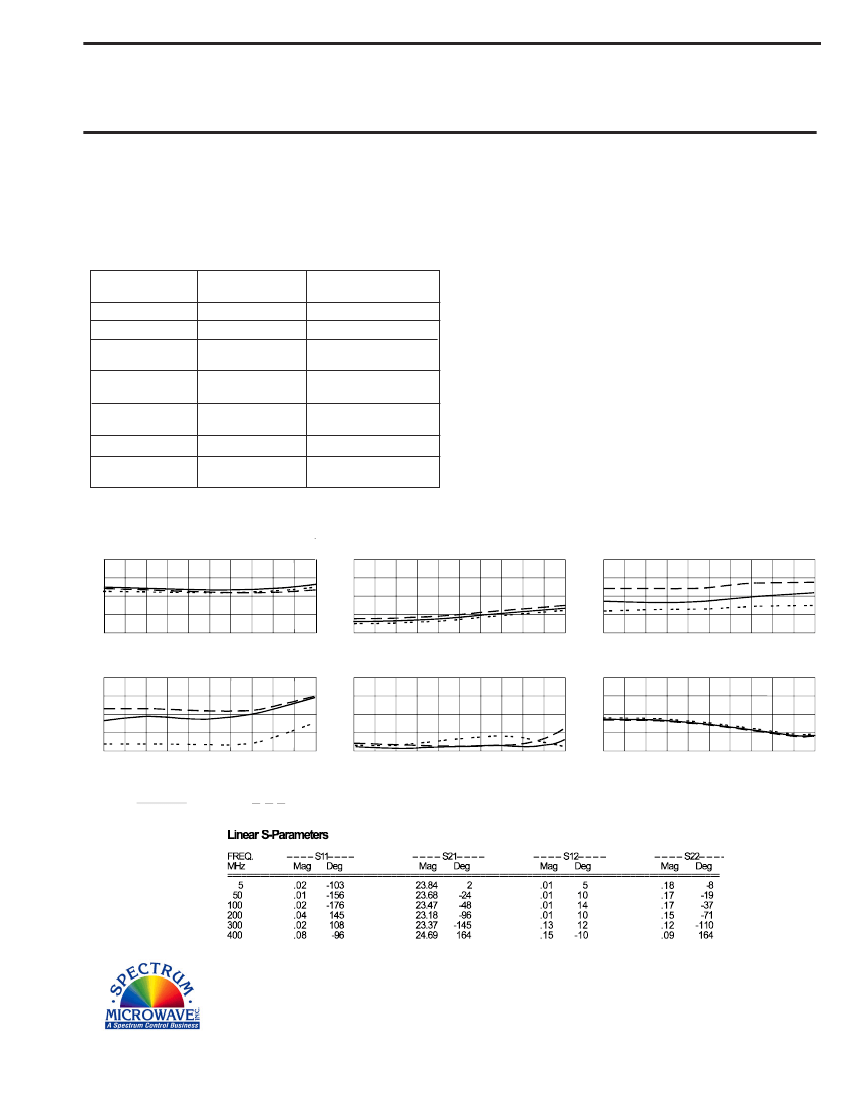

RF AMPLIFIER
MODEL
TM6554
Features
!
High Gain: 27.5 dB Typical
!
Environmental Screening Available
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25
ºC
5 - 400 MHz
27.5
+8
-35
<1.5:1
<1.5:1
5
+15
33
MIN/MAX
Ta = -55
ºC
to +85
ºC
5 - 400 MHz
25.0 Min.
+6.0 Min.
-34 Max.
2.0:1 Max.
2.0:1 Max.
6.0 Max.
+15
38 Max.
Available as:
TM6554, 4 Pin TO-8 (T4)
TN6554, 4 Pin Surface Mount (SM3)
FP6554, 4 Pin Flatpack (FP4)
BX6554,Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point........+38 dBm (Typ.)
Second Order Two Tone Intercept Point.........+32 dBm (Typ.)
Third Order Two Tone Intercept Point.............+19 dBm (Typ.)
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
29
28
27
26
25
Start 5 MHz
Stop 400 MHz
Gain (dB)
- 10
- 20
- 30
- 40
- 50
Reverse Isolation (dB)
7
6
5
4
3
Start 5 MHz
Stop 400 MHz
Start 5 MHz
Noise Figure (dB)
Stop 400 MHz
+10
+ 9
+ 8
+ 7
+ 6
Start 5 MHz
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Stop 400 MHz
Start 5 MHz
Stop 400 MHz
Start 5 MHz
Stop 400 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
04/08/05
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
