FP6559: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6559 Overview

RF AMPLIFIER MODEL

FP6559 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

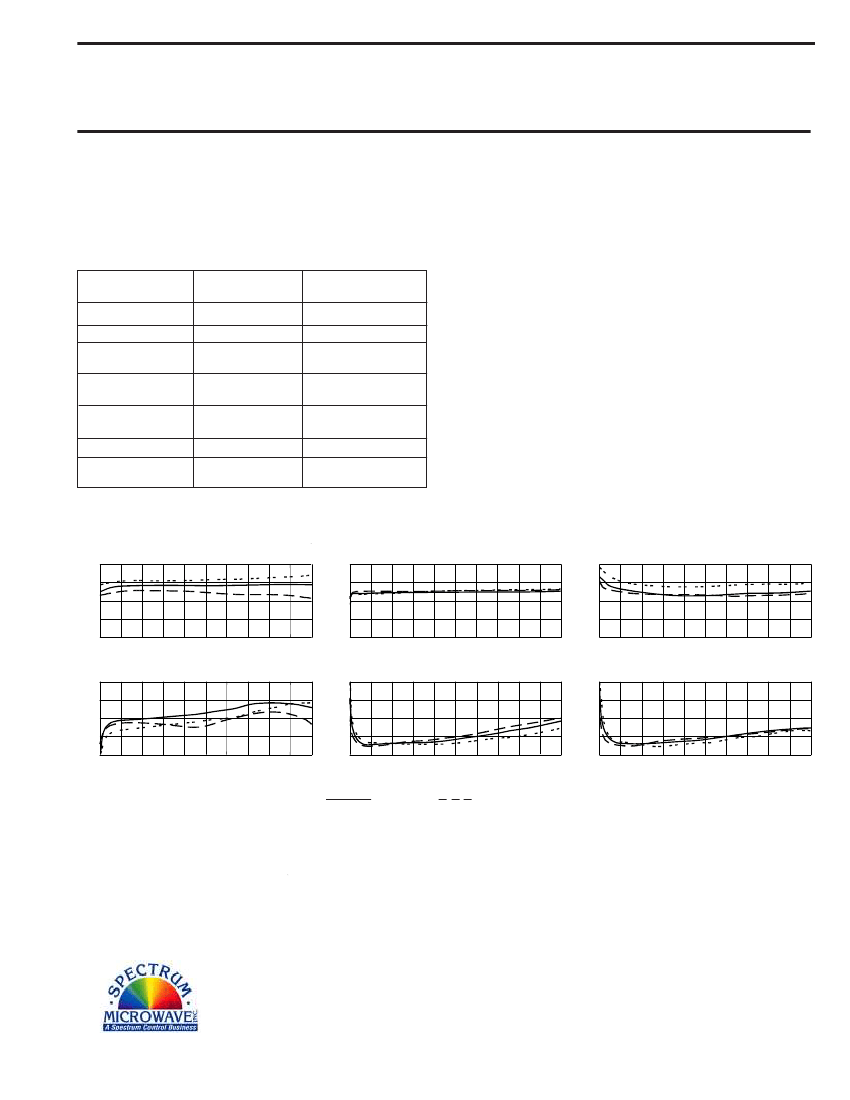

RF AMPLIFIER

MODEL

TM6559

Features

n

High OutputPower: +22 dBm Typical

n

Gain:11.5 dB Typical

n

Operating Temp. - 55 ºC to +85 ºC

n

Environmental Screening Available

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise figure (dB)

Power

Vdc

mA

Revision 11-21-2013

Available as:

TM6559, 4 Pin TO-8 (T4)

TN6559, 4 Pin .450” Sq. Surface Mount (SM3)

FP6559, 4 Pin Flatpack (FP4)

BX6559, SMA Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+52 dBm (Typ.)

Second Order Two Tone Intercept Point.........+46 dBm (Typ.)

Third Order Two Tone Intercept Point.............+37 dBm (Typ.)

Maximum (No Damage) Ratings

TYPICAL

Ta= 25 ºC

5-500 MHz

11.5

22

-15

1.5:1

5.5

+15

88

MIN/MAX

Ta = -55 ºC to +85 ºC

5-500 MHz

10 Min.

20 Min.

-

2.0:1 Max.

7.0 Max.

+15 Min.

98 Max.

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

0

- 10

- 20

- 30

- 40

12

11

10

Reverse Isolation (dB)

7

6

5

4

3

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

+24

+23

+22

+21

+20

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

Linear S-Parameters

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

– – – – S21– – – –

FREQ.

– – – – S11– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

5

.31

- 51

3.70

-154

.12

32

113

.39

50

.05

-112

3.65

175

.16

2

110

.07

100

.06

-121

3.66

166

.16

-1

102

.07

200

.08

-121

3.66

149

.16

-2

81

.09

300

.11

-127

3.65

133

.17

-5

71

.11

400

.15

-134

3.67

117

.17

-8

59

.14

500

.19

-142

3.66

101

.17

-12

49

.16

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.spectrummicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6559 Related Products
