RF AMPLIFIER

MODEL

TM6572

Features

!

Low +5 Volt Supply

!

Environmental Screening Available

!

Operating Temp. - 55 ºC to +85 ºC

Available as:

TM6572, 4 Pin TO-8 (T4)

TN6572, 4 Pin Surface Mount (SM3)

FP6572, 4 Pin Flatpack (FP4)

BX6572,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +44 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +38 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +27 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise figure (dB)

Power

Vdc

mA

VSWR

TYPICAL

Ta= 25 ºC

5 - 500 MHz

14.7

+13

-18

<1.25:1

<4

+5

30

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13.5 Min.

+11 Min.

-16 Max.

2.0:1 Max.

5.5 Max.

+5

35 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 10 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

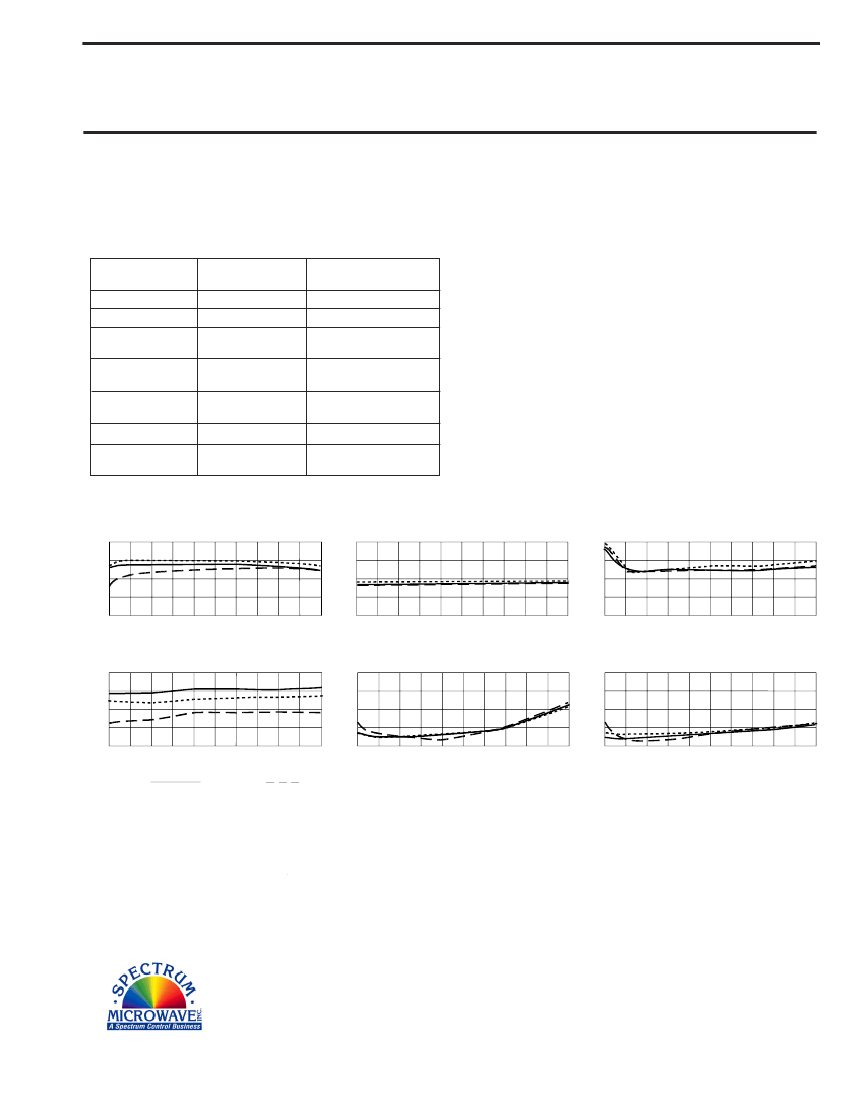

Typical Performance Data

17

16

15

14

13

Start 5 MHz

Stop 500 MHz

Gain (dB)

0

-5

- 10

- 15

- 20

Reverse Isolation (dB)

6

5

4

3

2

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

+15

+14

+13

+12

+11

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

Freq

----S11----

----S21----

----S12----

----S22----

MHz

Mag Deg

=================================================================

5

50

100

200

300

400

500

.10

.09

.08

.07

.06

.08

-137

178

175

171

168

-180

-165

5.40

5.48

5.47

5.46

-173

172

163

146

129

111

93

.11

.12

.13

.14

-8

1

2

1

-1

.09

.05

.08

.10

.14

.18

145

179

-170

-162

-164

179

163

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/2/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
