FP6575: DescriptionRF AMPLIFIER MODEL; File Size66KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Compare View All

FP6575 Overview

RF AMPLIFIER MODEL

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6575

Features

High Gain: +21 dB Typical

Low Noise: 2.7 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6575, 4 Pin TO-8 (T4)

TN6575, 4 Pin Surface Mount (SM3)

FP6575, 4 Pin Flatpack (FP4)

BX6575, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +33 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +28 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +21 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 500 MHz

+9.5

-23

<1.5:1

<1.25:1

2.7

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

19 Min.

+8.5 Min.

-21 Max.

2.0:1 Max.

3.5 Max.

+15

27 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power.......50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

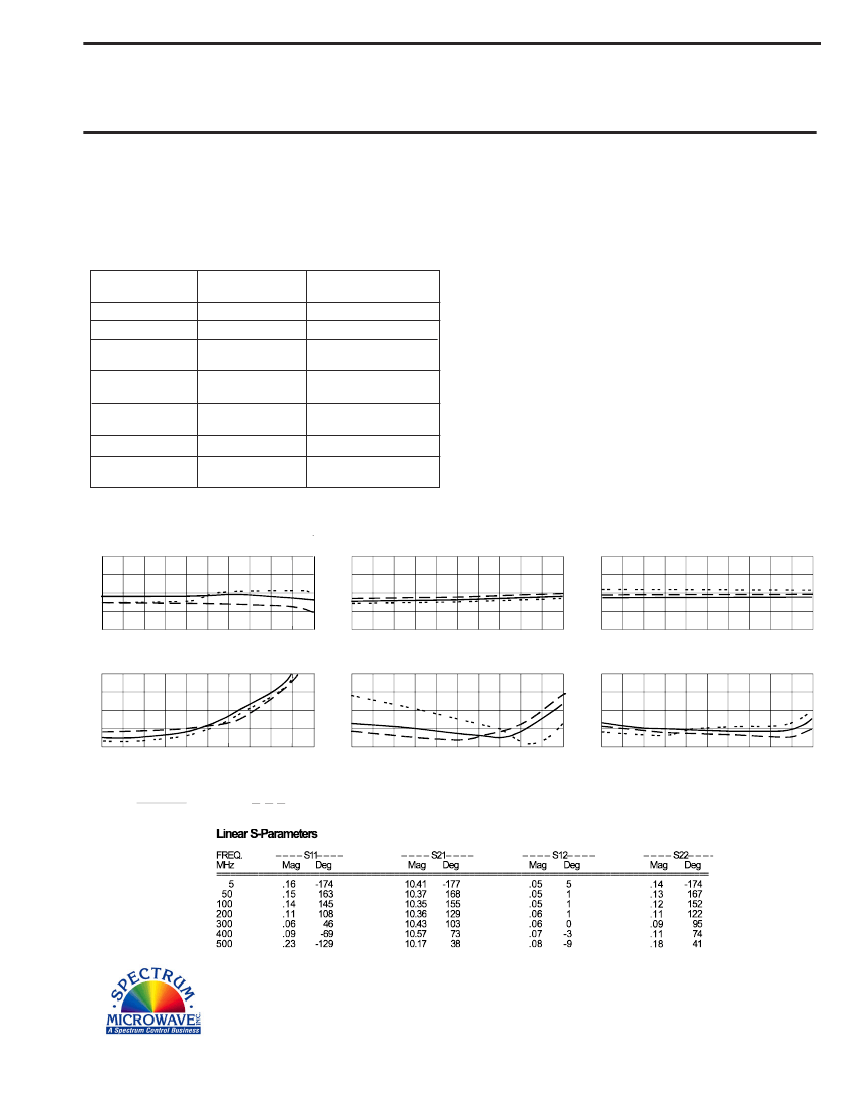

Typical Performance Data

Start 5 MHz

Stop 500 MHz

Gain (dB)

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 5 MHz

Stop 500 MHz

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

+13

+12

+11

+10

+ 9

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

Output VSWR

2.0

1.5

1.0

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

11/15/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6575 Related Products

	FP6575	BX6575	TM6575	TN6575
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	-	API Technologies	API Technologies	API Technologies
Reach Compliance Code	-	compli	compli	compli
Other features	-	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	-	COAXIAL	COMPONENT	COMPONENT
Gain	-	19 dB	19 dB	19 dB
Maximum input power (CW)	-	13 dBm	13 dBm	13 dBm
Maximum operating frequency	-	500 MHz	500 MHz	500 MHz
Minimum operating frequency	-	5 MHz	5 MHz	5 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	-	2	2	2

Recommended Resources
