PN6520 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PN6520

PN6520: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER; CategoryWireless rf/communication Radio frequency and microwave; File Size192KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

PN6520 Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER

PN6520 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Is Samacsys	N
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6520

Features

High Efficiency: 13 dBm Typical @ 170 mW DC

Low Noise Figure: <3.5 dB Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6520, 4 Pin TO-8 (T4)

TN6520, 4 Pin Surface Mount (SM3)

FP6520, 4 Pin Flatpack (FP4)

BX6520,Connectorized Housing (H1)

PN6520, Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point....... +40 dBm (Typ.)

Second Order Two Tone Intercept Point........ +34 dBm (Typ.)

Third Order Two Tone Intercept Point.............+27 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 500 MHz

14.5

+13

-17

<1.3:1

<1.5:1

<3.5

MIN/MAX

Ta = -55

ºC

to +85

ºC

5 - 500 MHz

13.5 Min.

+11.5 Min.

-16 Max.

2.0:1 Max.

4.5 Max.

36 Max.

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +10 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power..... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

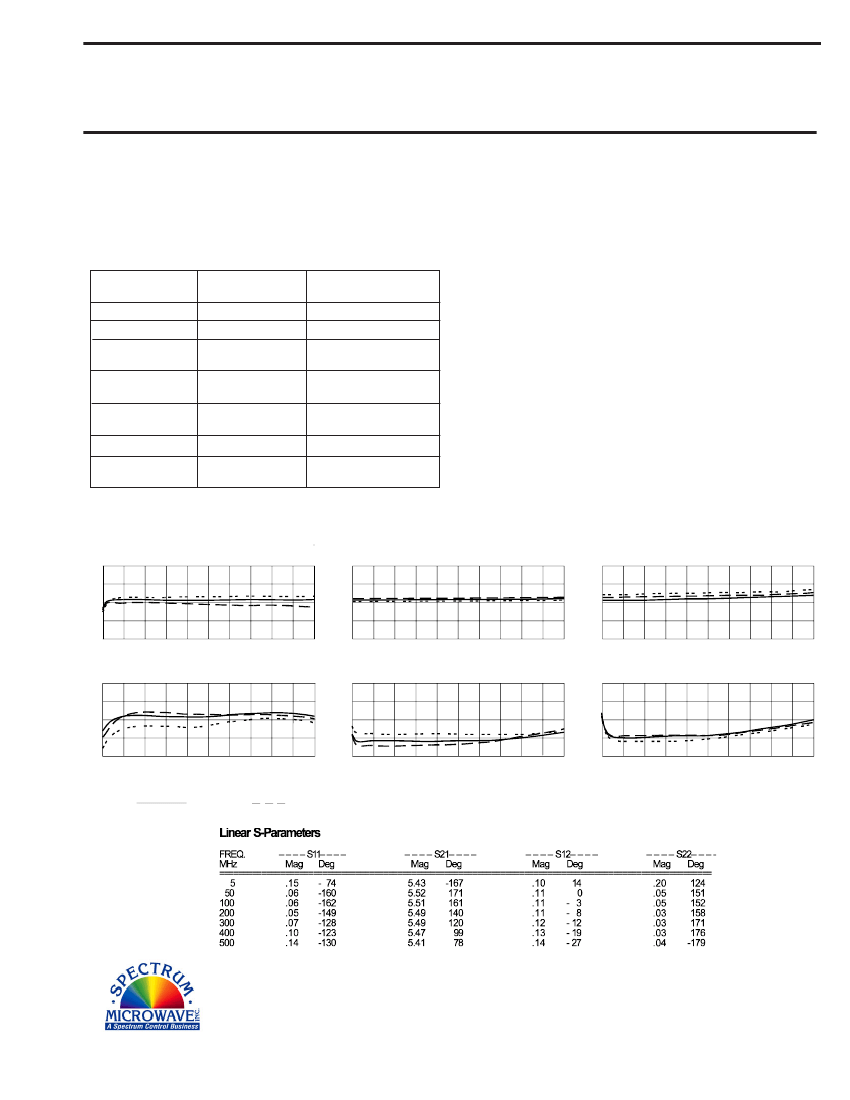

Typical Performance Data

15.5

15.0

14.5

14.0

13.5

Start 5 MHz

Stop 500 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

+15

+14

+13

+12

+11

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

4/22/10

www.spectrummicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

PN6520 Related Products

	PN6520	BX6520	FP6520	TM6520	TN6520
Description	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	13.5 dB	13.5 dB	13.5 dB	13.5 dB	13.5 dB
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 Cel
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 Cel
Maximum voltage standing wave ratio	2	2	2	2	2
Reach Compliance Code	compli	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
