AT17LV128-10PJ: DescriptionConfiguration Memory, 128KX1, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001BA, DIP-8; Categorystorage storage; File Size616KB，26 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric View All

AT17LV128-10PJ Overview

Configuration Memory, 128KX1, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, MS-001BA, DIP-8

AT17LV128-10PJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IT CAN OPERATES ON 4.75-5.25 RANGE SUPPLY VOLTAGE ALSO
Maximum clock frequency (fCLK)	10 MHz
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	9.271 mm
memory density	131072 bit
Memory IC Type	CONFIGURATION MEMORY
memory width	1
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	5.334 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.62 mm

Preview

Download Datasheet

View All

Features

•

EE Programmable 65,536 x 1-, 131,072 x 1-, 262,144 x 1-, 524,288 x 1-, 1,048,576 x 1-,

2,097,152 x 1-, and 4,194,304 x 1-bit Serial Memories Designed to Store Configuration

Programs for Field Programmable Gate Arrays (FPGAs)

Supports both 3.3V and 5.0V Operating Voltage Applications

In-System Programmable (ISP) via Two-Wire Bus

Simple Interface to SRAM FPGAs

Compatible with Atmel AT6000, AT40K and AT94K Devices, Altera

FLEX

, APEX

™

Devices, ORCA

, Xilinx

XC3000, XC4000, XC5200, Spartan

, Virtex

FPGAs

Cascadable Read-back to Support Additional Configurations or Higher-density Arrays

Very Low-power CMOS EEPROM Process

Programmable Reset Polarity

Available in 6 mm x 6 mm x 1 mm 8-lead LAP (Pin-compatible with 8-lead SOIC/VOIC

Packages), 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP

Packages

Emulation of Atmel’s AT24CXXX Serial EEPROMs

Low-power Standby Mode

High-reliability

– Endurance: 100,000 Write Cycles

– Data Retention: 90 Years for Industrial Parts (at 85° C) and 190 Years for

Commercial Parts (at 70° C)

Green (Pb/Halide-free/RoHS Compliant) Package Options Available

•

FPGA

Configuration

EEPROM

Memory

AT17LV65

AT17LV128

AT17LV256

AT17LV512

AT17LV010

AT17LV002

AT17LV040

3.3V and 5V

System Support

•

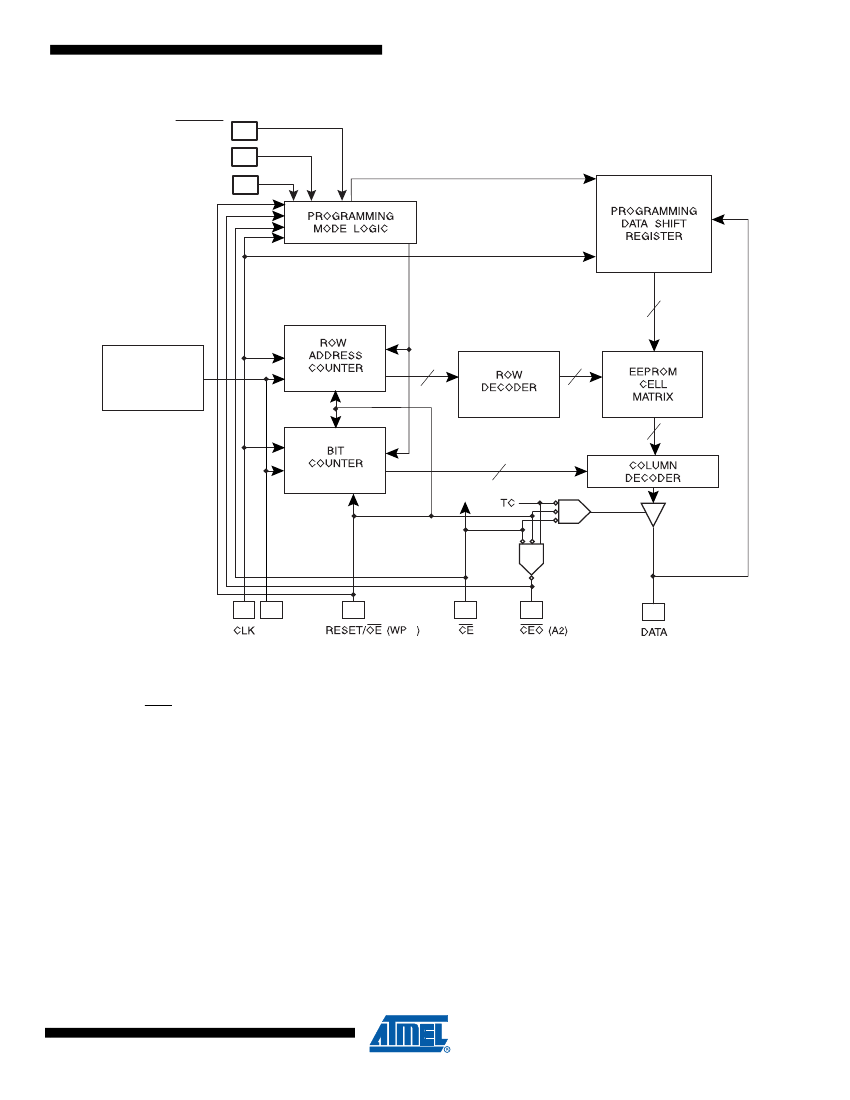

1. Description

The AT17LV series FPGA Configuration EEPROMs (Configurators) provide an easy-

to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The

AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-

lead PLCC, 20-lead SOIC and 44-lead TQFP, see

Table 1-1.

The AT17LV series

Configurators uses a simple serial-access procedure to configure one or more FPGA

devices. The user can select the polarity of the reset function by programming four

EEPROM bytes. These devices also support a write-protection mechanism within its

programming mode.

The AT17LV series configurators can be programmed with industry-standard pro-

grammers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.

2321I–CNFG–2/08
