TM6507PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TM6507PM

TM6507PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size115KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TM6507PM Overview

RF AMPLIFIER MODEL

TM6507PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

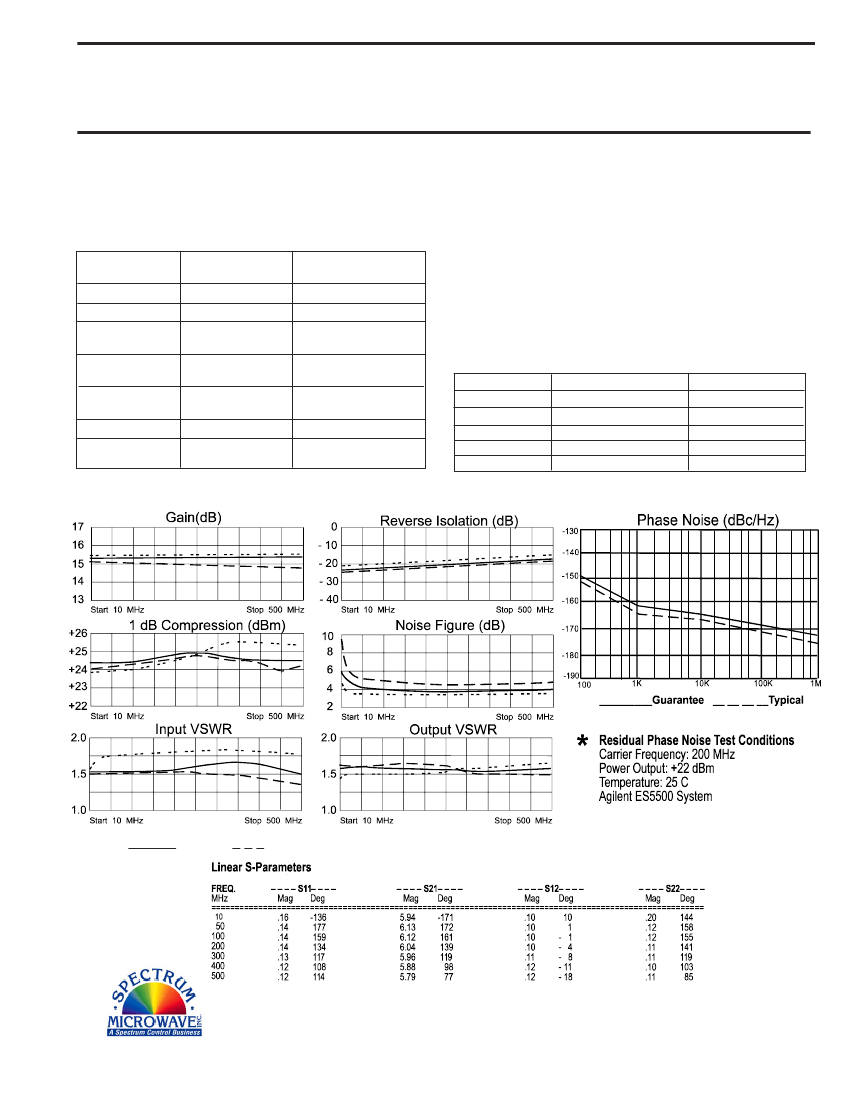

RF AMPLIFIER

MODEL

TM6507PM

Features

Superior Phase Noise Performance

High Output Power: +24 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

TYPICAL

Ta= 25 ºC

10 - 500 MHz

15.5

-17

1.5:1

1.7:1

4.0*

+15

110

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 500 MHz

14 Min.

20 Min.

-16 Max.

2.0:1 Max.

6.0* Max.

+15

115 Max.

Available as:

TM6507PM, 4 Pin TO-8 (T4)

TN6507PM, 4 Pin Surface Mount (SM3)

FP6507PM, 4 Pin Flatpack (FP4)

BX6507PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +46 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +40 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +35 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +18 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-152

-165

-168

-175

-176

Guarantee

-149

-162

-165

-172

-173

Note: Care should always be taken to effectively ground the case of each unit.

* Noise may be greater for frequencies below 20 MHz.

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

TM6507PM Related Products

	TM6507PM	BX6507PM	FP6507PM	TN6507PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	14 dB	14 dB	14 dB	-
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	-
Maximum operating frequency	500 MHz	500 MHz	500 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	-
Maximum voltage standing wave ratio	2	2	2	-
