218-FREQ4-BBD10010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 218-FREQ4-BBD10010

218-FREQ4-BBD10010: DescriptionParallel - Fundamental Quartz Crystal, 50MHz Min, 200MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size458KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

218-FREQ4-BBD10010 Overview

Parallel - Fundamental Quartz Crystal, 50MHz Min, 200MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

218-FREQ4-BBD10010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	10 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	200 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.5XB5.2XH1.1 (mm)/L0.295XB0.205XH0.043 (inch)
Series resistance	30 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

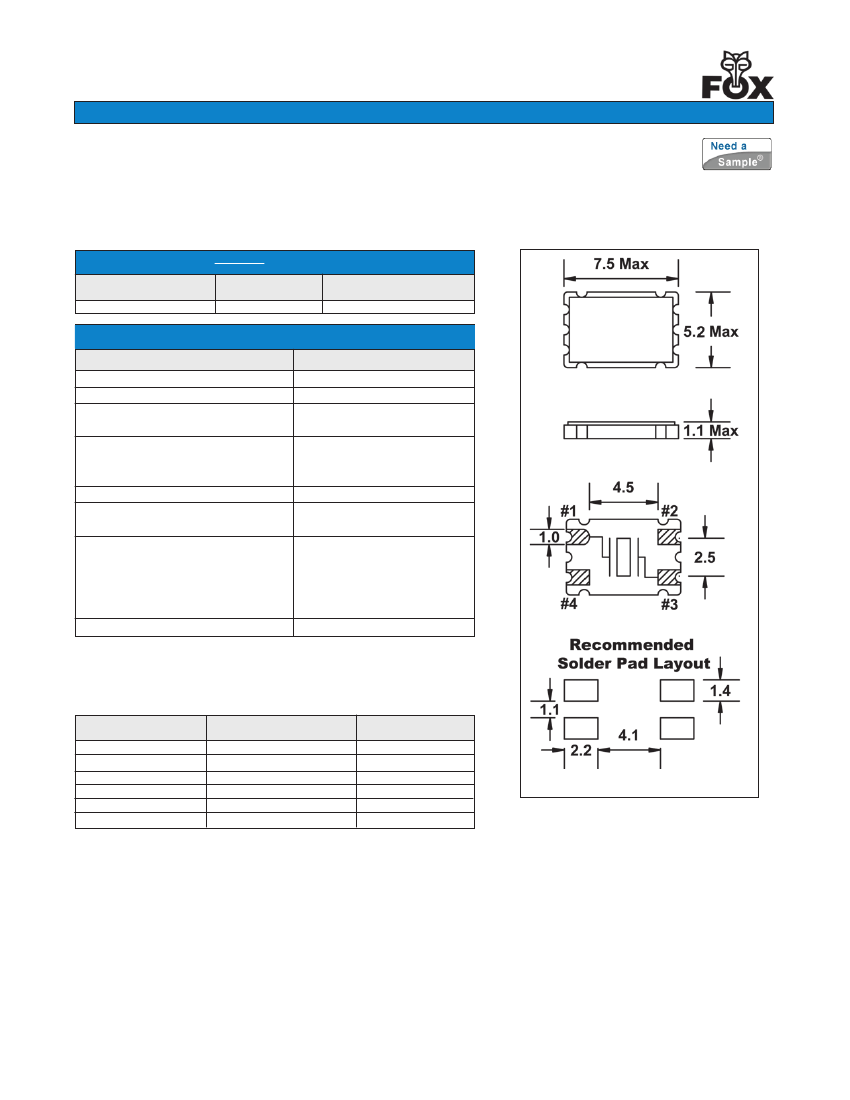

Ceramic Seam Sealed SMD Crystal

Model: FD

FEATURES

•

High Frequency Range

Fundamental to 200 MHz

Inverted Mesa: 50-200 MHz

Tape and Reel (2,000 pcs. STD)

RoHS Compliant / Pb Free

OPTIONS

• Tolerances to 5 PPM

• Stabilities to 3 PPM

• Temperatures to -40ºC ~ +85ºC

Rev. 2/8/2011

http://www.foxonline.com/need_a_sample.htm

• PART NUMBER

Learn More - Internet Required

Part Number

218-Frequency-xxxxx

Model Number

Frequency Range (MHz)

6.000 ~ 200.000

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

8.000 ~ 160.000 MHz

(Fund to 50MHz, 3rd OT, 5th OT)

50.000 ~ 200 MHz

(Fund Inverted Mesa)

Aging per year

MAX

(unless otherwise noted)

6.000 ~ 200.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

0.5 mW

0.1 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for

specific requirements.

All specifications subject to change without notice.

Frequency Range

(MHz)

6.000 ~ 10.000

10.000

~ 16.000

16.000+ ~ 50.000

50.000+ ~ 200.000

28.000 ~ 176.000

84.000 ~ 200.000

Operating Mode

Fundamental

Fundamental (Inv. Mesa)

3rd OT

5th OT

Max ESR

Ω

110

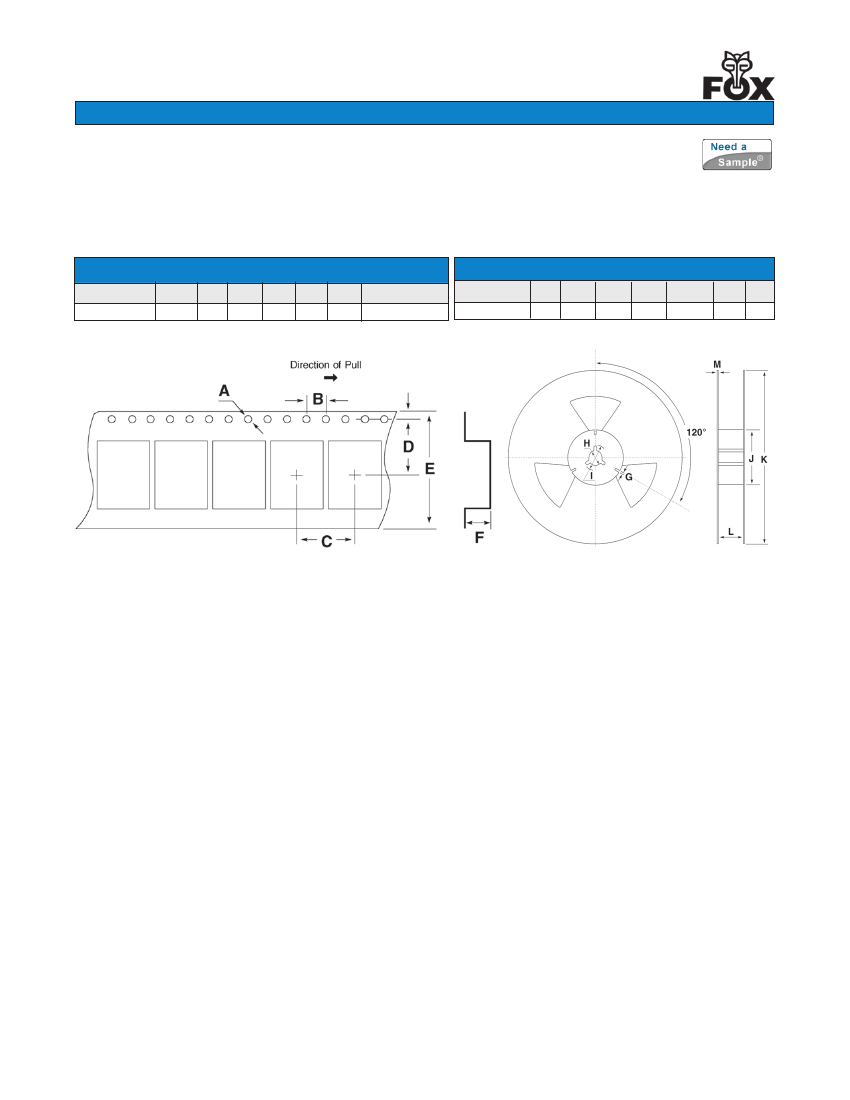

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

www.foxonline.com

EMEA

Tel: +44 .11283.568153 |

Canada

+1.888.438.2369 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
