24-21/BHC-AN1P2M/2A datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 24-21/BHC-AN1P2M/2A

24-21/BHC-AN1P2M/2A: DescriptionSingle Color LED, Blue, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size177KB，10 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

24-21/BHC-AN1P2M/2A Overview

Single Color LED, Blue, Water Clear, 1.6mm, ROHS COMPLIANT, SMD, 2 PIN

24-21/BHC-AN1P2M/2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli
color	BLUE
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	50.25 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL 7"
peak wavelength	468 nm
shape	ROUND
size	1.6 mm
surface mount	YES
Terminal pitch	3.4 mm
perspective	130 deg
Base Number Matches	1

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

Reverse Package Chip LED

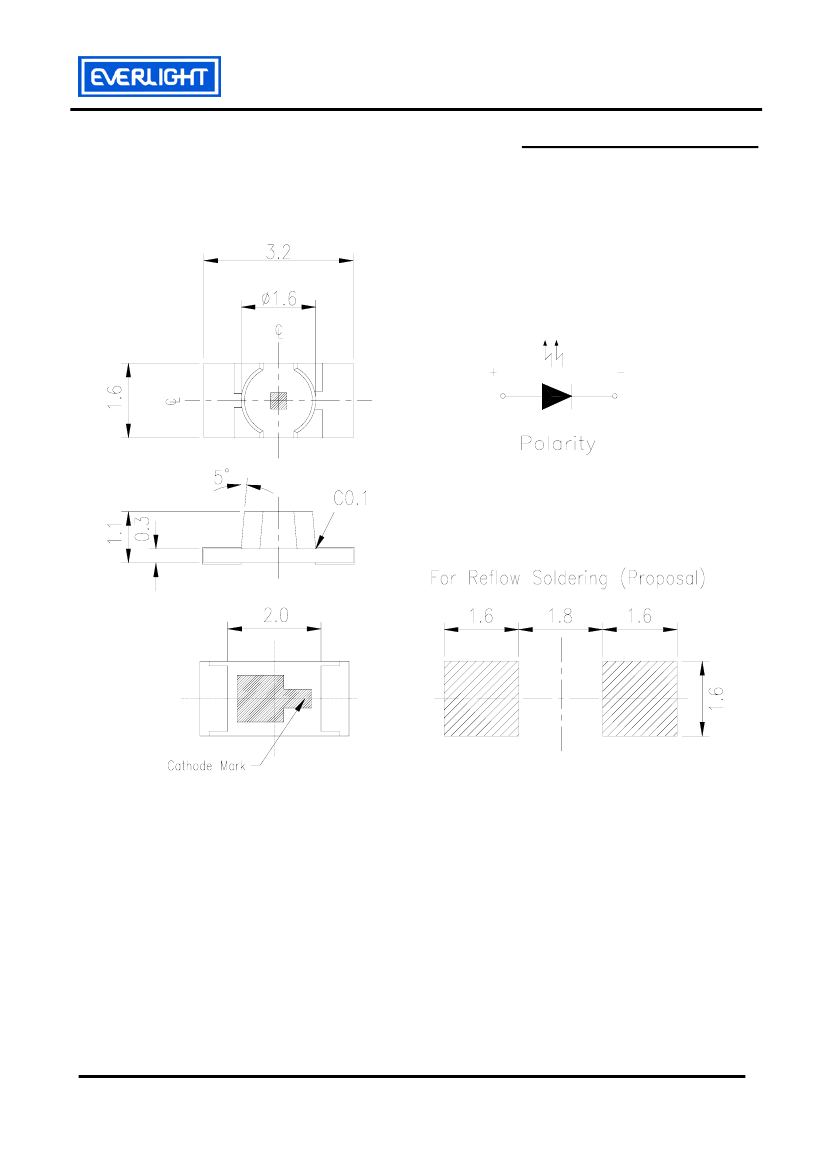

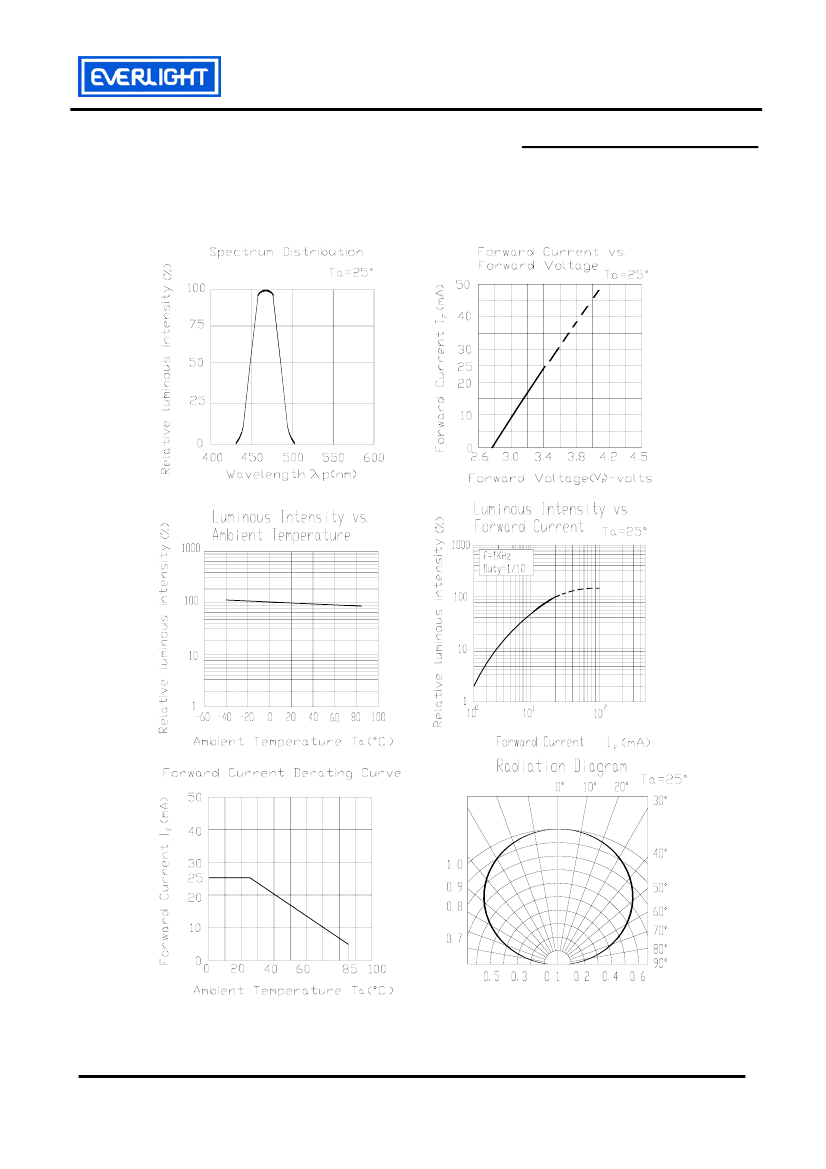

24-21/BHC-AN1P2M/2A

Features

․Package

in 8mm tape on 7〞diameter reel.

․Compatible

with automatic placement equipment.

․Compatible

with infrared and vapor phase reflow

solder process.

․Mono-color

type.

․Pb-free

․The

product itself will remain within RoHS compliant

version.

Descriptions

․The

24-21 SMD Taping is much smaller

than lead frame type components, thus

enable smaller board size, higher packing

density, reduced storage space and finally

smaller equipment to be obtained.

․Besides,

lightweight makes them ideal for

miniature applications. etc.

Applications

․Automotive:

backlighting in dashboard and switch.

․Telecommunication:

indicator and backlighting in

telephone and fax.

․Flat

backlight for LCD, switch and symbol.

․General

use.

Device Selection Guide

Part No.

24-21/BHC-AN1P2M/2A

Chip

Material

InGaN

Emitted Color

Blue

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No:SZDSE-241-B02

http://www.everlight.com

Prepared date: 07-26-2005

Rev 2

Page: 1 of 10

Prepared by: Zhao yunhai
