ABLS-LR-FREQ2-S-D-1-G-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABLS-LR-FREQ2-S-D-1-G-T

ABLS-LR-FREQ2-S-D-1-G-T: DescriptionSeries - Fundamental Quartz Crystal, 3.579545MHz Min, 4MHz Max, ROHS COMPLIANT, HERMETIC, RESISTANC WELDED, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size2MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABLS-LR-FREQ2-S-D-1-G-T Overview

Series - Fundamental Quartz Crystal, 3.579545MHz Min, 4MHz Max, ROHS COMPLIANT, HERMETIC, RESISTANC WELDED, SMD, 2 PIN

ABLS-LR-FREQ2-S-D-1-G-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, HERMETIC, RESISTANC WELDED, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
JESD-609 code	e3
Manufacturer's serial number	ABLS-LR
Installation features	SURFACE MOUNT
Maximum operating frequency	4 MHz
Minimum operating frequency	3.579545 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

HC/49US (AT49) ULTRA LOW ESR

SMD LOW PROFILE CRYSTAL

ABLS-LR

FEATURES:

• Ultra low ESR as low as 20 ohms for 4MHz, 85% lower than

typical SMD Low Profile HC49S Crystals

• Low negative resistance(-R) IC design can ensure high oscillation margin

• Tight stability and automotive grade temperature available

• Hermetically resistance weld sealed

RoHS

Compliant

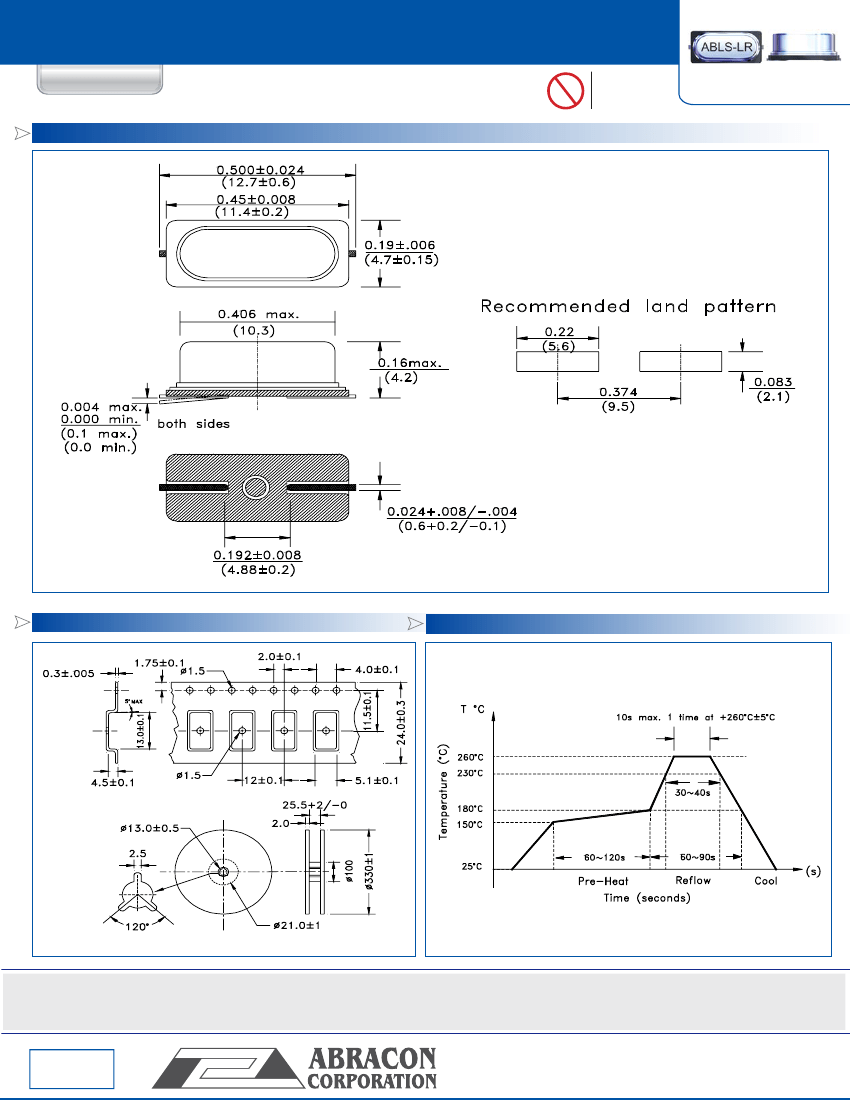

11.5 x 4.8 x 4.2 mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Low negative resistance u-controller design

for low frequency

• Wide range of automotive applications

• Industrial applications

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance

Frequency Stability over the

Operating Temp. (Ref to +25°C)

Equivalent Series Resistance (R1)

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C Per Year

Insulation Resistance

Spurious Responses

Drive level dependency (DLD)

ABLS-LR Series

3.0 MHz to 36 MHz

AT cut (Fundamental)

TABLE 1: ESR

FREQUENCY (MHz)

3.000000

3.072000

3.276800

3.500000 - 4.000000

4.000001 - 4.500000

4.500001 - 6.999999

7.000000 - 12.999999

13.000000 - 30.000000

ESR (? ) Max.

100

0°C to +70°C (see options)

-55°C to +125°C

± 50 ppm max. (see options)

3.0 ~ 3.579545MHz: ± 100 ppm max. (Standard only*)

*Please contact ABRACON for other stability specs.

3.579545 ~ 36MHz: ± 50 ppm max. (see options)

See Table 1

7pF max.

18pF (see options)

1 mW max., 100µW typical

± 5ppm max.

500 M

min at 100Vdc ± 15V

-3dB max.

from 1μW to 500μW

(

minimum 7 points tested)

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABLS - LR -

MHz -

Frequency in MHz

e.g. 3.579545MHz

14.31818MHz

24.000MHz

Freq. Tolerance

H5: ± 5 ppm

1: ± 10 ppm

7: ± 15 ppm

2: ± 20 ppm

3: ± 25 ppm

4: ± 30 ppm

Packaging

Blank: Bulk

T: Tape & Reel

Load Capacitance

Please specify CL in pF

or S for Series (10pF

minimum)

* Frequency stability R option (±150ppm) only.

Contact ABRACON for tighter frequency stability.

** -10 to +60°C only.

Operating Temp.

A: -10°C ~ +60°C

B: -20°C ~ +70°C

C: -30°C ~ +70°C

N: -30°C ~ +85°C

D: -40°C ~ +85°C

J(*): -40°C to +105°C

K(*): -40°C to +125°C

L(*): -55°C to +125°C

Freq. Stability

U(**): ± 10 ppm

G: ± 15 ppm

X: ± 20 ppm

± 25 ppm

Y: ± 30 ppm

H: ± 35 ppm

Q: ± 100 ppm

R: ± 150 ppm

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 11.30.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
