MT43C4258DJ-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MT43C4258DJ-10

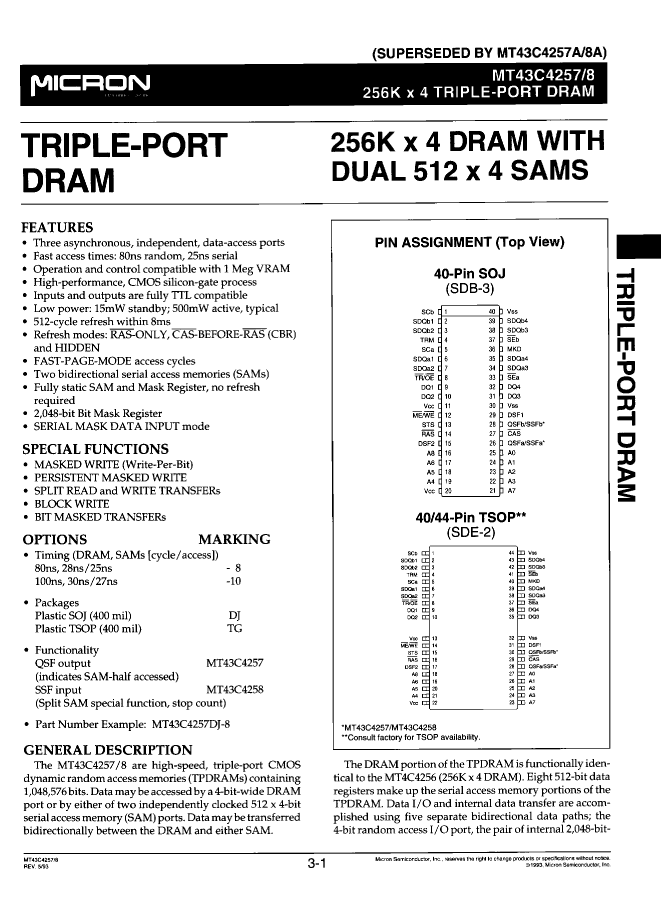

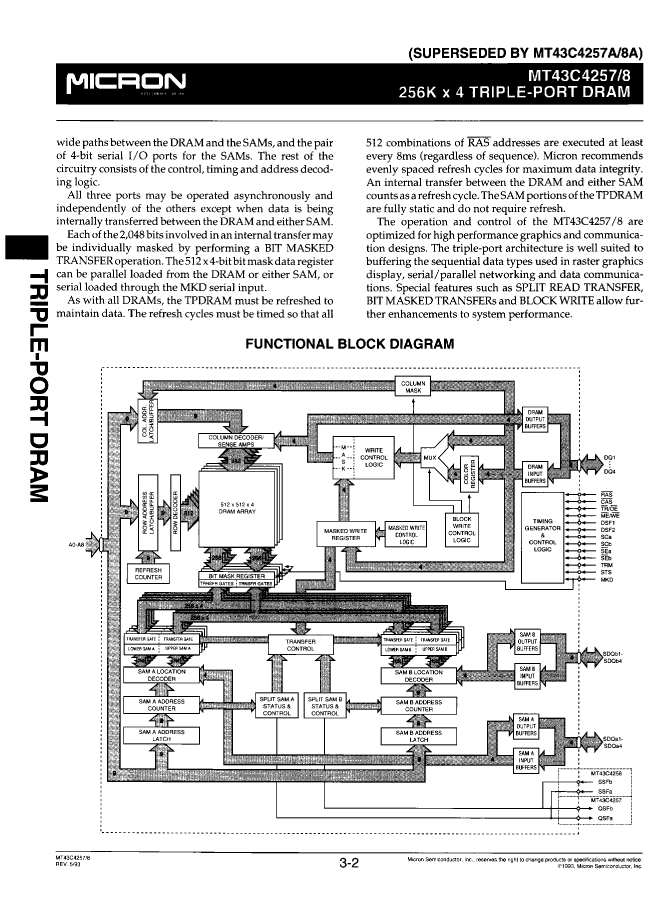

MT43C4258DJ-10: DescriptionVideo DRAM, 256KX4, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40; Categorystorage storage; File Size165KB，2 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT43C4258DJ-10 Overview

Video DRAM, 256KX4, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40

MT43C4258DJ-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micron Technology
Parts packaging code	SOJ
package instruction	0.400 INCH, PLASTIC, SOJ-40
Contacts	40
Reach Compliance Code	not_compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J40
JESD-609 code	e0
length	26.06 mm
memory density	1048576 bit
Memory IC Type	VIDEO DRAM
memory width	4
Number of functions	1
Number of ports	3
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ40,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	3.81 mm
Maximum standby current	0.002 A
Maximum slew rate	0.185 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.21 mm

Preview

Download Datasheet

View All

MT43C4258DJ-10 Related Products

	MT43C4258DJ-10	MT43C4257TG-10	MT43C4258TG-10	MT43C4257TG-8	MT43C4258TG-8	MT43C4257DJ-10	MT43C4258DJ-8	MT43C4257DJ-8
Description	Video DRAM, 256KX4, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Video DRAM, 256KX4, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40	Video DRAM, 256KX4, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40	Video DRAM, 256KX4, 80ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40	Video DRAM, 256KX4, 80ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, TSOP-44/40	Video DRAM, 256KX4, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Video DRAM, 256KX4, 80ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Video DRAM, 256KX4, 80ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	SOJ	TSOP	TSOP	TSOP	TSOP	SOJ	SOJ	SOJ
package instruction	0.400 INCH, PLASTIC, SOJ-40	0.400 INCH, PLASTIC, TSOP-44/40	0.400 INCH, PLASTIC, TSOP-44/40	0.400 INCH, PLASTIC, TSOP-44/40	0.400 INCH, PLASTIC, TSOP-44/40	0.400 INCH, PLASTIC, SOJ-40	0.400 INCH, PLASTIC, SOJ-40	0.400 INCH, PLASTIC, SOJ-40
Contacts	40	44	44	44	44	40	40	40
Reach Compliance Code	not_compliant	unknown	unknown	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	100 ns	100 ns	100 ns	80 ns	80 ns	100 ns	80 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	26.06 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	26.06 mm	26.06 mm	26.06 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of ports	3	3	3	3	3	3	3	3
Number of terminals	40	40	40	40	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	TSOP2	TSOP2	TSOP2	TSOP2	SOJ	SOJ	SOJ
Encapsulate equivalent code	SOJ40,.44	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	SOJ40,.44	SOJ40,.44	SOJ40,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	235
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512	512	512	512	512
Maximum seat height	3.81 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	3.81 mm	3.81 mm	3.81 mm
Maximum standby current	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A
Maximum slew rate	0.185 mA	0.185 mA	0.095 mA	0.205 mA	0.205 mA	0.095 mA	0.205 mA	0.205 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	GULL WING	GULL WING	GULL WING	GULL WING	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30
width	10.21 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.21 mm	10.21 mm	10.21 mm
