FT111SH5U

Description
Comparator, 1 Func, 3000uV Offset-Max, 200ns Response Time, BIPolar, MBCY8, ROHS COMPLIANT, HERMETIC SEALED, METAL CAN PACKAGE-8
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size977KB,10 Pages
ManufacturerForce Technologies Ltd.
Environmental Compliance
Download Datasheet Parametric View All

FT111SH5U Overview

Comparator, 1 Func, 3000uV Offset-Max, 200ns Response Time, BIPolar, MBCY8, ROHS COMPLIANT, HERMETIC SEALED, METAL CAN PACKAGE-8

FT111SH5U Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerForce Technologies Ltd.
Parts packaging codeBCY
package instruction,
Contacts8
Reach Compliance Codecompliant
ECCN codeEAR99
Amplifier typeCOMPARATOR
Maximum average bias current (IIB)0.075 µA
Maximum input offset voltage3000 µV
JESD-30 codeO-MBCY-W8
JESD-609 codee4
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-60 °C
Package body materialMETAL
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Nominal response time200 ns
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceGold (Au)
Terminal formWIRE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED

FT111SH5U Preview

FT111SH5U
Voltage Comparator
Voltage Comparator
The FT111 are voltage comparators that have input
currents nearly a thousand times lower than devices like
the LM106 or LM710. They are also designed to operate
over a wider range of supply voltages: from standard


±15V op amp supplies down to the single 5V supply used

for IC logic. Their output is compatible with RTL, DTL and

TTL as well as MOS circuits. Further, they can drive
lamps or relays, switching voltages up to 50V at currents

as high as 50 mA.
Both the inputs and the outputs of the FT111 can be

isolated from system ground, and the output can drive

loads referred to ground, the positive supply or the
negative supply. Offset balancing and strobe capability
are provided and outputs can be wire OR’ed. Although
slower than the LM106 and LM710 (200 ns response
time vs 40 ns) the devices are also much less prone to
spurious oscillations.
The FT111 has the same pin configuration as the

LM106 and LM710.
Features
Operates from single 5V supply
Input current: 150 nA max. over temperature
Offset current: 20 nA max. over temperature
Differential input voltage range: ±30V
Power consumption: 135 mW at ±15V

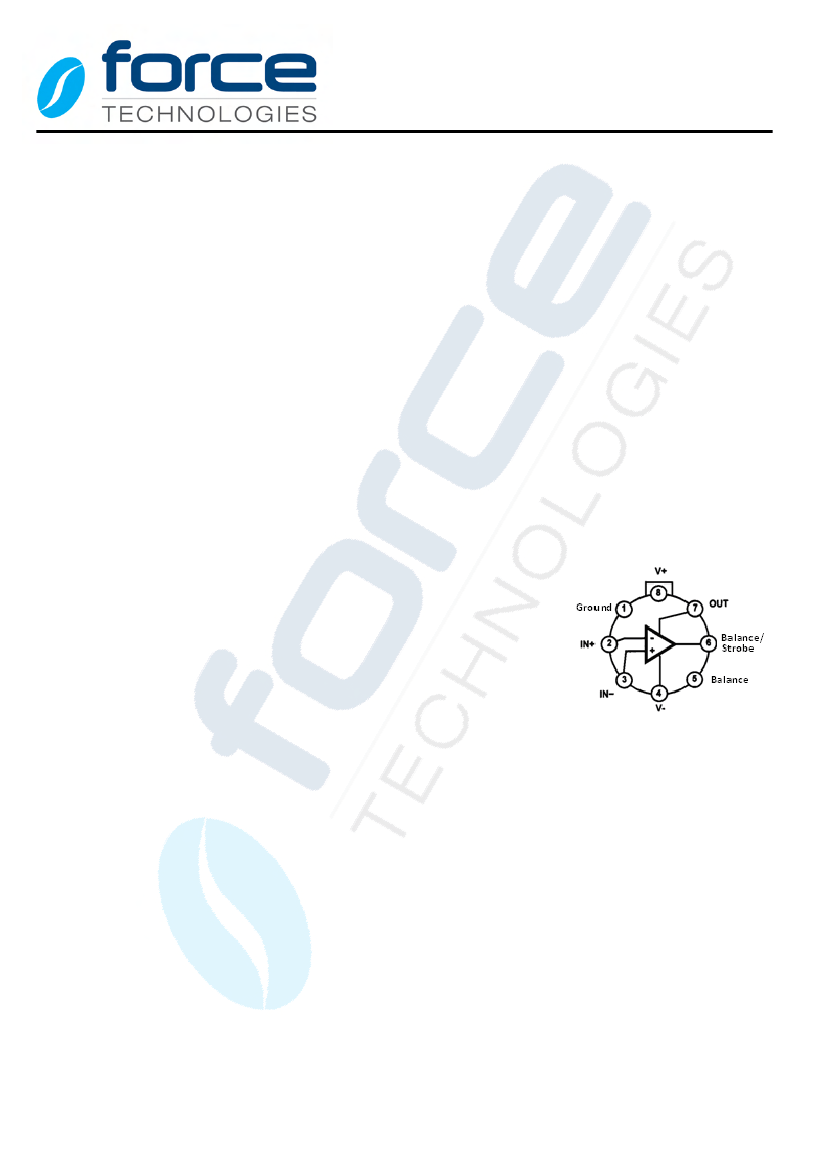

Pinout


8‐lead metal can
Top View






  Package pinout

Rev. 1
1 of 10
May 2013
FT111SH5U
Absolute Maximum Ratings

Total Supply Voltage                                                         36V
Output to Negative Supply Voltage                                50V

Ground to Negative Supply Voltage                               30V
Differential Input Voltage                                              ±30V
Input Voltage                                                                    ±15V

Output Short Circuit Duration                                    10 sec


Thermal Information

Thermal Resistance (typical)        θ
JA
 = 170 °C/W (note 1)


θ
JC
 = 85 °C/W (note 2)
Maximum Junction Temperature                               150⁰C
Lead Temperature
(Soldering, 10 seconds)                                                 300⁰C
Notes:
5.
θ
JA
 is measured with component on an
evaluation PC board in free air
6. For θ
JC
 “case temp” location is the center of
metal can

Operation Condition

Operating Ambient Temp. Range        ‐60⁰C<Ta<+125⁰C
Voltage at Strobe Pin V
+
                                                  5V


Electrical Specifications
V
SUPPLY
 = ± 15 V
Parameter
Input Offset Voltage
Offset Voltage Drift
Input  Bias Current
Input Offset Current

Offset Current Drift
Voltage Gain
Response Time
Saturation Voltage, V
IN
≤ ‐5 mV, I
OUT
= 50 mA
Strobe ON Current
Output Leakage Current
Input Voltage Range, V
+
=15V, V
=−15V, Pin 7
Pull‐Up May Go To 5V
Saturation Voltage, V
+
≥4.5V, V
=0
V
IN
≤ −6 mV, I
OUT
 ≤ 8 mA
Output Leakage Current, V
IN
  ≥ 5 mV, V
OUT
= 35V

Rev. 1
2 of 10
May 2013
Temp., °C
25
125
‐60
25 …. 125
‐60 …. 25
25
125
‐60
25
125
‐60
‐60 to 25
25 to 125
25
125
‐60
25
25
125
‐60
25
25
125
‐60
25
25
125
‐60
25
Min
‐3
‐4
‐4
‐20
‐25
‐
‐
‐
‐10
‐6
‐20
‐0.02
0.003
150
100
100

‐
‐
‐
‐
‐
‐
‐
‐14.5
‐
‐
‐
‐
Typ
0.2
0.8
‐‐0.3
‐3
45
25
60
‐0.2
0.2
1.2
0.05
0.07
200
150
180
200
0.6
0.9
0.7
0.2
100
‐
13.8,‐14.7
0.23
0.28
0.30
0.1
Max
20
25
75
75
100
10
20
0.2
0.1
‐
‐
‐
300
1.0
1.2
1.2
10
500
‐
13
0.4
0.4
0.5
0.5
Units
mV
µV/°C
nA
nA
nA/°C
kV/V
ns
mA
nA
µA

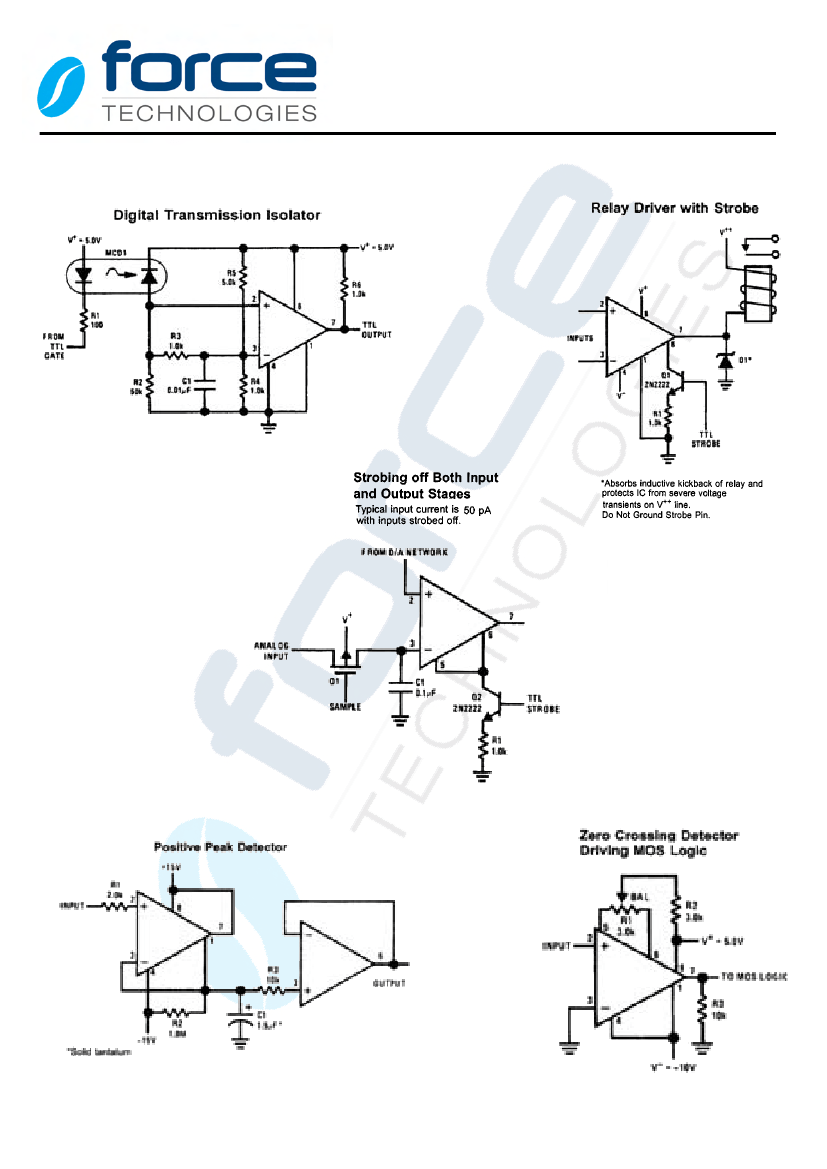

FT111SH5U





Rev. 1
3 of 10
May 2013

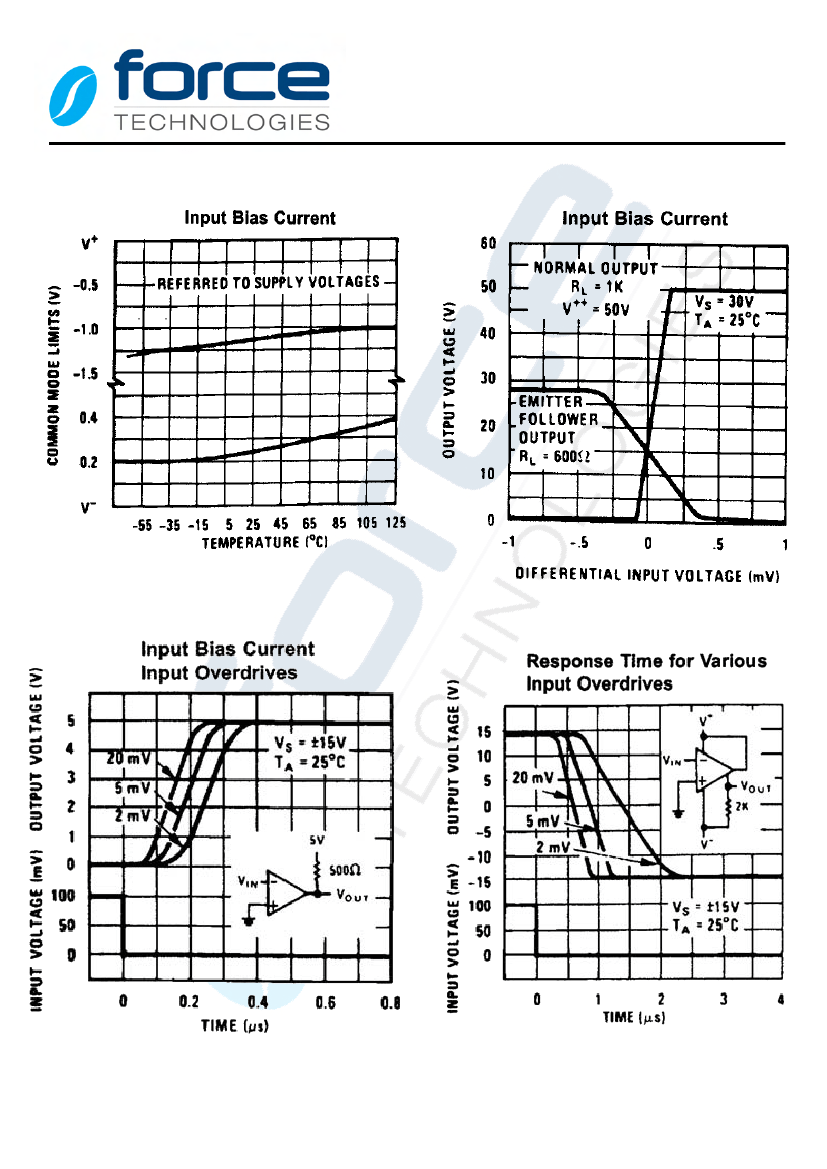

FT111SH5U






Rev. 1
4 of 10
May 2013

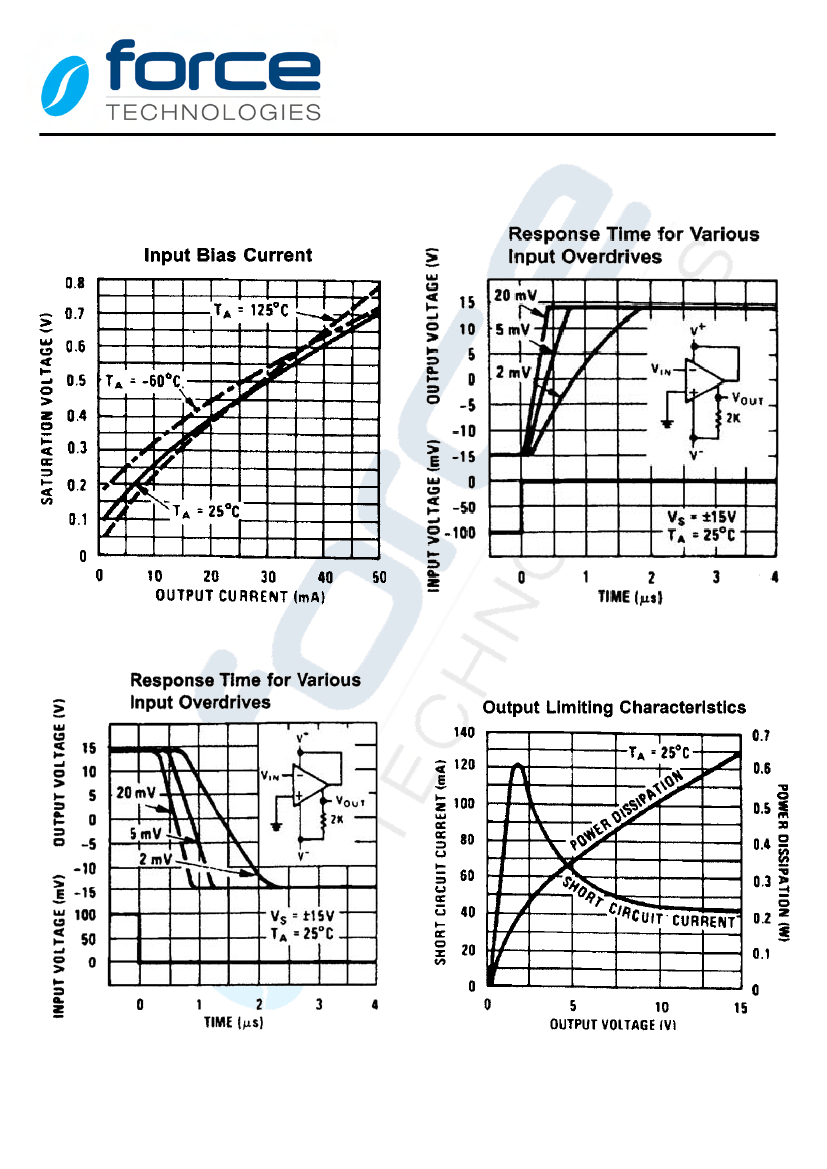

FT111SH5U





















Rev. 1
5 of 10
May 2013
