TSOP77333W

Description
Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4
CategoryLED optoelectronic/LED    photoelectric
File Size289KB，12 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

TSOP77333W Overview

Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4

TSOP77333W Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
applicationREMOTE CONTROL
ConfigurationCOMPLEX
Infrared rangeYES
Number of functions1
Maximum on-state current0.005 A
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Optoelectronic device typesLINEAR OUTPUT PHOTO IC
shapeRECTANGULAR
size6.6 mm
Minimum supply voltage2.7 V

TSOP77333W Preview

Not for New Design - Replaced by New TSOP773..W, TSOP775..W (#82467)

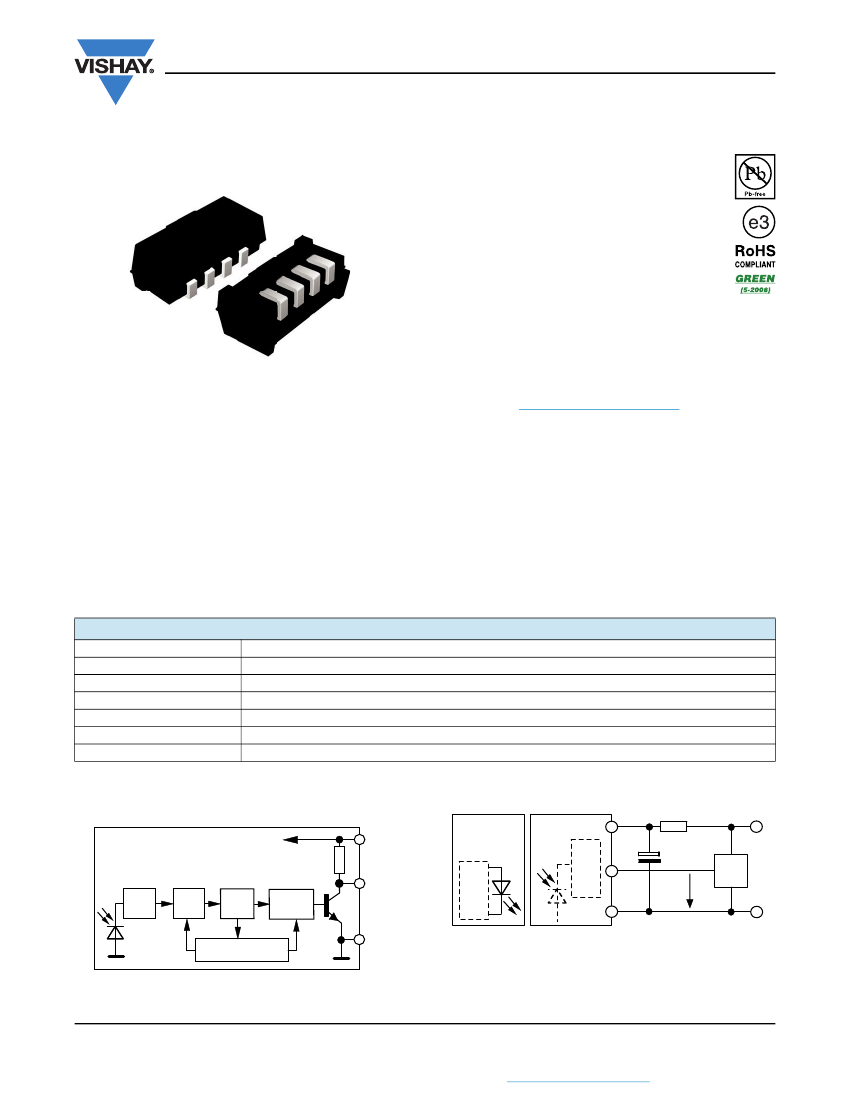

TSOP773..W
www.vishay.com
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
FEATURES
• Continuous data transmission possible
• Very low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Supply voltage: 2.7 V to 5.5 V
4
3
2
1
• Improved immunity against ambient light
• Capable of side or top view
• Insensitive to supply voltage ripple and noise
• Low profile 2.35 mm
21589
• Narrow optical filter to reduce interference from plasma
TV emissions
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
Pinning:
1, 4 = GND, 2 = V
S
, 3 = OUT
DESCRIPTION
The TSOP773..W is a miniaturized receiver module for
infrared remote control systems. One PIN diode per lens and
a preamplifier are assembled on a leadframe, the epoxy lens
cap is designed as an IR filter.
The demodulated output signal can be directly decoded by
a microprocessor. The TSOP773..W is optimized to better
suppress spurious pulses from fluorescent lamps, LCD,
TVs, or plasma displays.
This component has not been qualified according to
automotive specifications.
PARTS TABLE
CARRIER FREQUENCY
30 kHz
33 kHz
36 kHz
38 kHz
40 kHz
56 kHz
NOISY ENVIRONMENTS AND SHORT BURSTS (AGC3)
TSOP77330W
TSOP77333W
TSOP77336W
TSOP77338W
TSOP77340W
TSOP77356W
BLOCK DIAGRAM
APPLICATION CIRCUIT
17170_7
R
1
IR receiver
V
S
Circuit
C
1
OUT
GND
V
O
µC
GND
+ V
S
2
30 k
Ω
Band
pass
Demo-
dulator
V
S
3
Input
AGC
OUT
1, 4
PIN
20445-1
Transmitter
with
TSALxxxx
Control circuit
GND
The external components R
1
and C
1
are optional
to improve the robustness against electrical overstress
(typical values are R
1
= 100
Ω,
C
1
= 0.1 µF).
The output voltage V
O
should not be pulled down to a level
below 1 V by the external circuit.
The capacitive load at the output should be less than 2 nF.
1
Document Number: 83351
Rev. 1.4, 22-Mar-12
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Replaced by New TSOP773..W, TSOP775..W (#82467)
TSOP773..W
www.vishay.com
Vishay Semiconductors
TEST CONDITION
SYMBOL
V
S
I
S
V
O
I
O
T
j
T
stg
T
amb
T
amb
≤
85 °C
P
tot
VALUE
- 0.3 to + 6
5
- 0.3 to (V
S
+ 0.3)
5
100
- 25 to + 85
- 25 to + 85
10
UNIT
V
mA
V
mA
°C
°C
°C
mW
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply voltage
Supply current
Output voltage
Output current
Junction temperature
Storage temperature range
Operating temperature range
Power consumption
Note
• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability.
ELECTRICAL AND OPTICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Supply current
Supply voltage
Transmission distance
Output voltage low
Minimum irradiance
Maximum irradiance
Directivity
E
v
= 0, test signal see fig. 1,
IR diode TSAL6200,
I
F
= 400 mA
I
OSL
= 0.5 mA, E
e
= 0.7 mW/m
2
,
test signal see fig. 1
Pulse width tolerance:
t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
,
test signal see fig. 1
t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
,
test signal see fig. 1
Angle of half transmission
distance
TEST CONDITION
E
v
= 0, V
S
= 5 V
E
v
= 40 klx, sunlight
SYMBOL
I
SD
I
SH
V
S
d
V
OSL
E
e min.
E
e max.
ϕ
1/2
30
± 75
0.6
2.7
40
100
0.9
MIN.
0.65
TYP.
0.85
0.95
5.5
MAX.
1.05
UNIT
mA
mA
V
m
mV
mW/m
2
W/m
2
deg
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
Optical Test Signal
(IR diode TSAL6200, I
F
= 0.4 A, N = 6 pulses, f = f
0
, t = 10 ms)
0.35
E
e
t
po
- Output Pulse Width (ms)
0.30
0.25
0.20
0.15
Input Burst Length
0.10
0.05
0
λ
= 950 nm,
Optical Test Signal, Fig.1
0.1
1
10
10
2
10
3
10
4
10
5
Output Pulse Width
t
pi
*)
T
t
*) t
pi
≥
6/f0 is recommended for optimal function
Output Signal
V
O
V
OH
V
OL
t
d
1)
1)
2)
14337
3/f
0
< t
d
< 9/f
0
t
pi
- 4/f
0
< t
po
< t
pi
+ 6/f
0
2)
t
po
t
21391_1
E
e
- Irradiance (mW/m²)
Fig. 1 - Output Active Low
Fig. 2 - Pulse Length and Sensitivity in Dark Ambient
Rev. 1.4, 22-Mar-12
2
Document Number: 83351
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Replaced by New TSOP773..W, TSOP775..W (#82467)
TSOP773..W
www.vishay.com
Vishay Semiconductors
7
6
5
4
3
2
1
0
0.01
Wavelength of Ambient
Illumination:
λ
= 950 nm
Correlation with ambient light sources:
2
10 W/m = 1.4 kLx (Std. illum. A, T = 2855 K)
10 W/m
2
= 8.2 kLx (Daylight, T = 5900 K)
E
e
Optical Test Signal
600 µs
t = 60 ms
Output Signal,
(see fig. 4)
600 µs
t
94 8134
V
O
V
OH
V
OL
E
e min.
- Threshold Irradiance (mW/m
2
)
0.1
1
10
100
t
on
t
off
t
22190
E
e
- Ambient DC Irradiance
(W/m
2
)
Fig. 3 - Output Function
Fig. 6 - Sensitivity in Bright Ambient
E
e min.
- Threshold Irradiance (mW/m
2
)
0.8
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
1
10
100
1000
f = 10 kHz
f = 100 Hz
f = 20 kHz
f = 30 kHz
f = f
0
T
on
, T
off
- Output Pulse Width (ms)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
λ
= 950 nm,
Optical Test Signal, Fig. 3
T
on
T
off
1
10
10
2
10
3
10
4
10
5
22191
21392_1
E
e
- Irradiance (mW/m²)
ΔVs
RMS
- AC Voltage on DC Supply Voltage (mV)
Fig. 4 - Output Pulse Diagram
Fig. 7 - Sensitivity vs. Supply Voltage Disturbances
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0.7
16925
500
E
e min.
/E
e
- Rel. Responsivity
E - Max. Field Strength (V/m)
450
400
350
300
250
200
150
100
50
0
f = f
0
± 5 %
Δ
f(3 dB) = f
0
/10
0.9
1.1
1.3
0
20747
500
1000
1500
2000
2500
3000
f/f
0
- Relative Frequency
f - EMI Frequency (MHz)
Fig. 5 - Frequency Dependence of Responsivity
Fig. 8 - Sensitivity vs. Electric Field Disturbances
Rev. 1.4, 22-Mar-12
3
Document Number: 83351
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Replaced by New TSOP773..W, TSOP775..W (#82467)
TSOP773..W
www.vishay.com
Vishay Semiconductors

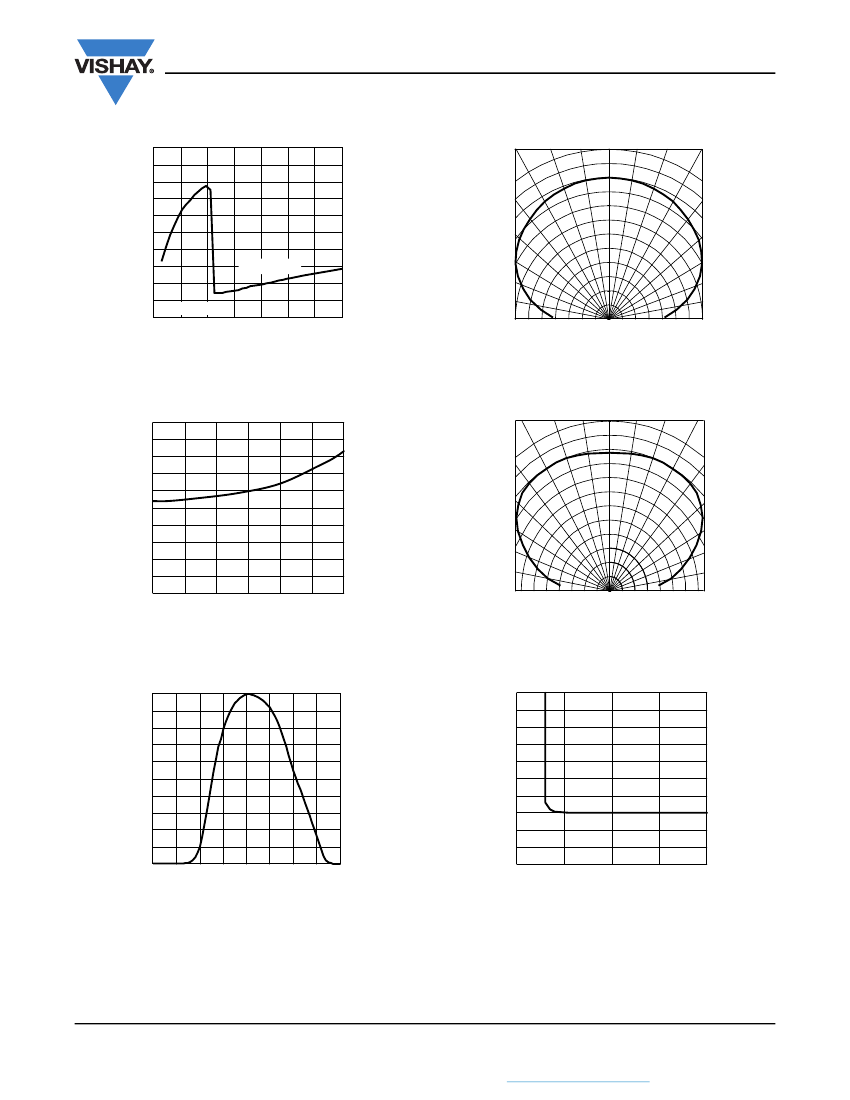

0°
10°
20°
30°
1
0.9
Max. Envelope Duty Cycle
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
E
e
= 2 mW/m²
20
40
60
80
100
120
140
22193
40°
1.0
0.9
TSOP773..W
0.8
50°
60°
70°
80°
0.6
0.4
0.2
0
21590-8
Burst Length (number of cycles/burst)
d
rel
- Relative Transmission Distance
Fig. 9 - Max. Envelope Duty Cycle vs. Burst Length
Fig. 12 - Horizontal Directivity
0°
10°
20°
E
e min.
- Threshold Irradiance (mW/m
2
)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
1.0
0.9
0.8
30°
40°
50°
60°
70°
0.2
0.1
0
- 30
- 10
10
30
50
70
90
22194
80°
0.6
0.4
0.2
0
22192
T
amb
- Ambient Temperature (°C)
d
rel
- Relative Transmission Distance
Fig. 10 - Sensitivity vs. Ambient Temperature
Fig. 13 - Vertical Directivity
S (λ)
rel
- Relative Spectral Sensitivity
1
0.9
1.3
1.2
E
e min.
- Sensitivity (mW/m
2
)
800
850
900
950 1000 1050 1100 1150
22195
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
750
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
1.5
2.5
3.5
4.5
5.5
21425
λ-
Wavelength (nm)
V
S
- Supply Voltage (V)
Fig. 11 - Relative Spectral Sensitivity vs. Wavelength
Fig. 14 - Sensitivity vs. Supply Voltage
Rev. 1.4, 22-Mar-12
4
Document Number: 83351
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Replaced by New TSOP773..W, TSOP775..W (#82467)
TSOP773..W
www.vishay.com
SUITABLE DATA FORMAT
The TSOP773..W is designed to suppress spurious output
pulses due to noise or disturbance signals. Data and
disturbance signals can be distinguished by the devices
according to carrier frequency, burst length and envelope
duty cycle. The data signal should be close to the
band-pass center frequency (e.g. 40 kHz) and fulfill the
conditions in the table below.
When a data signal is applied to the TSOP773..W in the
presence of a disturbance signal, the sensitivity of the
receiver is reduced to insure that no spurious pulses are
present at the output. Some examples of disturbance
signals which are suppressed are:
• DC light (e.g. from tungsten bulb or sunlight)
• Continuous signals at any frequency
• Strongly or weakly modulated noise from fluorescent
lamps with electronic ballasts (see fig. 15 or fig. 16)
Vishay Semiconductors
IR Signal
0
16920
5
10
15
20
Time (ms)
Fig. 15 - IR Signal from Fluorescent Lamp
with Low Modulation
IR Signal
0
16921
5
10
15
20
Time (ms)
Fig. 16 - IR Signal from Fluorescent Lamp
with High Modulation
TSOP773..W
Minimum burst length
After each burst of length
a minimum gap time is required of
For bursts greater than
a minimum gap time in the data stream is needed of
Maximum number of continuous short bursts/second
Recommended for NEC code
Recommended for RC5/RC6 code
Recommended for Sony code
Recommended for RECS-80 code
Recommended for RCMM code
Recommended for r-step code
Recommended for XMP code
Suppression of interference from fluorescent lamps
6 cycles/burst
6 to 35 cycles
≥
10 cycles
35 cycles
> 6 x burst length
2000
yes
yes
yes
yes
yes
yes
yes
Even critical disturbance signals are suppressed (e.g. waveform of figure 15)
Note
• For data formats with long bursts (10 carrier cycles or longer) we recommend the TSOP772..W, TSOP774..W because of the better noise
suppression.
Rev. 1.4, 22-Mar-12
5
Document Number: 83351
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TSOP77333W Related Products

TSOP77333W TSOP77338W TSOP77330W TSOP77356W TSOP77340W TSOP77336W
Description Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4 Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4 Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4 Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4 Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4 Photo IC, LINEAR OUTPUT PHOTO DETECTOR, GREEN, MINIATURE, PLASTIC PACKAGE-4
Maker Vishay Vishay Vishay Vishay Vishay Vishay
Reach Compliance Code unknown unknown unknown unknown unknown unknown
application REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL
Configuration COMPLEX COMPLEX COMPLEX COMPLEX COMPLEX COMPLEX
Infrared range YES YES YES YES YES YES
Number of functions 1 1 1 1 1 1
Maximum on-state current 0.005 A 0.005 A 0.005 A 0.005 A 0.005 A 0.005 A
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Optoelectronic device types LINEAR OUTPUT PHOTO IC LINEAR OUTPUT PHOTO IC LINEAR OUTPUT PHOTO IC LINEAR OUTPUT PHOTO IC LINEAR OUTPUT PHOTO IC LINEAR OUTPUT PHOTO IC
shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
size 6.6 mm 6.6 mm 6.6 mm 6.6 mm 6.6 mm 6.6 mm
Minimum supply voltage 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V

Recommended Resources

Rice cooker operation display circuit

High current switching regulated power supply application circuit

Two mutually backup motors share a phase failure protection circuit

Two-speed motor automatic acceleration control circuit

Xia Pu C-1460 color TV protection circuit

Field output circuit: LA7841

Designing a short-range RF link into a consumer-electronics product
Designing a short-range RF link into a consumer-electronics product Design a short-range wireless (RF) device to connect to consumer electronics Case study: Learn from the pitfalls and heartaches of a...
f117c RF/Wirelessly
Photovoltaic Application Research II
Photovoltaic application research 2: long-life maintenance-free high-rise building signal lights. High-rise buildings in cities must be equipped with signal indicator lights to prevent aircraft from c...
zhang2017yi Energy Infrastructure?
[Sharing my experience] Chronos sports watch first experience
[align=left][font=微软雅黑][size=3]TI's Chronos watch has been around for a long time, and I've been coveting it for a long time. Unfortunately, it's expensive, and it doesn't have a 2.4GHz frequency, whi...
nightseas Microcontroller MCU
Thanks to EE and TI, received the prize 'Superman'
[i=s]This post was last edited by lcofjp on 2017-2-9 14:16[/i] Thanks to EE and TI. I received the customized 'Superman' as a prize of the "TI New Year Essay Contest" at noon today. I like it very muc...
lcofjp Talking
Upgrade ideas
Recently, I saw that our forum has been upgraded again, adding many functions, becoming more user-friendly, and paying more and more attention to quality! However, it is not enough to rely on a few ad...
gaoxiao Microcontroller MCU
Connection between microcontroller and gsm module
Does anyone have an example of the transceiver program for connecting wavecom and 51 microcontroller? Please let me see it and learn from it. Thank you....
maidi0018 Embedded System
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. RNC55H7502BSRE6
  2. LCAN4-14-L
  3. 40.0MHZCFPT-9006FX1BLF
  4. DC705
  5. GMPM1-G101RT618F2-460R
  6. PFC-D1206-02-7322-7322-FF
  7. SL3-081-SH113/02-77
  8. 8000106
  9. BAV21WS
  10. P6SMB27A
  11. P6SMB75CA-AU_R2_100A1
  12. CR0603D7150P05

Popular Articles

  1. Initial experience in developing Bootloader for Freescale MCU series
  2. Simulation of the world: parallel current sharing characteristics of SiC MOSFET single tube
  3. Omdia: Mini LED TV shipments to reach 25 million units in 2025
  4. BYD is engaged in "acupuncture", Lantu is developing "amber" and "mica", they all have a bright future
  5. China has developed a lithium battery that can be fully charged in 5 minutes, which is the world's leading technology and has begun trial use
  6. Centrifugal compressor structure principle_What are the uses of centrifugal compressor
  7. DxO PhotoLab 5: Upgraded local adjustments and a more powerful photo gallery
  8. Xinjie Energy: The company's SiC MOSFET and other products are in the tape-out verification stage
  9. FAQs about IAR Compilers
  10. Ming-Chi Kuo predicts Apple's second-generation AirPods Pro will have a new look, lossless audio

Technical ResourceMore

  1. Design and simulation of octave electronic piano based on Multisim
  2. Inclination sensor detects track unevenness
  3. ASP.NET Programming Basics and Applications Electronic Lesson Plan
  4. Computer Numerical Control (CNC)
  5. Design of Bluetooth temperature sensor
  6. Graduation Project Management Platform Based on SSH
  7. Frequency calculation method analysis and error analysis
  8. Test Signal Analysis and Processing Technology of Virtual Instrument
  9. Thermal Issues of High-Power LEDs
  10. LPC11114 complete schematic diagram

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 494  2462  457  1175  296  10  50  24  6  7
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
