ABM11-20.000000-S-R200-B-2-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM11-20.000000-S-R200-B-2-T

ABM11-20.000000-S-R200-B-2-T: DescriptionSeries - Fundamental Quartz Crystal, 20MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size263KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM11-20.000000-S-R200-B-2-T Overview

Series - Fundamental Quartz Crystal, 20MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4

ABM11-20.000000-S-R200-B-2-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	20 ppm
JESD-609 code	e4
Manufacturer's serial number	ABM11
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.0XB1.6XH0.45 (mm)/L0.079XB0.063XH0.018 (inch)
Series resistance	200 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

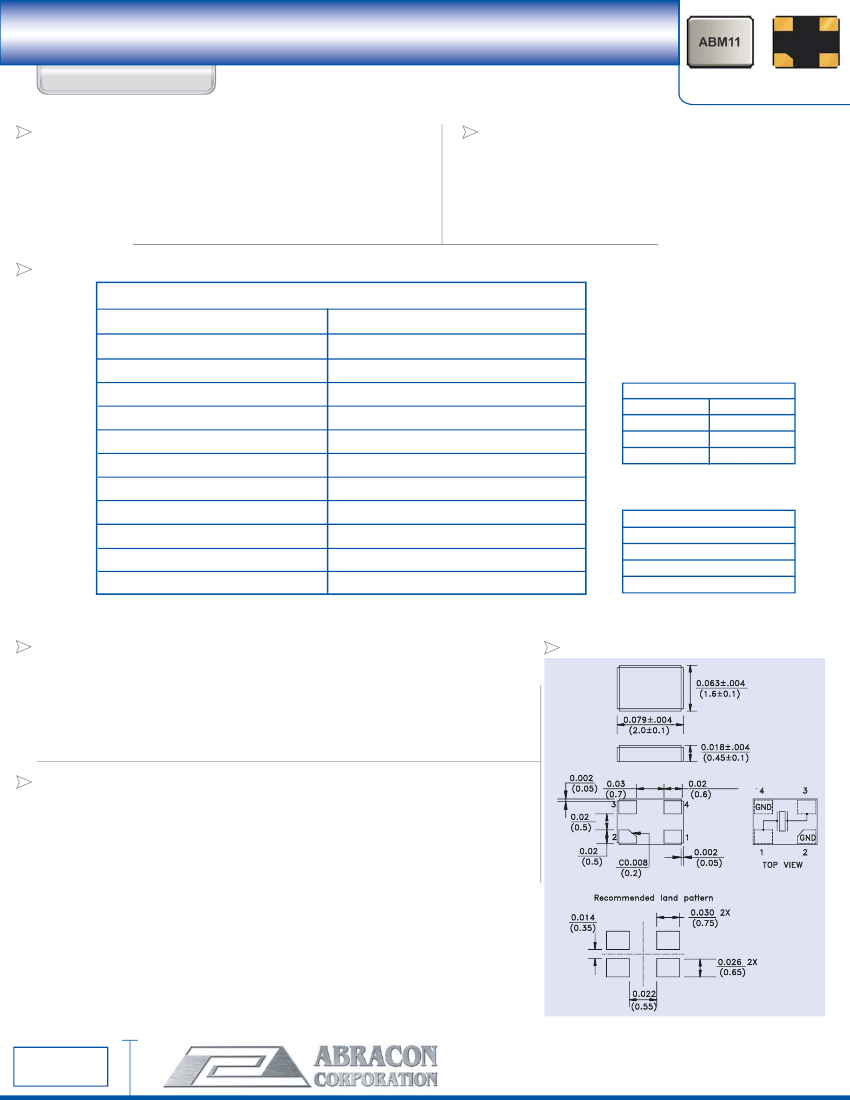

CERAMIC SMD ULTRA MINIATURE QUARTZ CRYSTAL

ABM11

*RoHS COMPLIANT

2.0 X 1.6 X 0.45mm

| | | | | | | | | | | | | | |

FEATURES:

• RoHS compliant

• Suitable for reflow

• Tight stability available

• Ceramic package seam welded sealing assures

high precision and reliability.

APPLICATIONS:

• Blue-tooth, Wireless applications

• Computers, Modems, Microprocessors

• Communication, Test equipment

• High density applications

• PCMCIA

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance @ 25°C

Frequency Stability

Equivalent Series Resistance

Shunt Capacitance C0

Load Capacitance CL

Drive Level

Aging (First Year) @ 25°C ± 3°C

Insulation Resistance

20.000 MHz - 80.000 MHz*

Fundamental

- 10°C to + 60°C (see options)

- 40°C to + 85°C

± 30 ppm max. (see options)

± 50 ppm max. (see options)

See table 1

7 pF max.

10 pF (see options)

200

µW

max., 10

µW

correlation

± 5ppm max.

500 MΩ min at 100Vdc ± 15 Vdc

TABLE 1

FREQ (MHz) ESR (

Ω

)max.

20.0 - 25.0

200

25.0 - 40.0

100

40.0 - 80.0

Developed Frequency List

18.000000

26.000000

20.000000

27.000000

22.000000

27.003800

24.545450

28.636363

*please refer to list of developed frequencies, contact factory for additional frequencies

MARKING:

- XX.X

- A ZYX

(Frequency)

(ZY:date code, e.g. L2; Z:

month A to L;

Y: last digit of year;

X: Traceability code)

OUTLINE DRAWING:

OPTIONS AND PART IDENTIFICATION (Left blank if standard)*:

ABM11 - Frequency - CL - ESR - Temperature - Tolerance - Stability - Packaging

Load Capacitance option:

Please specify

CL in pF

for Series (min 10 pF)

ESR option:

RXXX (value in ohms)

Packaging option:

T for Tape and Reel

(1,000pcs/reel)

Temperature options:

for -20°C to +70°C

for -40°C to +85°C

Freq Tolerance options:

for ± 15 ppm

for ± 20 ppm

for ± 50 ppm

Freq Stability options:

for ± 10 ppm

for ± 15 ppm

for ± 20 ppm

for ± 30 ppm

for ± 100 ppm

*not all combinations/configurations are available, please contact factory for availability.

rev1.1-2/05

Dimensions: inch (mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
