ABM11-FREQ-10-R200-B-Z-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM11-FREQ-10-R200-B-Z-T

ABM11-FREQ-10-R200-B-Z-T: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Min, 25MHz Max, ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size235KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM11-FREQ-10-R200-B-Z-T Overview

Parallel - Fundamental Quartz Crystal, 20MHz Min, 25MHz Max, ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN

ABM11-FREQ-10-R200-B-Z-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	30 ppm
load capacitance	10 pF
Manufacturer's serial number	ABM11
Installation features	SURFACE MOUNT
Maximum operating frequency	25 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.0XB1.6XH0.45 (mm)/L0.079XB0.063XH0.018 (inch)
Series resistance	200 Ω
surface mount	YES

Preview

Download Datasheet

View All

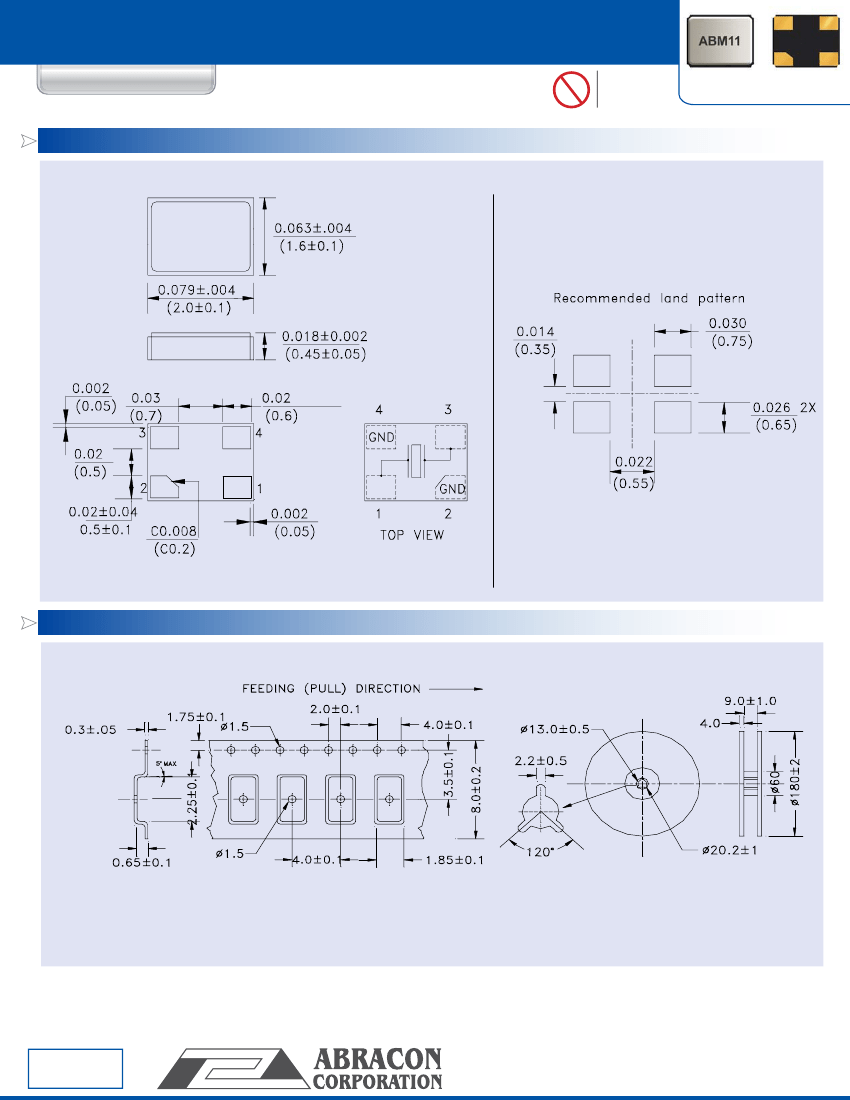

CERAMIC SMD ULTRA MINIATURE QUARTZ CRYSTAL

ABM11

FEATURES:

• Fundamental mode.

• Suitable for reflow.

• Tight Stability available.

• Ceramic package and metal lid assures high precision and reliability.

• Seam sealing.

RoHS

Compliant

2.0 X 1.6 X 0.45mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Cellular telephones, Pagers.

• Communication and Test equipment.

• High Density applications.

• PCMCIA and wireless applications.

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance*

Frequency Stability over the

Operating Temperature

(Ref to + 25°C)

Equivalent Series Resistance

Shunt Capacitance C0

Load Capacitance CL

Drive Level

Aging (First Year) @ 25°C ± 3°C

Insulation Resistance

ABM11 Series

18.000 MHz - 80.000 MHz*

Fundamental

-10°C to +60°C (see options)

-40°C to +85°C

± 30 ppm max. (see options)

TABLE 1- Standard ESR

Frequency (MHz)

ESR(Ω) max

18.0.0 - 20.0

300

200

20.0 - 25.0

100

25.0 - 40.0

40.0 - 80.0

Developed frequency list

18.000000

26.000000

27.000000

20.000000

27.003800

22.000000

28.636363

24.545450

*please refer to list of developed frequencies

contact ABRACON for additional frequencies

± 50 ppm max. (see options)

See table 1

7 pF max.

10 pF (see options)

100

W max., 10

W typical

± 5ppm max.

500 MΩ min at 100Vdc ± 15 V

(Note)*: Tolerance and Temp stability do not include Mechanical, Environmental, and Aging frequency shift.

OPTIONS AND PART IDENTIFICATION:

ABM11 - Frequency -

-R

Frequency

XX.XXXXMHz

Load Capacitance

Please specify CL in pF or

S for Series (minimum 8pF)

Operating Temp

0°C to +50°C

0°C to +70°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Packaging

Tape and

Reel

Custom ESR

RXXX (value in ohms

if it is custom.)

Freq. Tolerance

± 15 ppm

± 20 ppm

± 50 ppm

Freq. Stability

± 10 ppm

G**

± 15 ppm

X***

± 20 ppm

± 30 ppm

± 100 ppm

* Temp option I only

** Temp option I and E only

*** Temp option I, E, and B only

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised (A): 03.11.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
