54F158ALM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F158ALM

54F158ALM: DescriptionMultiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size367KB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54F158ALM Overview

Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20

54F158ALM Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	8 ns
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm

Preview

Download Datasheet

View All

54F 74F158A Quad 2-Input Multiplexer

November 1994

54F 74F158A

Quad 2-Input Multiplexer

General Description

The ’F158A is a high speed quad 2-input multiplexer It se-

lects four bits of data from two sources using the common

Select and Enable inputs The four outputs present the se-

lected data in the inverted form The ’F158A can also gener-

ate any four of the 16 different functions of two variables

Features

Guaranteed 4000V minimum ESD protection

74F158APC

54F158ADM (Note 2)

74F158ASC (Note 1)

74F158ASJ (Note 1)

54F158AFM (Note 2)

54F158ALM (Note 2)

N16E

J16A

M16A

16-Lead (0 300 Wide) Molded Dual-In-Line

16-Lead Ceramic Dual-In-Line

M16D

W16A

E20A

Note 1

Devices also available in 13 reel Use suffix

SCX and SJX

Note 2

Military grade device with environmental and burn-in processing Use suffix

DMQB FMQB and LMQB

Logic Symbols

Pin Assignment for

DIP SOIC and Flatpak

TL F 9484–3

IEEE IEC

TL F 9484–5

TRI-STATE is a registered trademark of National Semiconductor Corporation

1995 National Semiconductor Corporation

TL F 9484

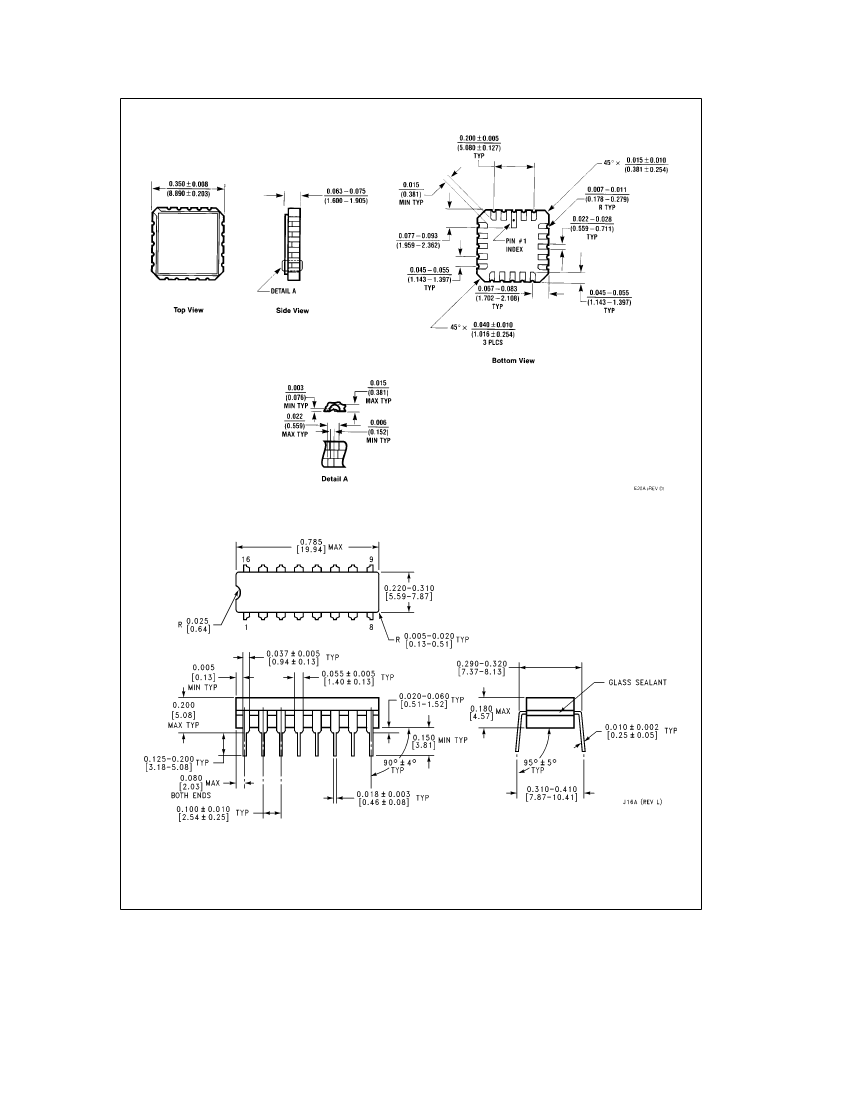

16-Lead (0 300 Wide) Molded Small Outline EIAJ

16-Lead Cerpack

20-Lead Ceramic Leadless Chip Carrier Type C

16-Lead (0 150 Wide) Molded Small Outline JEDEC

Connection Diagrams

Pin Assignment

for LCC

TL F 9484 – 1

TL F 9484 – 2

RRD-B30M75 Printed in U S A

Commercial

Military

Package

Number

Package Description

54F158ALM Related Products

	54F158ALM	54F158AFM
Description	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16, CERAMIC, FP-16
package instruction	QCCN,	DFP,
Reach Compliance Code	unknown	unknown
series	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDFP-F16
length	8.89 mm	9.6645 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4
Number of entries	2	2
Output times	1	1
Number of terminals	20	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK
propagation delay (tpd)	8 ns	8 ns
Maximum seat height	1.905 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
width	8.89 mm	6.604 mm
