SGA-9189

Description
Wide Band Medium Power Amplifier, 50MHz Min, 3000MHz Max, SOT-89, 3 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size187KB,6 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Download Datasheet Parametric Compare View All

SGA-9189 Overview

Wide Band Medium Power Amplifier, 50MHz Min, 3000MHz Max, SOT-89, 3 PIN

SGA-9189 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerQorvo
Reach Compliance Codeunknown
Characteristic impedance50 Ω
structureCOMPONENT
Gain11.2 dB
JESD-609 codee0
Maximum operating frequency3000 MHz
Minimum operating frequency50 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
RF/Microwave Device TypesWIDE BAND MEDIUM POWER
Terminal surfaceTin/Lead (Sn/Pb)

SGA-9189 Preview

SGA-9189(Z)
Medium Power
Discrete SiGe
Transistor
SGA-9189(Z)
MEDIUM POWER DISCRETE SiGe TRANSISTOR
RFMD Green, RoHS Compliant, Pb-Free (Z Part Number)
Package: SOT-89
Product Description
RFMD’s SGA-9189 is a high performance transistor designed for operation to
3GHz. With optimal matching at 2GHz, OIP
3
=39dBm, and P
1dB
=25.5dBm. This RF
device is based on a Silicon Germanium Heterostructure Bipolar Transistor (SiGe
HBT) process. The SGA-9189 is cost-effective for applications requiring high linear-
ity even at moderate biasing levels. It is well suited for operation at both 5V and 3V.
The matte tin finish on the lead-free package utilizes a post annealing process to
mitigate tin whisker formation and is RoHS compliant per EU Directive 2002/95.
This package is also manufactured with green molding compounds that contain no
antimony trioxide nor halogenated fire retardants.
Optimum Technology
Matching® Applied
GaAs HBT
GaAs MESFET
InGaP HBT
Gmax (dB)
Features
Available in RoHS Compliant and
Green Packaging
50MHz to 3000MHz Operation
39dBm Output IP
3
Typ. at
1.96GHz
12.2dB Gain Typ. at 1.96GHz
25.5dBm P
1dB
Typ. at 1.96GHz
2.1dB NF Typ. at 0.9GHz
Typical Gmax, OIP3, P1dB @ 5V,180mA
Cost-Effective
44
42
40
38
36
34
32
30
28
26
24
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
RF MEMS
25
23
21
19
17
15
13
11
9
7
5
3V to 5V Operation
OIP3, P1dB (dBm)
OIP3
Applications
Wireless Infrastructure Driver
Amplifiers
CATV Amplifiers
Wireless Data, WLL Amplifiers
AN-021 Contains Detailed Appli-
cation Circuits
Gmax
P1dB
0.9 1.1 1.3 1.5 1.7 1.9 2.1 2.3 2.5
Frequency (GHz)
Parameter
Maximum Available Gain
Power Gain
Output Power at 1dB Compression
Min.
17.5
11.2
23.5
Specification
Typ.
20.5
13.2
19.0
12.2
40
25.5
40.0
Max.
20.5
13.2
Unit
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dB
dB
V
°C/W
V
mA
Condition
900MHz, Z
S
=Z
S
*, Z
L
=Z
L
*
1960MHz
900MHz [1], Z
S
=Z
SOPT
, Z
L
=Z
LOPT
1960MHz [2]
900MHz, Z
S
=Z
SOPT
, Z
L
=Z
LOPT
1960MHz [2]
900MHz, Z
S
=Z
SOPT
, Z
L
=Z
LOPT,
P
OUT
=+10dBm per
tone
1960MHz [2]
900MHz, Z
S
=Z
SOPT
, Z
L
=Z
LOPT
1960MHz
collector - emitter
junction - lead
collector - emitter
Output Third Order Intercept Point
36.5
39.0
Noise Figure
2.1
2.6
DC Current Gain
100
180
300
Breakdown Voltage
7.5
8.5
Thermal Resistance
47
Device Operating Voltage
5.5
Operating Current
155
180
195
Test Conditions: V
CE
=5V, I
CQ
=180mA (unless otherwise noted), T
L
=25°C.
[1] 100% Tested [2] Sample Tested
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.
EDS-101497 Rev I
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.
1 of 6
SGA-9189(Z)
Absolute Maximum Ratings
Parameter
Max Base Current (IB)
Max Device Current (ICE)
Max Collector-Emitter Voltage (VCEO)
Max Collector-Base Voltage (VCBO)
Max Emitter-Base Voltage (VEBO)
Max Junction Temp (TJ)
Operating Temp Range (TL)
Max Storage Temp
Rating
5
200
7
20
4.8
+150
See Graph
+150
Unit
mA
mA
V
V
V
°C
°C
Caution! ESD sensitive device.
Exceeding any one or a combination of the Absolute Maximum Rating conditions may
cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical perfor-
mance or functional operation of the device under Absolute Maximum Rating condi-
tions is not implied.
RoHS status based on EUDirective2002/95/EC (at time of this document revision).
The information in this publication is believed to be accurate and reliable. However, no
responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any
infringement of patents, or other rights of third parties, resulting from its use. No
license is granted by implication or otherwise under any patent or patent rights of
RFMD. RFMD reserves the right to change component circuitry, recommended appli-
cation circuitry and specifications at any time without prior notice.
*Note: Load condition1, Z
L
=50Ω.
Operation of this device beyond any one of these limits may cause permanent dam-
age. For reliable continuous operation, the device voltage and current must not
exceed the maximum operating values specified in the table on page one.
Bias Conditions should also satisfy the following expression:
I
D
V
D
<(T
J
-T
L
)/R
TH
, j-l and T
L
=T
LEAD
Typical Performance with Engineering Application Circuit
Freq
(MHz)
945
1960
2140
2440
1
VCE
(V)
5
5
5
5
ICQ
(mA)
184
179
180
180
P1dB
(dBm)
25.8
25.5
25.4
25.4
OIP3
1
(dBm)
39.5
40.0
39.0
40.0
Gain
(dB)
18.8
12.2
11.3
10.2
S11
(dB)
-14
-23
-20
-20
S22
(dB)
-26
-21
-14
-17
NF
(dB)
2.1
2.4
2.6
2.7
ZSOPT
(Ω)
6.8 -j0.85
7.6 - j11.2
18.1 + j3.4
5.6 - j15.1
ZSOPT
(Ω)
16 + j5.9
22.8 + j0.7
23.8 - j9.0
23.1 - j2.7
P
OUT
=+10dBm per tone for V
CE
=5V, 1MHz tone spacing
Typical Performance with Engineering Application Circuit
Freq
(MHz)
945
1960
2440
2
P
OUT
=+6dBm
VCE
(V)
3
3
3
ICQ
(mA)
165
162
165
P1dB
(dBm)
22.1
22.4
23.2
OIP3
2
(dBm)
34.3
35.0
35.3
Gain
(dB)
17.7
11.8
9.9
S11
(dB)
-18
-18
-20
S22
(dB)
-11
-16
-15
NF
(dB)
2.1
2.2
2.6
ZSOPT
(Ω)
9.6 - j1.6
7.8 - j13.1
8.1 - j16.0
ZSOPT
(Ω)
11.0 + j1.4
19.3 - j2.9
21.0 - j6.5
per tone for V
CE
=3V, 1MHz tone spacing
Data above represents typical performance of the application circuits notes in Application Note AN-021. Refer to the applica-
tion note for additional RF data, PCB layouts, and BOMs for each application circuit. The application note also includes biasing
instructions and other key issues to be considered. For the latest application notes please visit our site at wwww.RFMD.com or
call your local sales representative.
Maximum Recommended Operational
Dissipated Power
1.20
Total Dissipated Power (W)
C
1.00
0.80
0.60
0.40
0.20
0.00
-40
-10
20
50
80
110
140
Lead Temperature (C)
Operational Limit (Tj<130C)
B
Z
LOPT
Z
SOPT
E
2 of 6
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.
EDS-101497 Rev I
SGA-9189(Z)

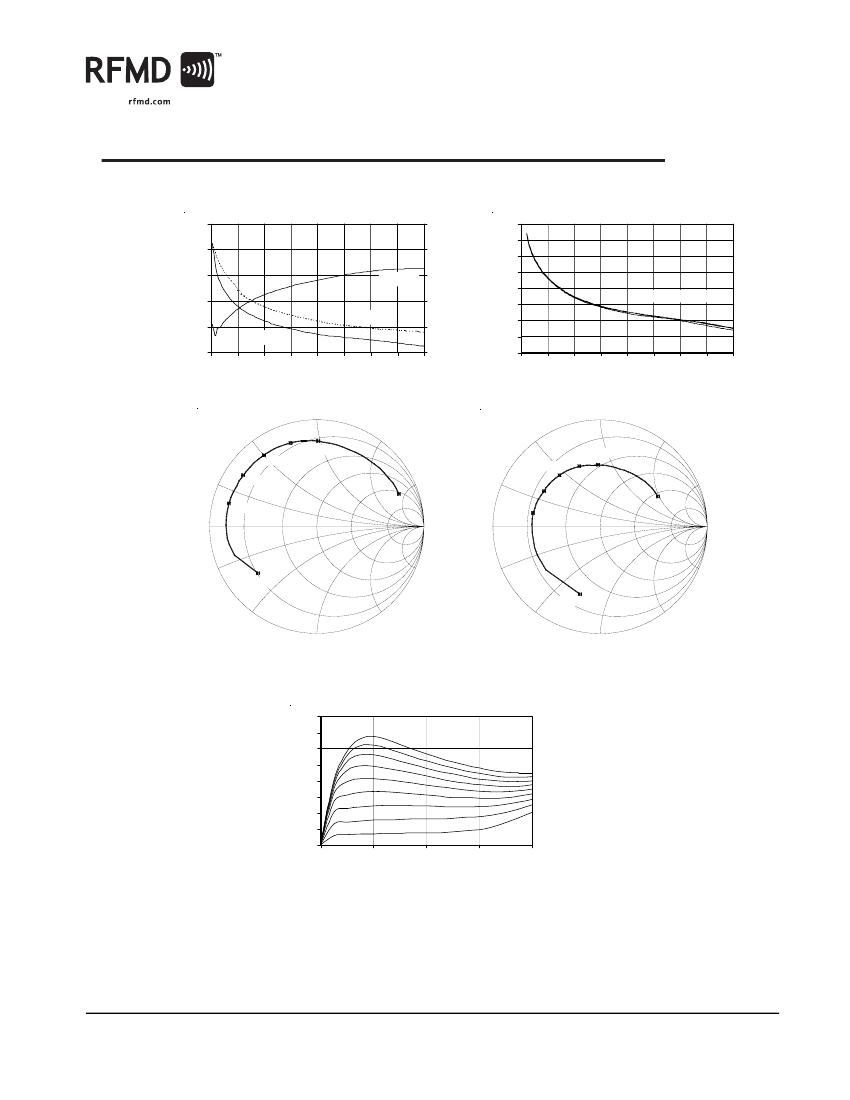

De-embedded S-Parameters (Z
S
=Z
L
=50 Ohms, V
CE
=5V, I
CQ
=185mA, 25
°
C)
45
35
Insertion Gain & Isolation
5
-5
25
15
5
Gain
Isolation
-15
-25
Gain vs. Temp (dB)
Gain (dB)
30
25
20
15
10
5
0
Insertion Gain vs Temperature
Isolation (dB)
T = -40, 25, 85°C
Gmax
-35
-45
-5
0
1
2
3
4
5
6
7
8
-5
-10
0
1
2
3
4
5
6
7
8
Frequency (GHz)
S11 vs Frequency
1.0
0.5
Frequency (GHz)
S22 vs Frequency
1.0
2.0
0.5
2.0
4 GHz
5 GHz
3 GHz
4 GHz
3 GHz
5.0
0.2
5 GHz
0.2
2 GHz
8 GHz
1 GHz
5.0
2 GHz
8 GHz
1 GHz
0.0
0.2
0.5
1.0
2.0
5.0
inf
0.0
0.2
0.5
1.0
2.0
5.0
inf
S11
0.2
5.0
0.2
5.0
50 MHz
S22
50 MHz
0.5
2.0
0.5
2.0
1.0
1.0
Note: S-parameters are de-embedded to the device leads with Z
S
=Z
L
=50Ω. The data represents typical performace of the device.
De-embedded s-parameters can be downloaded from our website (www.sirenza.com).
400
350
300
DC-IV Curves
I
b
= 0.4 - 3.6 mA , 0.4 mA steps
T=25C
I
C
(mA)
250
200
150
100
50
0
0
2
4
6
8
V
CE
(V)
EDS-101497 Rev I
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.
3 of 6
SGA-9189(Z)
Pin
1
2
3
4
Function
Base
Emitter
Collector
Emitter
Description
RF input.
Connection to ground. Use via holes to reduce lead inductance. Place vias as close to ground leads as possible.
RF output.
Same as pin 2.
Recommended Mounting Configuration for Optimum RF and Thermal
Performance
Ground Plane
Plated Thru
Holes
(0.020" DIA)
SOT-89
Package
Machine
Screws
Mounting and Thermal Considerations
It is very important that adequate heat sinking be provided to minimize the device junction temperature. The following items
should be implemented to maximize MTTF and RF performance.
1. Multiple solder-filled vias are required directly below the ground tab (pin 4). [CRITICAL]
2. Incorporate a large ground pad area with multiple plated-through vias around pin 4 of the device. [CRITICAL]
3. Use two point board seating to lower the thermal resistance between the PCB and mounting plate. Place machine screws as
close to the ground tab (pin 4) as possible. [RECOMMENDED]
4. Use 2 ounce copper to improve the PCB’s heat spreading capability. [RECOMMENDED]
4 of 6
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.
EDS-101497 Rev I
SGA-9189(Z)
Package Drawing
Dimensions in inches (millimeters)
Refer to drawing posted at www.rfmd.com for tolerances.
.161
3
.177 .068
P1
.096
.016
.019 .118
4
1
2
.041
.059
.015
Part Symbolization
The part will be symbolized with the “P1” (“P1Z” for RoHS version) designator and a dot signifying pin 1 on the top surface of
the package. Alternate marking “SGA9189Z” or “SGA9189” on line one with Trace Code on line two.
Ordering Information
Part Number
SGA-9189
SGA-9189Z
Reel Size
13”
13”
Devices/Reel
3000
3000
EDS-101497 Rev I
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or sales-support@rfmd.com.
5 of 6

SGA-9189 Related Products

SGA-9189
Description Wide Band Medium Power Amplifier, 50MHz Min, 3000MHz Max, SOT-89, 3 PIN
Is it Rohs certified? incompatible
Maker Qorvo
Reach Compliance Code unknown
Characteristic impedance 50 Ω
structure COMPONENT
Gain 11.2 dB
JESD-609 code e0
Maximum operating frequency 3000 MHz
Minimum operating frequency 50 MHz
Maximum operating temperature 85 °C
Minimum operating temperature -40 °C
RF/Microwave Device Types WIDE BAND MEDIUM POWER
Terminal surface Tin/Lead (Sn/Pb)
Converter Problems
[p=18, null, left][color=rgb(0, 0, 0)][font=Verdana][size=4]【1】In current-type or voltage-type PWM rectifiers, we often talk about the high-frequency component or low-frequency component in the switch...
shaorc Integrated technical exchanges
2.4g to USB can be used as a wireless mouse. There are pictures and programs for everyone to learn together.
Thanks for sharing! Is the chip you use from TI's CC series? I'm curious about the package. I think the package should be available in large quantities....
xgl_1982 stm32/stm8
Three Key Points to Successfully Solving FPGA Design Timing Problems
Three Key Points to Successfully Solving FPGA Design Timing Problems...
zxopenljx FPGA/CPLD
How much do you know about Type-C headphones?
How much do you know about Type-C headphones? I just heard about this kind of headphones....
tgw2012 PCB Design
[CY8CKIT-149 PSoC 4100S Review] + Software Installation and Program Download
[i=s]This post was last edited by DDZZ669 on 2018-11-21 18:19[/i] [md]## Software Installation According to the [CY8CKIT-149 User Manual]([url=https://bbs.eeworld.com.cn/forum.php?mod=attachment&aid=M...
DDZZ669 MCU
[Project source code] Modify waveform display color based on FPGA Modelsim
This article and design code were written by FPGA enthusiast Xiao Meige. Without the author's permission, this article is only allowed to be copied and reproduced on online forums, and the original au...
小梅哥 FPGA/CPLD

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1739  1332  415  1343  2863  36  27  9  28  58
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
