BC868-10: DescriptionSmall Signal Bipolar Transistor, 20V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size99KB，3 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

BC868-10 Overview

Small Signal Bipolar Transistor, 20V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3

BC868-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	85
JESD-30 code	R-PSSO-F3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	40 MHz

Preview

Download Datasheet

View All

MCC

TM

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BC868

BC868-10/16/25

0.5W

NPN Medium

Power Transistors

Features

•

High current

Low voltage

Case Material: Molded Plastic.

Classification Rating 94V-0

UL Flammability

Electrical Characteristics @ 25

O

C Unless Otherwise Specified

Symbol

Parameter

Collector-Base Breakdown Voltage

(I

C

=100uAdc, I

E

=0)

Collector-Emitter Breakdown Voltage

(I

C

=1mAdc, I

B

=0)

Emitter-Base Breakdown Voltage

(I

E

=100uAdc, I

C

=0)

Collector Cutoff Current

(V

CB

=25c, I

E

=0)

Emitter Cutoff Current

(V

EB

=5.0Vdc, I

C

=0)

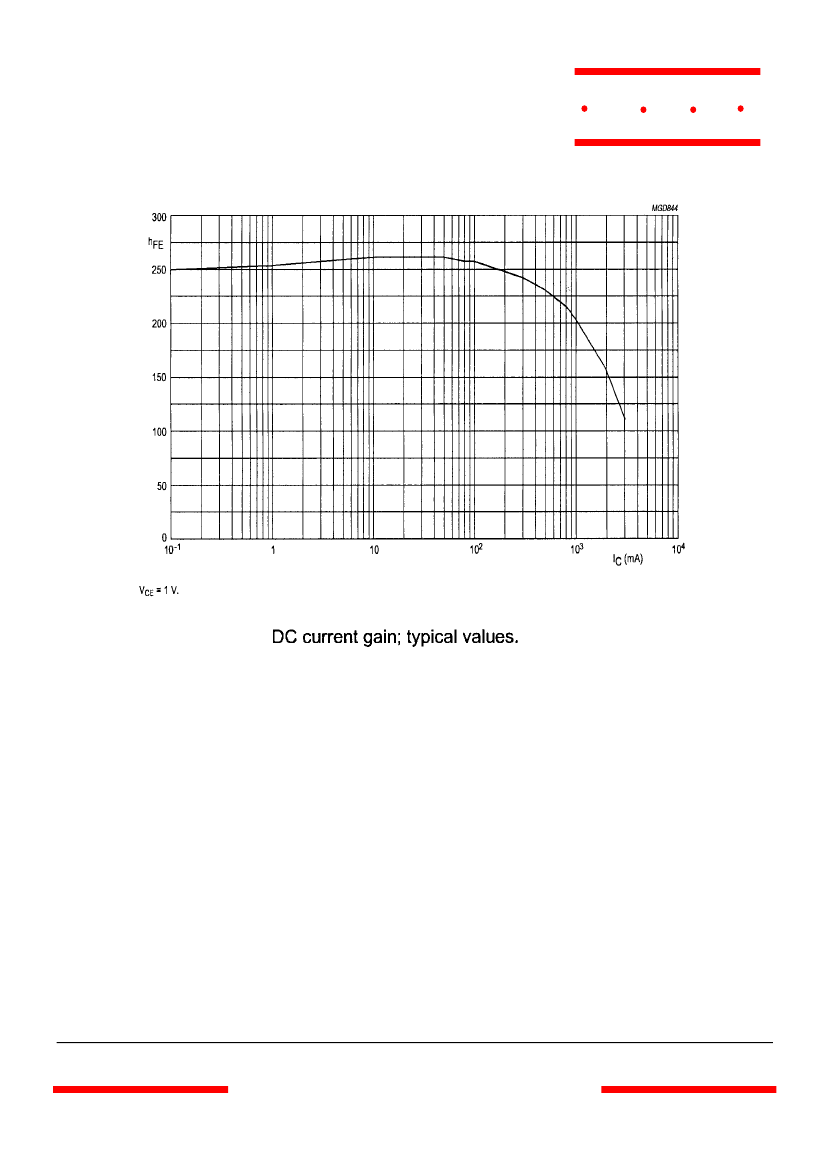

DC Current Gain

(I

C

=50mAdc, V

CE

=1.0Vdc)

DC Current Gain

(I

C

=1Adc, V

CE

=1.0Vdc)

DC Current Gain

(I

C

=5mAdc , V

CE

=10Vdc)

Collector-Emitter Saturation Voltage

(I

C

=1Adc, I

B

=100mAdc)

Base-Emitter On Voltage(1)

( I

C

=5mAdc, V

CE

=10Vdc )

Base-Emitter On Voltage(2)

( I

C

=1dc, V

CE

=1Vdc )

Transition Frequency

(I

C

=10mAdc, V

CE

=5Vdc, f=100MHZ)

Min

32

20

5.0

---

Max

---

0.1

Units

Vdc

uAdc

SOT-89

A

B

K

OFF CHARACTERISTICS

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

EBO

E

C

D

G

F

H

J

ON CHARACTERISTICS

h

FE(1)

h

FE(2)

h

FE(3

V

CE(sat)

V

BE(on)

V

BE(on)

85

60

50

---

375

---

0.5

0.62

(Typ)

1

---

Vdc

1

2

3

1.

BASE

2.

COLLECTOR

3.

EMITTER

SMALL-SIGNAL CHARACTERISTICS

f

T

40

---

MHz

CLASSIFICATION OF H

FE (1)

Rank

Range

Marking

BC868

85-375

CAC

BC868-10

85-160

CBC

BC868-16

120-200

CCC

BC868-25

160-375

CDC

www.mccsemi.com

Revision: 5

1 of 3

2007/03/01
