53-0063 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 53-0063

53-0063: DescriptionSmall Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size37KB，1 Pages; ManufacturerMinireel Components

Download Datasheet Parametric Compare View All

53-0063 Overview

Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon

53-0063 Parametric

Parameter Name	Attribute value
Maker	Minireel Components
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.3 A
Collector-emitter maximum voltage	30 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	10000
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	125 MHz

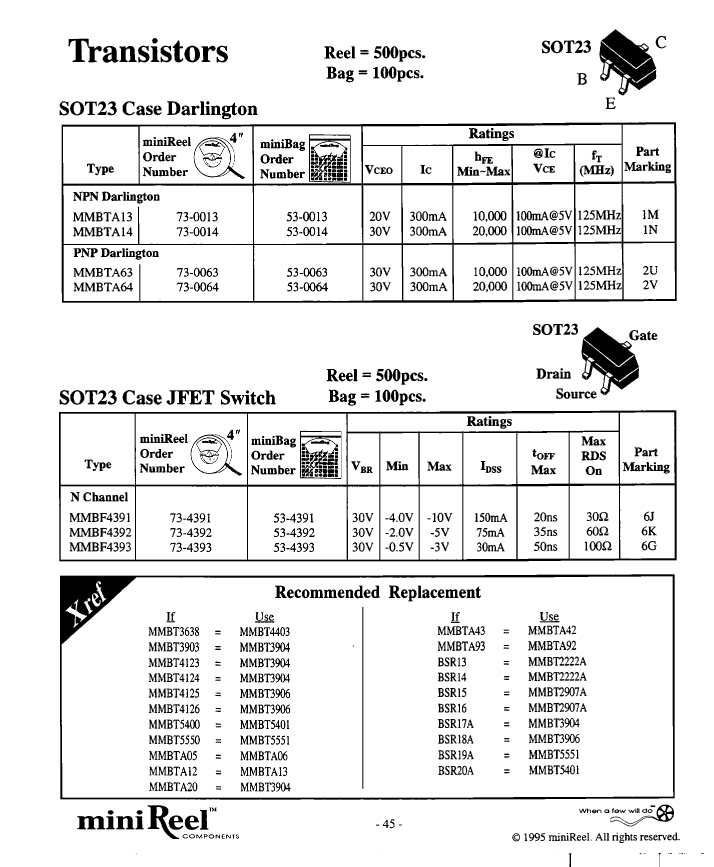

Preview

Download Datasheet

View All

53-0063 Related Products

	53-0063	73-4392	53-4392	73-4393	73-0063	73-4391	53-4391	53-0064	73-0064	53-4393
Description	Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET	Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET	Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	DARLINGTON	SINGLE	SINGLE	SINGLE	DARLINGTON	SINGLE	SINGLE	DARLINGTON	DARLINGTON	SINGLE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	N-CHANNEL	N-CHANNEL	N-CHANNEL	PNP	N-CHANNEL	N-CHANNEL	PNP	PNP	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	Minireel Components	Minireel Components	Minireel Components	-	-	-	Minireel Components	Minireel Components	Minireel Components	Minireel Components
Maximum drain-source on-resistance	-	60 Ω	60 Ω	100 Ω	-	30 Ω	30 Ω	-	-	100 Ω
FET technology	-	JUNCTION	JUNCTION	JUNCTION	-	JUNCTION	JUNCTION	-	-	JUNCTION
Operating mode	-	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	-	DEPLETION MODE	DEPLETION MODE	-	-	DEPLETION MODE
transistor applications	-	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	-	-	SWITCHING
