BX6661 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX6661

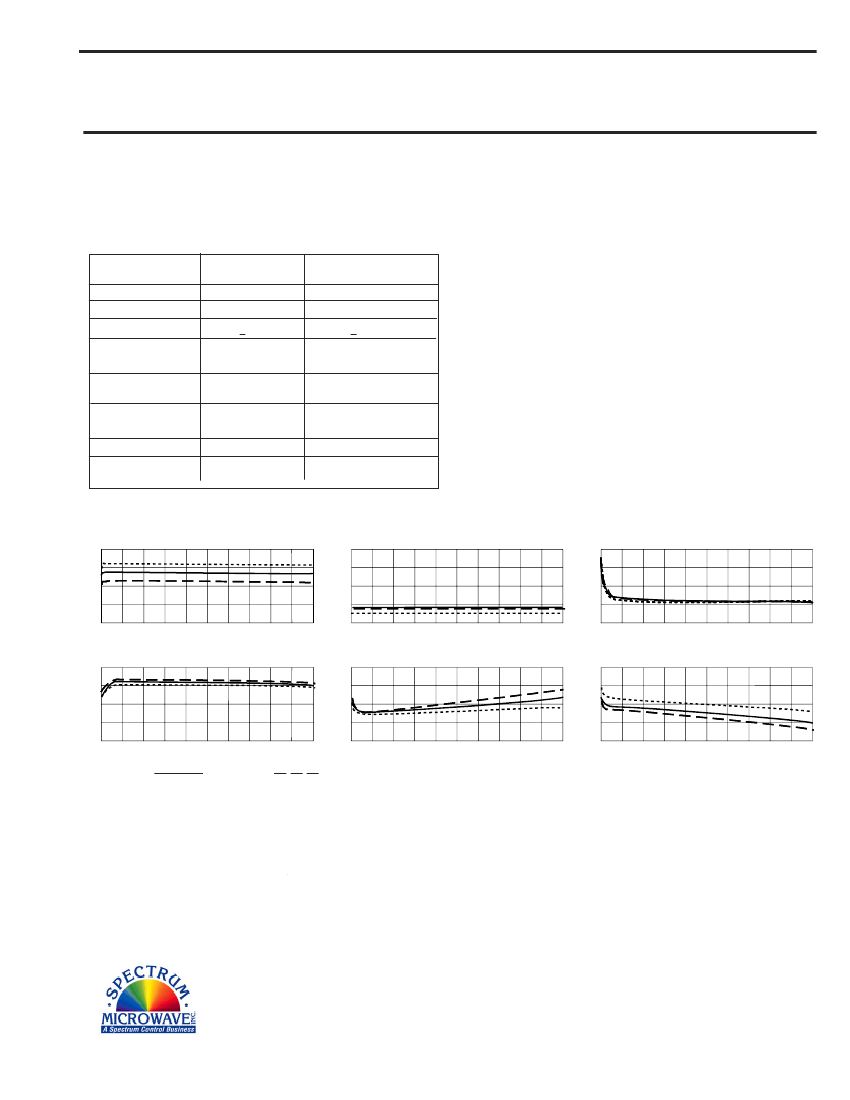

Preview

BX6661: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size45KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BX6661 Overview

RF AMPLIFIER MODEL

BX6661 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	H1
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	12 dB
Maximum input power (CW)	16 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6661

Features

!

High Output Power: +27 dBm Typical

!

GaAs FET Design

!

Environmental Screening Available

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Gain Flatness (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

TYPICAL

Ta= 25 ºC

10 - 700 MHz

13.5

+0.3

+27

-20

<1.5:1

<1.7:1

5.0

+15

175

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 500 MHz

12.0 Min.

+0.7 Max.

+24.5 Min.

-19 Max.

1.8:1 Max.

2.0:1 Max.

7.0 Max.

+15

185 Max.

Available as:

TM6661, 4 Pin TO-8 (T4)

TN6661, 4 Pin Surface Mount (SM3)

FP6661, 4 Pin Flatpack (FP4)

BX6661, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +54 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +48 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +41 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +17 Volts

Continuous RF Input Power .................................. +15 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

15

14

13

12

11

Start 10 MHz

Stop 700 MHz

Gain (dB)

- 17

- 18

- 19

- 20

-21

Start 10 MHz

Reverse Isolation (dB)

9

7

5

3

1

Stop 700 MHz

Start 10 MHz

Noise Figure (dB)

Stop 700 MHz

+29

+28

+27

+26

+25

1 dB Compression (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 700 MHz

Start 10 MHz

Stop 700 MHz

Start 10 MHz

Stop 700 MHz

Legend

+ 25 ºC

+85 ºC

Linear S-Parameters

- - - - - - -55 ºC

Freq.

----S11----

----S22----

----S21----

----S12----

Mag

Deg

Mag

Deg Mag

Deg

Mag

Deg

MHz

===============================================================

4.70

-58

.17

147

.25

13

.1017

-166

10

4.76

-50

.10

155

.20

6

.1026

-175

20

4.77

-40

.08

160

.19

3

.1023

-178

30

4.77

-34

.08

161

.18

3

.1042

179

40

4.77

-36

.08

162

.18

1

.1025

178

50

4.78

-34

.07

159

.17

-4

.1029

171

100

4.76

-54

.08

147

.17

-8

.1022

160

200

4.74

-68

.09

134

.16

-14

.1038

149

300

4.66

-84

.10

115

.15

-19

.1021

138

400

4.64

-97

.11

101

.14

-24

.0999

128

500

4.56

-106

.12

85

.13

-29

.1015

117

600

4.51

-118

.13

70

.12

-36

.0997

107

700

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

12/15/08

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BX6661 Related Products

	BX6661	FP6661	TM6661	TN6661
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
package instruction	H1	MODULE,4LEAD,.5SQ	CAN4,.3	SM3, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	compliant	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	12 dB	12 dB	12 dB	12 dB
Maximum input power (CW)	16 dBm	16 dBm	16 dBm	16 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Number of functions	-	1	1	1
Number of terminals	-	4	4	4
Package body material	-	METAL	METAL	METAL
Encapsulate equivalent code	-	MODULE,4LEAD,.5SQ	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	-	15 V	15 V	15 V
Maximum slew rate	-	185 mA	185 mA	185 mA
