FP6609: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6609 Overview

RF AMPLIFIER MODEL

FP6609 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6609

Features

High Output Power: +22 dBm Typical

24 Volt Operation

Available as:

TM6609, 4 Pin TO-8 (T4)

TN6609, 4 Pin Surface Mount (SM3)

FP6609, 4 Pin Flatpack (FP4)

BX6609, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +46 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 500 MHz

11.5

+22

-15

<1.5:1

5.5

+24

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

10.0 Min.

+20.0 Min.

-14 Max.

2.0:1 Max.

7.0 Max.

+24

95 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 27 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

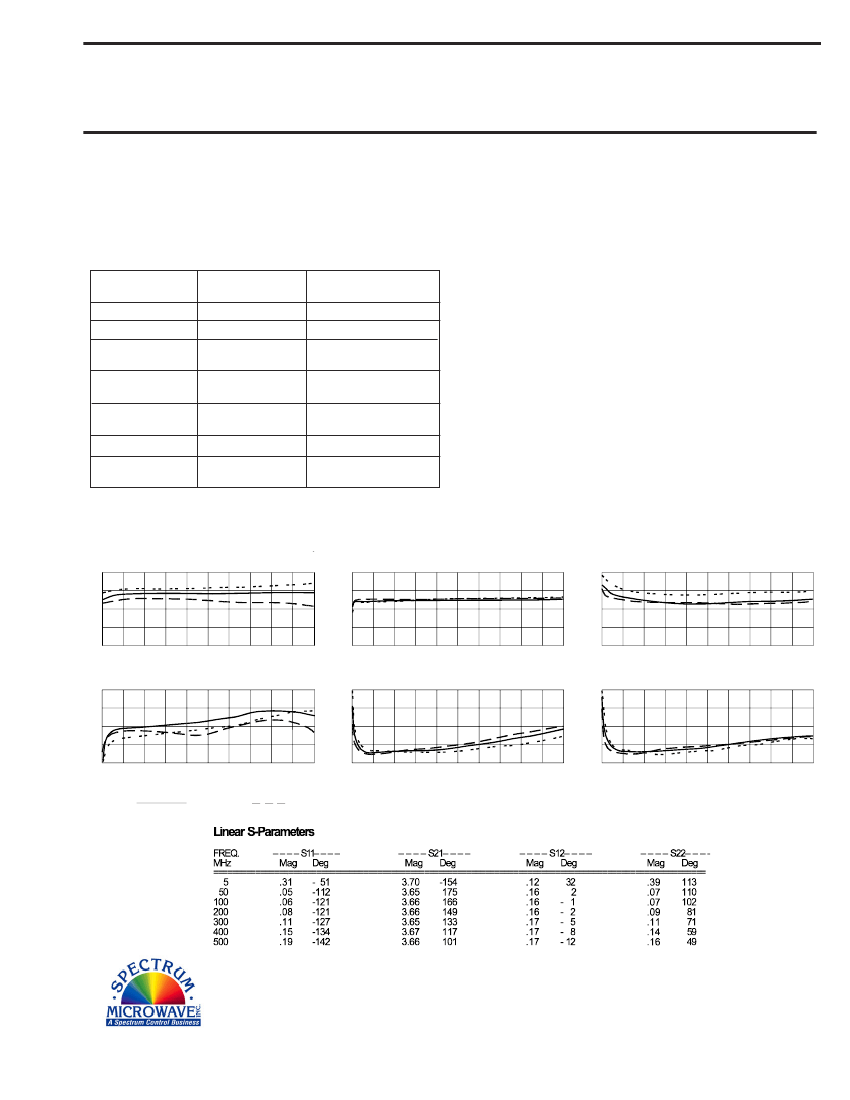

Typical Performance Data

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Noise Figure (dB)

Start 5 MHz

Stop 500 MHz

+24

+23

+22

+21

+20

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

11/16.04

www.spectrummicrowave.com
