RF AMPLIFIER
MODEL
TM6615
Features
n
Output Power: +15.5 dBm Typical
n
Operating Temp. -55 ºC
to +85
ºC
n
Environmental Screening Available
Available as:
TM6615, 4 Pin TO-8 (T4)
FP6615, 4 Pin Flatpack (FP4)
TN6615, 4 Pin .450” Sq. Surface Mount (SM3)
BX6615, SMA Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ..... +48 dBm (Typ.)
Second Order Two Tone Intercept Point ...... +42 dBm (Typ.)
Third Order Two Tone Intercept Point .......... +30 dBm (Typ.)
MIN/MAX
Ta = -55
ºC
to +85
ºC
5 - 500 MHz
8.5 Min.
+14.0 Min
-14 Max.
2.0:1 Max.
2.0:1 Max.
7.0 Max.
+15
55 Max.
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
TYPICAL
Ta= 25
ºC
5 - 500 MHz
10
+15.5
-15.5
1.5:1
1.5:1
5.5
+15
50
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power ................... 0.5 Watt (3
µsec
Max.)
Thermal Resistance
θ
jc
..................
19.68 ºC/watt
Noise Figure (dB)
Power
Vdc
mA
Note: Care should always be taken to effectively ground the case of each unit.
Revision 12/2/2013

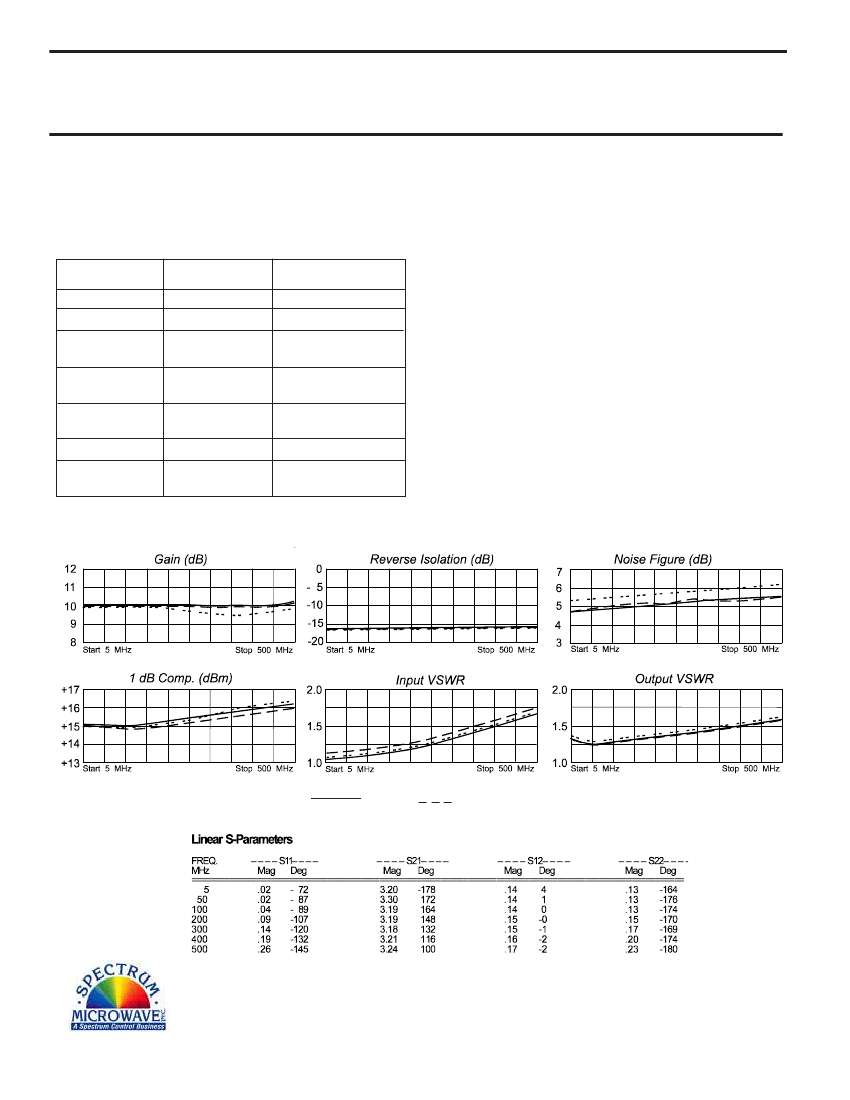

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
