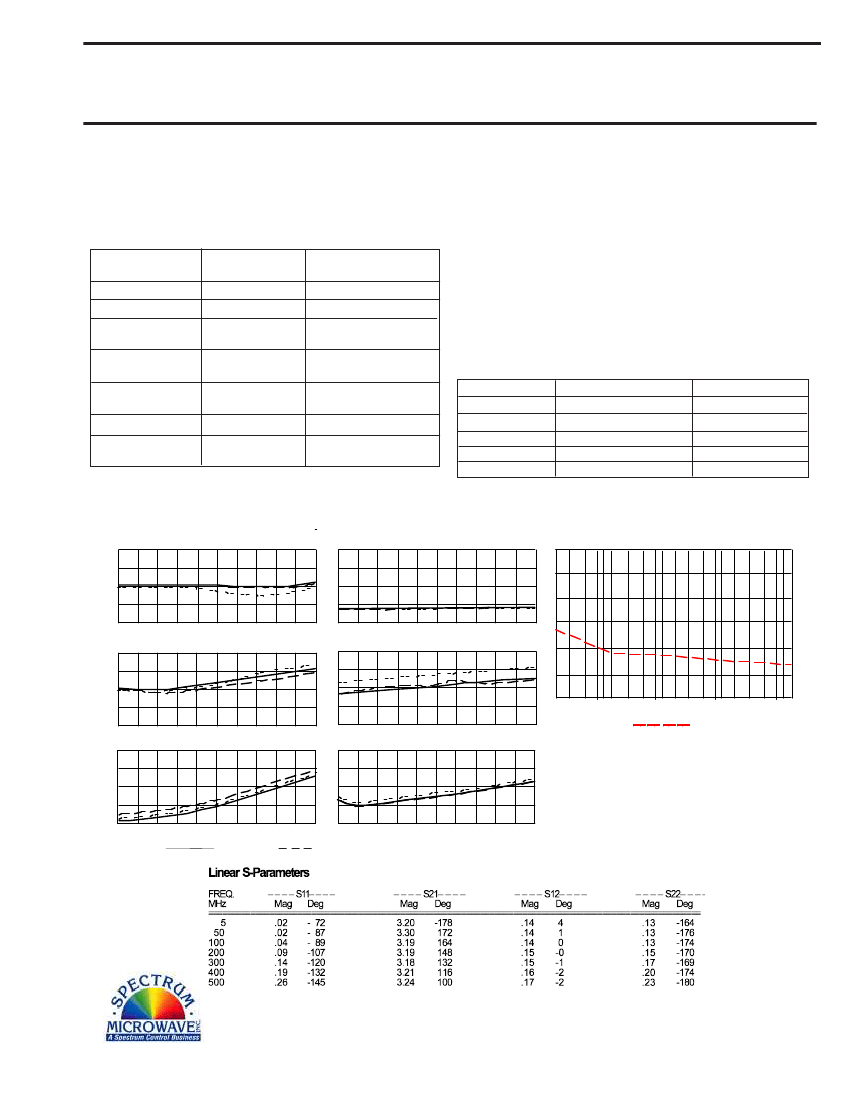

RF AMPLIFIER
MODEL
TM6615PM
Features
n
Superior Phase Noise Performance
n
Output Power: +15.5 dBm Typical
n
Operating Temp. -55 ºC to +85 ºC
Available as:
TM6615PM, 4 Pin TO-8 (T4)
TN6615PM, 4 Pin .450” Sq. Surface Mount (SM3)
FP6615PM, 4 Pin Flatpack (FP4)
BX6615PM, SMA Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ....... +48 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +42 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)
Absolute Maximum (No Damage) Ratings
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise Figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25 ºC
5 - 500 MHz
10
+15.5
-15.5
1.5:1
1.5:1
5.5
+15
50
MIN/MAX
Ta = -55 ºC to +85 ºC
5 - 500 MHz
8.5 Min.
+14.0 Min
-14
2.0:1 Max.
2.0:1 Max.
7.0 Max.
+15
55 Max.
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Thermal Resistance
θ
19.68 ºC/watt
jc
..................
Note: Care should always be taken to effectively ground the case of each unit.
Revision 12/3/2013
Guaranteed @
25 ºC
(200 MHz) Phase Noise Performance
(dBc/Hz)
*
Frequency
Typical
Guarantee (Min.)
-163
-159
100 Hz
1 kHz
-168
-172
-173
-169
10 kHz
100 kHz
-171
-175
1 MHz
-171
-175
*Note: Phase Noise Performance typically tested at midband.
Bandedge performance may vary.
Typical Performance Data
12
11
10
9
8
+17
+16
+15
+14
+13
2.0
1.5
1.0
Start 5 MHz
Start 5 MHz
Stop 500 MHz
Gain (dB)
0
- 5
-10
-15
-20
Reverse Isolation (dB)
-130
-140
- 150
- 160
Sta rt 5 MH z
Stop 500 MH z
- 170
- 180
-190
100
Start 5 MHz
Stop 500 MH z
Phase Noise (dBc/Hz)
1 dB Comp. (dBm)
7
6
5
4
3
Noise Figure (dB)
1K
10K
100K
1M
Typical
Input VSWR
Stop 500 MHz
2.0
1.5
1.0
Output VSWR
Phase Noise Test Conditions:
Carrier Frequency: 200 MHz
Power Output: +15.5 dBm
Temperature: 25 ºC
Agilent ES5500 System
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
