FP6659PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size86KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6659PM Overview

RF AMPLIFIER MODEL

FP6659PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	9 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	700 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

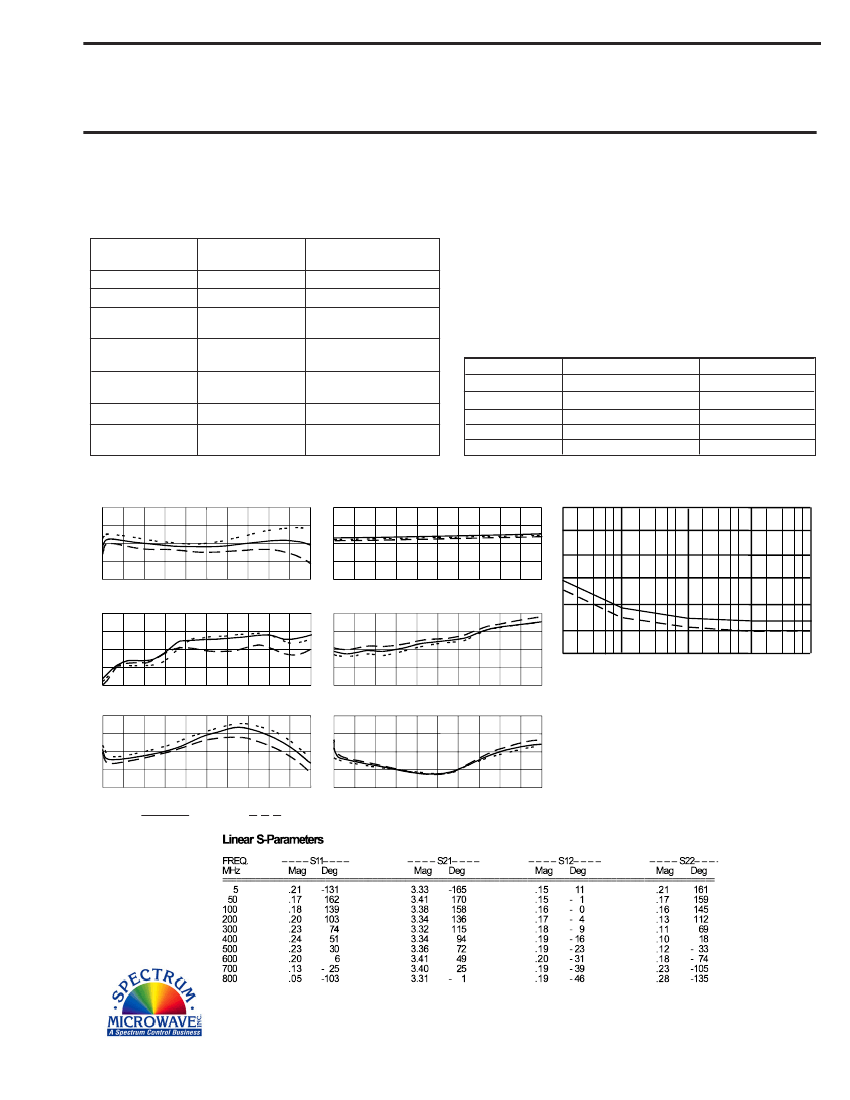

RF AMPLIFIER

MODEL

TM6659PM

Features

!

Superior Phase Noise Performance

High Output Power: +22 dBm Typical

High Third Order Intercept: +36 dBm Typical

Operating Temp. -55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

5 - 800 MHz

10.5

+22

-14

<1.75:1

<1.5:1

6.5

+15

88

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 700 MHz

9.0 Min.

+20 Min.

-13 Max.

2.0:1 Max.

8.0 Max.

+15

95 Max.

Available as:

TM6659PM, 4 Pin TO-8 (T4)

TN6659PM, 4 Pin Surface Mount (SM3)

FP6659PM, 4 Pin Flatpack (FP4)

BX6659PM,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +46 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-165

-175

-179

-180

Guarantee (Min.)

-161

-171

-175

-176

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise Figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

11.5

11

10.5

10

9.5

Start 5 MHz

Stop 800 MHz

Reverse Isolation (dB)

0

-10

-20

-30

-40

Start 5 MHz

Stop 800 MHz

-160

-130

-140

-150

Phase Noise (dBc/Hz)

1 dB Comp. (dBm)

+24

+23

+22

+21

+20

Start 5 MHz

Stop 800 MHz

Noise Figure (dB)

8

7

6

5

4

Start 5 MHz

Stop 800 MHz

-170

-180

-190

100

1K

10K

100K

1M

_________Guarantee __ __ __ __Typical

Input VSWR

Output VSWR

2.0

1.5

1.0

2.0

1.5

1.0

Start 5 MHz

Stop 800 MHz

Phase Noise Test Conditions:

Carrier Frequency: 600 MHz

Power Output: +21 dBm

Temperature: 25 ºC

Agilent ES5500 System

Start 5 MHz

Stop 800 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6659PM Related Products

	FP6659PM	BX6659PM	TM6659PM	TN6659PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	700 MHz	700 MHz	700 MHz	700 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	-	API Technologies
