FP6677 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6677

FP6677: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6677 Overview

RF AMPLIFIER MODEL

FP6677 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	600 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

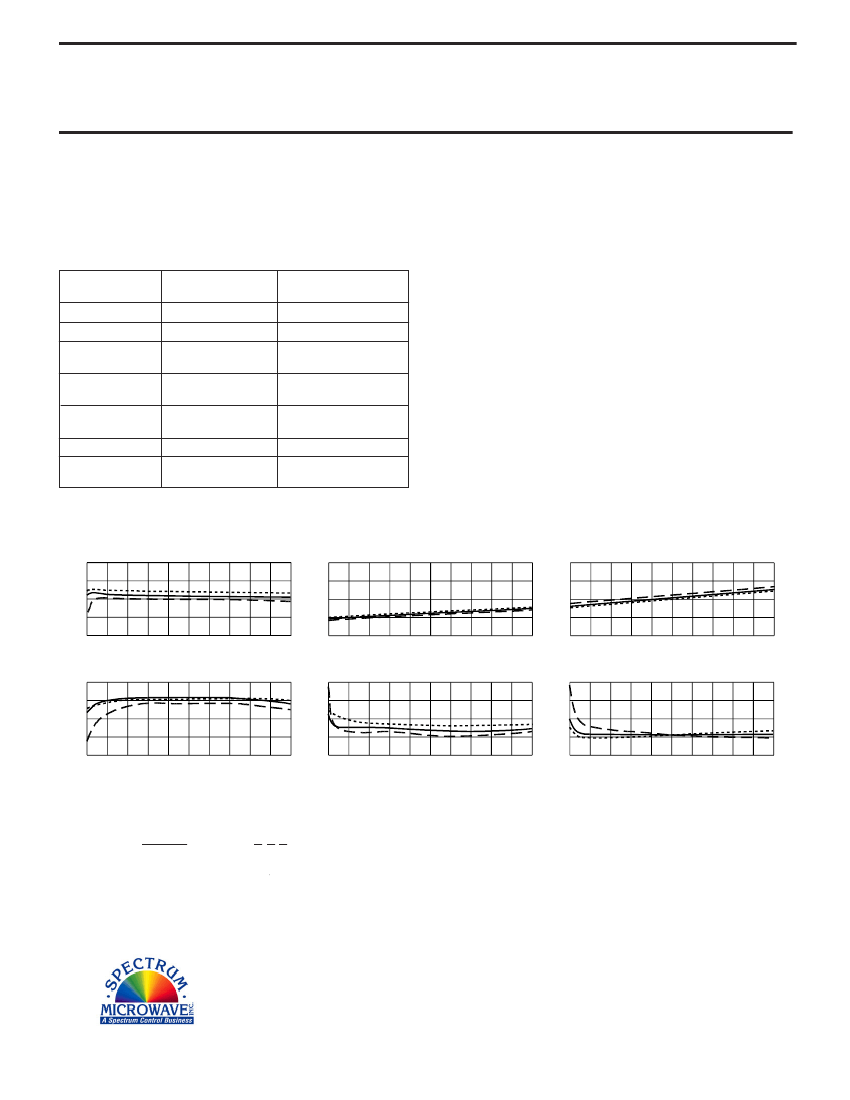

RF AMPLIFIER

MODEL

TM6677

Features

Output Power: +16.5 dBm Typical

High Third Order I.P.: +30 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6677, 4 Pin TO-8 (T4)

TN6677, 4 Pin Surface Mount (SM3)

FP6677, 4 Pin Flatpack (FP4)

BX6677, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +49 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +43 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 600 MHz

16.5

+16.5

-17

1.50:1

5.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 600 MHz

14.5 Min.

+14.5 Min.

-16 Max.

2.0:1 Max.

7.0 Max.

+15

56 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 600 MHz

Gain (dB)

- 5

- 10

- 15

- 20

- 25

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 600 MHz

Start 5 MHz

Stop 600 MHz

+18

+17

+16

+15

+14

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 600 MHz

Start 5 MHz

Stop 600 MHz

Start 5 MHz

Stop 600 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/12/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
