FP6683 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6683

FP6683: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size62KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6683 Overview

RF AMPLIFIER MODEL

FP6683 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	26.5 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6683

Features

High Gain: 34 dB Typical

Low Power Drain: 70 mW @ 5 Volts.

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6683, 4 Pin TO-8 (T4)

TN6683, 4 Pin Surface Mount (SM3)

FP6683, 4 Pin Flatpack (FP4)

BX6683, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +15 dBm (Typ.)

Second Order Two Tone Intercept Point ......... +9 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +10 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 250 MHz

-1

-47.5

<1.75:1

<2.0

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 250 MHz

32.5 Min.

-3 Min.

-45 Max.

2.0:1 Max.

3.0 Max.

16 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................ + 10 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

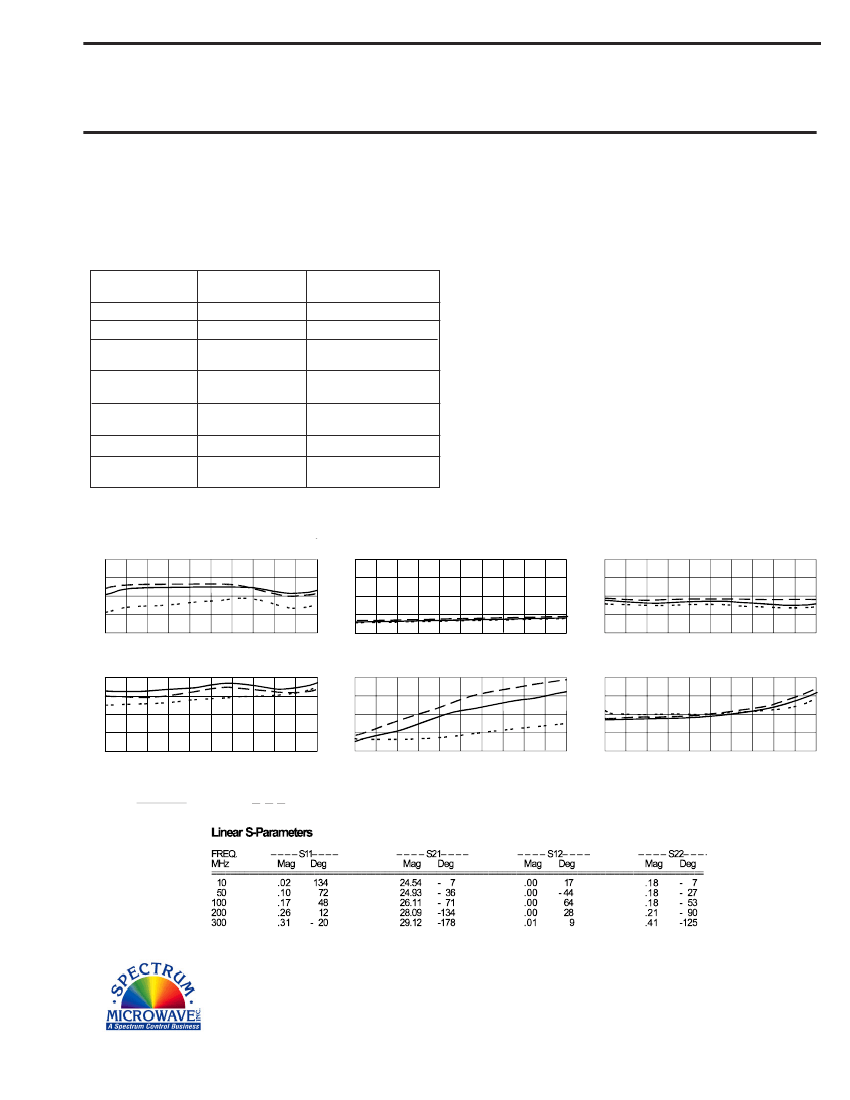

Typical Performance Data

Start 10 MHz

Stop 250 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Noise Figure (dB)

Start 10 MHz

Stop 250 MHz

Start 10 MHz

Stop 250 MHz

- 1

- 2

- 3

- 4

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 250 MHz

Start 10 MHz

Stop 250 MHz

Start 10 MHz

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/17/03

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6683 Related Products

	FP6683	BX6683	TM6683	TN6683
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	-
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	26.5 dB	26.5 dB	26.5 dB	-
Maximum input power (CW)	6 dBm	6 dBm	6 dBm	-
Maximum operating frequency	250 MHz	250 MHz	250 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
