RF AMPLIFIER
MODEL
TM6705
Features
!
!
!
!
High IP3: +37 dBm Typical
High Output Power: +20 dBm Typical
Bipolar Design
Environmental Screening Available
Available as:
TM6705, 4 Pin TO-8 (T4)
TN6705, 4 Pin Surface Mount (SM3)
FP6705, 4 Pin Flatpack (FP4)
BX6705, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point........+56 dBm (Typ.)
Second Order Two Tone Intercept Point.........+50 dBm (Typ.)
Third Order Two Tone Intercept Point............ +37 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
TYPICAL
Ta= 25 ºC
10 - 500 MHz
10.5
+20
-22
1.25:1
1.25:1
4.5
+15
62
MIN/MAX
Ta = -55 ºC to +85 ºC
10 - 500 MHz
9 Min./11 Max.
+18 Min.
-20 Max.
2.0:1 Max.
2.0:1 Max.
6.5 Max.
+15
70 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power.................... 0.5 Watt (3
µsec
Max.)
Noise Figure (dB)
Power
Vdc
mA
Note: Care should always be taken to effectively ground the case of each unit.

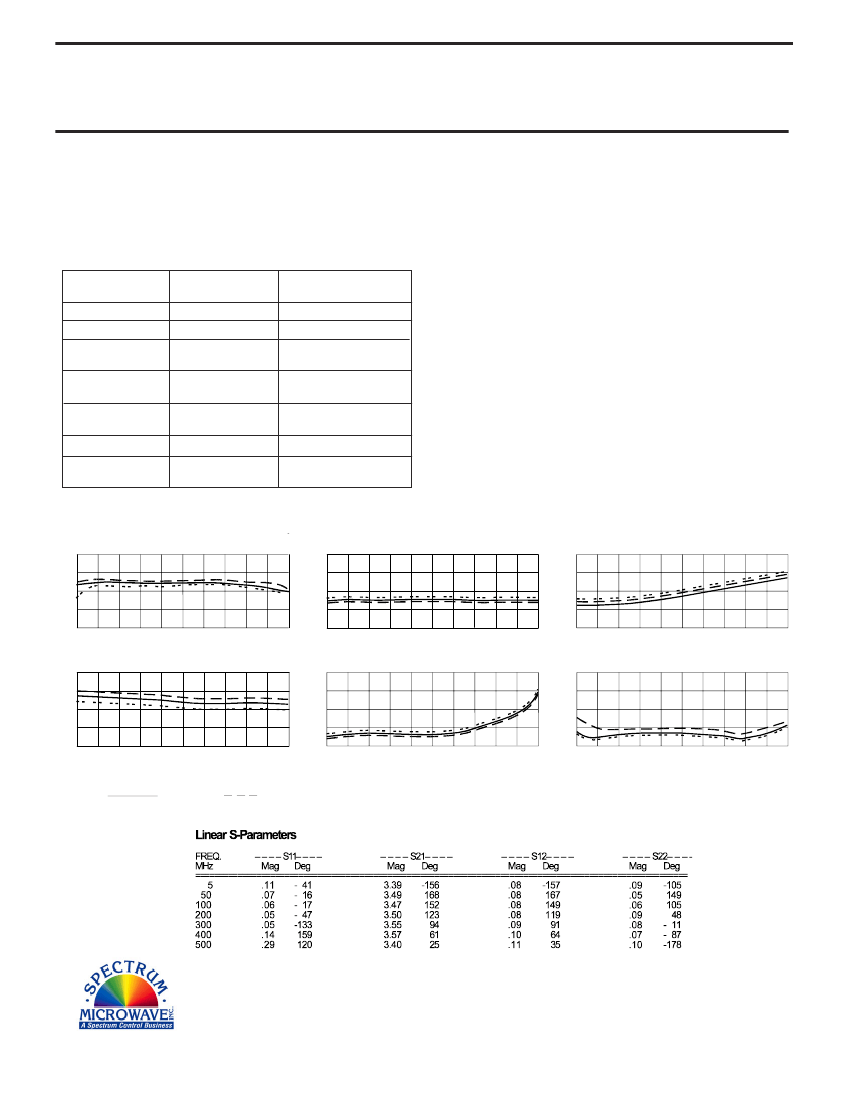

Typical Performance Data
Gain (dB)
12
11
10
9
8
Start 10 MHz
Stop 500 MHz
0
- 10
- 20
- 30
- 40
Reverse Isolation (dB)
7
6
5
4
3
Start 10 MHz
Stop 500 MHz
Start 10 MHz
Noise Figure (dB)
Stop 500 MHz
1 dB Comp. (dBm)
+22
+21
+20
+19
+18
Start 10 MHz
Stop 500 MHz
2.0
1.5
1.0
Start 10 MHz
Input VSWR
Output VSWR
2.0
1.5
1.0
Stop 500 MHz
Start 10 MHz
Stop 500 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
