FP7103: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size61KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP7103 Overview

RF AMPLIFIER MODEL

FP7103 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	25 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	150 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM7103

Features

High Gain: 26.5 dB Typical

Low Noise Figure: 2.3 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7103, 4 Pin TO-8 (T4)

TN7103, 4 Pin Surface Mount (SM3)

FP7103, 4 Pin Flatpack (FP4)

BX7103,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +34 dBm (Typ.)

Second Order Two Tone Intercept Point........ +28 dBm (Typ.)

Third Order Two Tone Intercept Point............ +23 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-150 MHz

26.5

+9.5

-31

1.40:1

2.3

15.5

MIN/MAX

Ta = -55 ºC to +85 ºC

5-150 MHz

25.0 Min.

+8.0 Min.

-30 Max.

2.0:1 Max.

2.75 Max.

+5 Min.

18 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

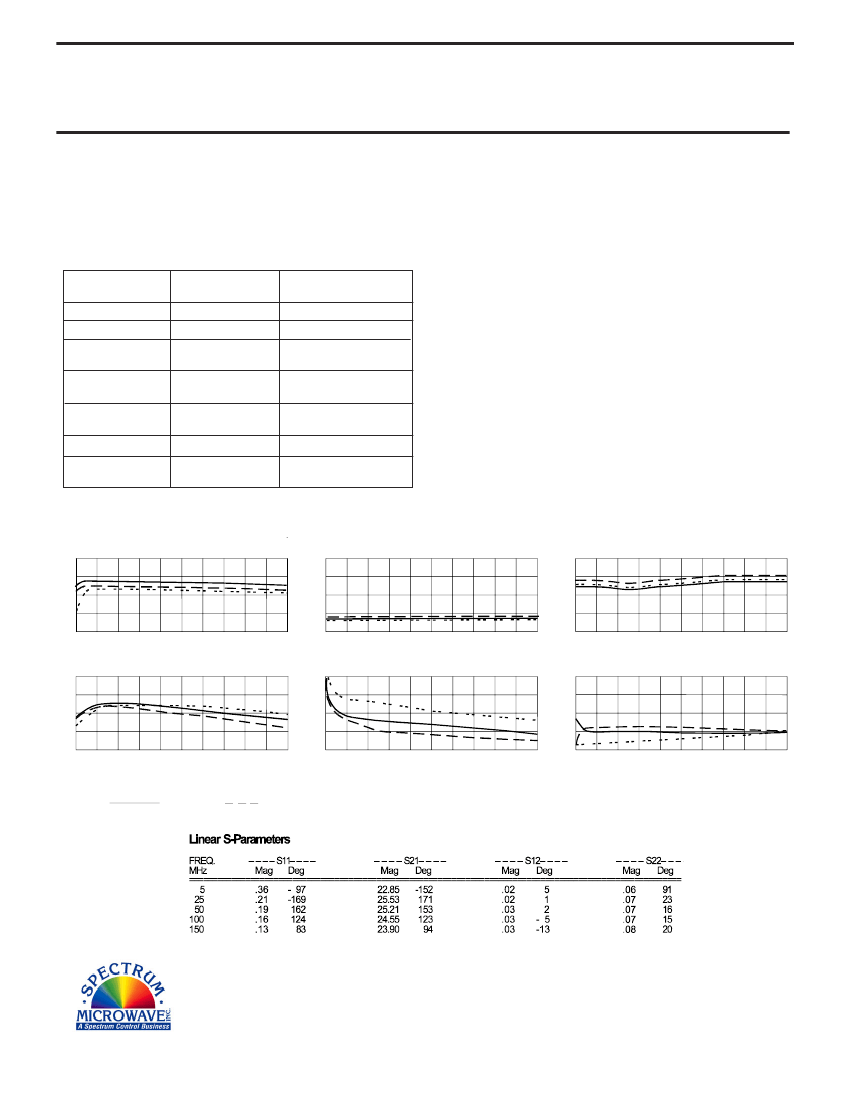

Typical Performance Data

Start 5 MHz

Stop 150 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation(dB)

Noise Figure (dB)

Start 5 MHz

Stop 150 MHz

Start 5 MHz

Stop 150 MHz

+11

+10

+ 9

+ 8

+ 7

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 5 MHz

Stop 150 MHz

Start 5 MHz

Stop 150 MHz

Start 5 MHz

Stop 150 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC
